Description

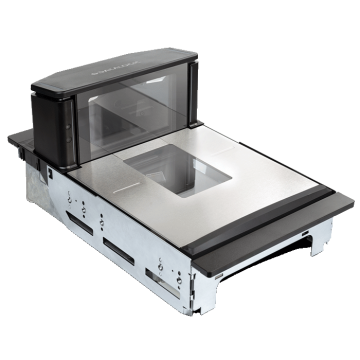

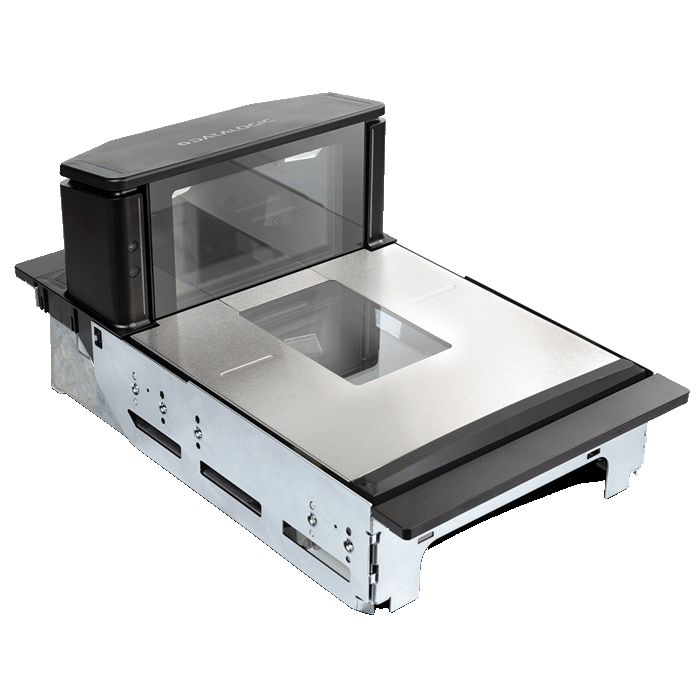

Revolutionise your checkout experience with the Datalogic Magellan™ 9600i, the most advanced in-counter imaging scanner and scale system available today. Designed for fast-paced retail environments, this scanner/scale features a long All-Weighs™ platter, fixed produce rail, and flange mount configuration for ultimate performance and versatility.
Powered by QuadVision™ imaging and an ultra-fast IMX8 multi-core processor, the 9600i delivers unmatched scanning precision, even with damaged or low-quality barcodes. The integrated ScaleSentry™ infrared detection system prevents misweighing by alerting users when items are placed incorrectly on the weighing platform.
Fully future-proofed, this device is AI-ready with optional dual colour cameras, neural processors, and Coral TPU acceleration for real-time machine learning tasks such as automatic item recognition and video analytics.
Whether it’s reducing shrink, improving throughput, or preparing for GS1 Digital Link adoption, the Magellan 9600i delivers a premium, scalable solution tailored to the future of retail.
Product Features
- QuadVision™ Technology – 4-camera imaging for ultra-fast and accurate scanning, including 5-sided barcode capture.
- AI-Ready Platform – Integrated neural processors, Coral TPU, and dual colour cameras enable future AI functions like produce recognition.
- ScaleSentry™ Shrink Prevention – Uses infrared beams to detect misplacement and avoid under-weighing.
- All-Weighs™ Platter – Extended weighing surface above bonnet supports oversized produce and bulk goods.
- Embedded Linux OS – Future-proof system with remote management, diagnostics, and developer tools.
- USB Powered Cable (USB POT) – Simplifies integration with powered USB POS systems.
- Modular Flange Mount Design – Easy installation into retail checkstands with a rugged fit and finish.
- EAS Integration – Built-in support for Checkpoint and Sensormatic deactivation systems.
- Capacitive Touch Controls – Smooth, cleanable surfaces ideal for hygienic retail environments.
- Multi-Interface Support – USB, RS-232, Ethernet, and powered USB interfaces supported.
Product Specifications
Attribute | Details |
Brand | Datalogic |
Model | Magellan™ 9600i (9621) |
Platter Type | Long All-Weighs™ with Fixed Produce Rail |
Mount Type | Flange Mount |
Interface | USB (POT cable), RS-232, Ethernet |
Scan Engine | 2D Area Imager (QuadVision™, 4 cameras) |
Processor | IMX8 Multi-Core with Embedded Linux |
Scale Type | Single Interval Scale |
Scale Capacity | 0 – 15.0 kg |
Min. Weight Increment | 0.005 kg |
Power Supply | 12V DC, 9.3W – US Std Brick & Cord Included |
ESD Protection | 25kV Air Discharge |
Temperature Range | Operating: 10°C to 40°C; Storage: -40°C to 70°C |
Humidity | 5%–95% (non-condensing) |
Environmental Compliance | EU RoHS, China RoHS, REACH |
Warranty | 1-Year Standard Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- Retail
- 1 Year
- New
