Description

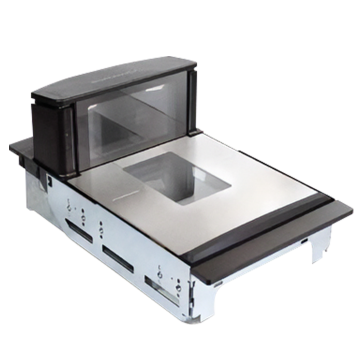

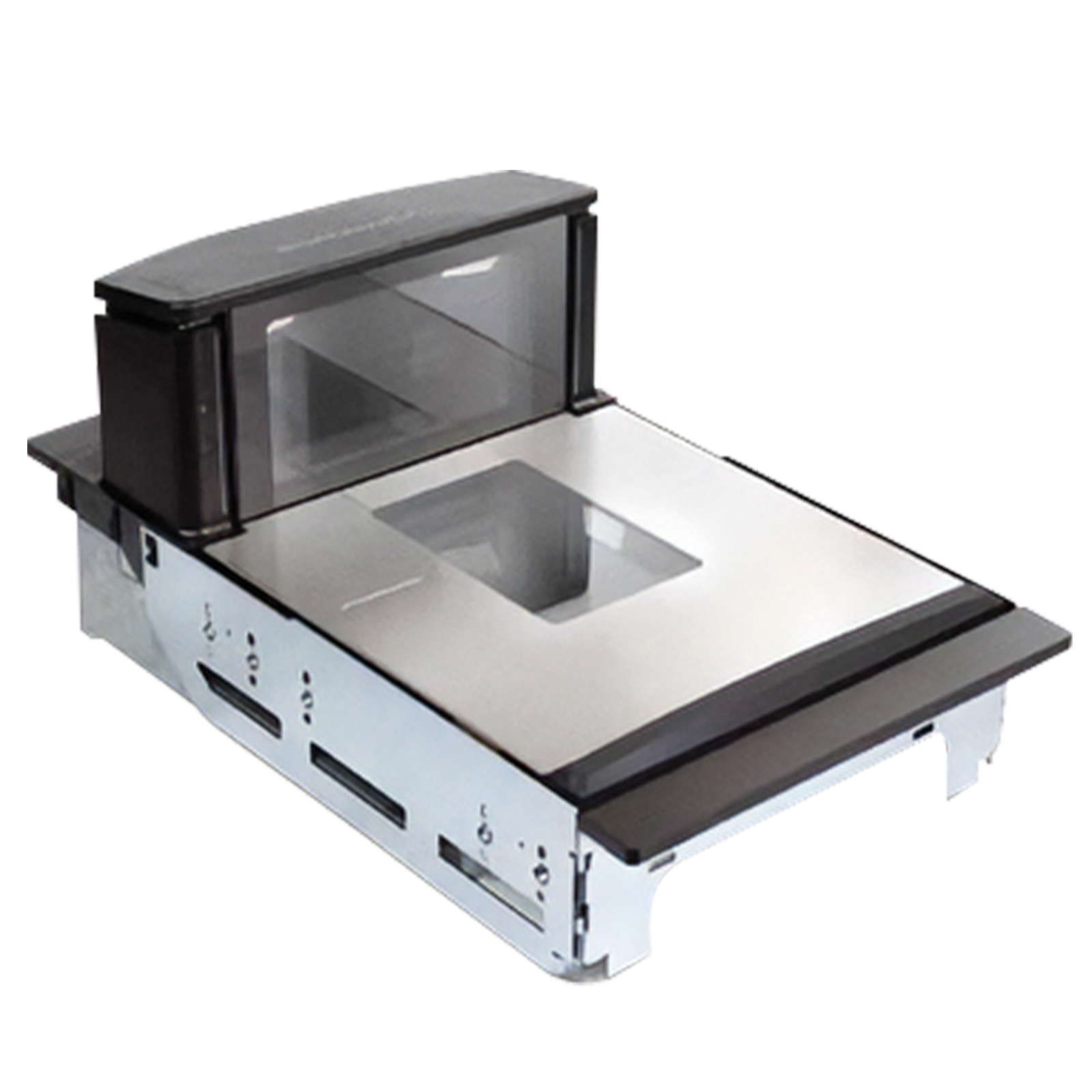

Unlock next-generation performance with the Datalogic Magellan™ 9600i, an advanced AI-ready in-counter scanner/scale built for the evolving demands of high-throughput retail. Featuring QuadVision™ 5-sided imaging, IMX8 multi-core processing, and integrated ScaleSentry™ loss prevention, this scanner delivers superior barcode reading accuracy—whether for fresh produce or challenging, damaged labels.
With USB powered cable connectivity, the Magellan 9600i seamlessly integrates into modern POS systems, offering optional AI upgrades, neural processors, and dual colour cameras for real-time loss prevention and produce recognition. The large All-Weighs™ scale platter, EU metric display, and fully sanitizable touch surfaces ensure ergonomic, accurate, and hygienic operation across assisted and self-checkout lanes.
Engineered with the future in mind, this model is optimised for GS1 Digital Link, Digimarc, and offers industry-first support for Tensor AI acceleration, eliminating the need for external servers at checkout. Whether in grocery, retail, or hospitality, the Magellan 9600i is the most advanced in-counter scanner in its class.
Product Features
- QuadVision™ Imaging: 5-sided scanning with 4 high-res cameras (2 vertical, 2 horizontal)
- Powerful IMX8 Multi-Core Processor: Delivers fast decoding and AI enablement
- USB Plus Power Cable: Simplifies installation with combined data and power
- ScaleSentry™ Technology: Infrared beams detect incorrect produce placement
- All-Weighs™ Platter: Extended weighing area across scale and bonnet
- AI-Ready Platform: Optional dual colour cameras, Coral TPU, and neural processors
- Supports GS1 Digital Link & Digimarc®: Future-ready barcode decoding
- Capacitive Touch Buttons: Hygienic, modern user interface for cashiers
- Customisable Mounting Options: Tailored for checkout stand flexibility
- Auxiliary Ports: USB Host, RS-232, Remote Display, EAS, and Ethernet
Product Specifications
Specification | Details |
Brand | Datalogic |
Model | Magellan 9600i |
Platter Size | Medium |
Produce Rail | Fixed |
Mount Type | Shelf Mount |
Connectivity | USB Plus Power (USB POT Cable) |
Display | Included – EU Metric Display (Single Interval) |
Scan Engine | 2D Area Imager with QuadVision™ |
Operating Systems Supported | Windows 10, Linux, Android, IBM 4690 |
Power Requirements | 12 VDC, USB powered cable included |
Environmental Range | 10–40 °C (Operating), -40–70 °C (Storage) |
Regulatory Compliance | RoHS, REACH, CE, ESD 25kV |
Warranty | 1-Year Standard Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- Retail
- 1 Year
- New
