Description

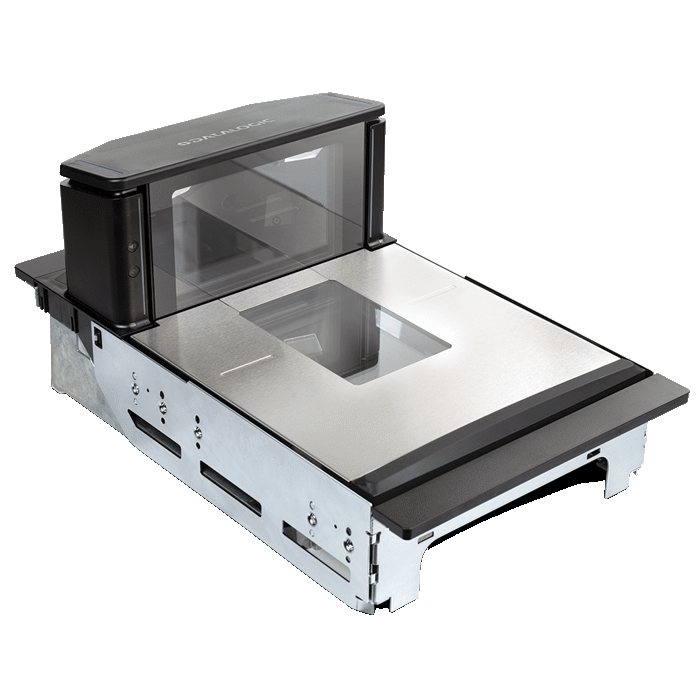

The Datalogic Magellan™ 9600i is a premium in-counter imaging scanner and scale purpose-built for high-throughput retail environments such as supermarkets, convenience stores, and self-checkout kiosks. This model features a medium All-Weighs™ platter, flip-up produce rail, ScaleSentry™ loss prevention system, and dual interval metric weighing, all optimised for accuracy and speed at checkout.
At the heart of the 9600i is QuadVision™ technology—a multi-core IMX8 processor paired with four advanced cameras to deliver unprecedented barcode scanning performance, even on damaged or difficult labels. Designed for future retail innovations, this model supports AI-powered item recognition, GS1 Digital Link, Digimarc®, and neural processors for on-device processing—eliminating the need for cloud connectivity.
This EU configuration includes RS-232 standard cables, an EU-compliant power brick, and single customer display support, ensuring compatibility with existing POS systems and infrastructure across the UK and Europe.
Product Features
- QuadVision™ 4-Camera Imaging for 360° coverage and ultra-fast decoding, even on damaged barcodes.
- IMX8 Multi-Core Processor running embedded Linux for high-speed scanning and AI readiness.
- ScaleSentry™ Infrared Detection alerts users when produce is placed outside the active weighing area.
- Dual Interval Scale delivers metric accuracy of 0.002 kg to 0.005 kg for optimal precision.
- All-Weighs™ Medium Platter with flip-up produce rail for bulky items and ergonomic weighing.
- Multi-Interface RS-232 Connectivity with standard POS compatibility.
- AI-Ready Neural Processors & Coral TPU Support for future-proof machine learning applications.
- Smooth, Sanitisable Surfaces and capacitive touch buttons ensure hygienic daily use.
- Integrated EAS Antenna with SmartSentry™ support for theft detection.
- EU Power Brick & Cabling Included for seamless integration into UK/EU retail systems.
Product Specifications
Specification | Details |
Brand | Datalogic |
Model | Magellan™ 9600i |
Mount Type | Shelf Mount |
Platter Type | Medium All-Weighs™ with Flip-Up Produce Rail |
Scan Technology | 2D Area Imager (QuadVision™) – 4 Cameras |
Processor | IMX8 Multi-core with Embedded Linux |
Display Support | Single Customer Display |
Weight Scale Type | Dual Interval (0–6 kg @ 0.002 kg; 6–15 kg @ 0.005 kg) |
Power Supply | EU Power Brick – 100–240V AC, 50–60Hz |
Above Counter Height | 13.4 cm (5.3 in) |
Below Counter Depth | 10.2 cm (4 in) |
Unit Length/Width | 39.9 cm × 29.2 cm |
Max Scale Load | 15 kg (dynamic), 68 kg (static capacity) |
Environmental Range | Operating: 10–40°C; Humidity: 5–95%; ESD: 25kV |
Compliance | EU RoHS, REACH, GS1 Digital Link Ready |
Loss Prevention | ScaleSentry™, EAS Antenna, SmartSentry™ Ready |
Warranty | 1-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- Serial/RS232
- Midrange
- Grey
- General purpose
- Mid Level
- Retail
- 1 Year
- New
