Description

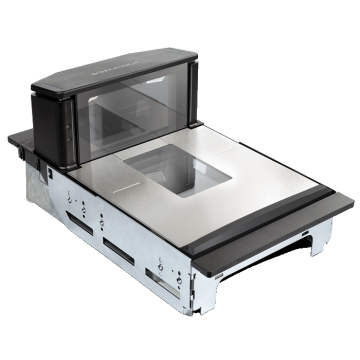

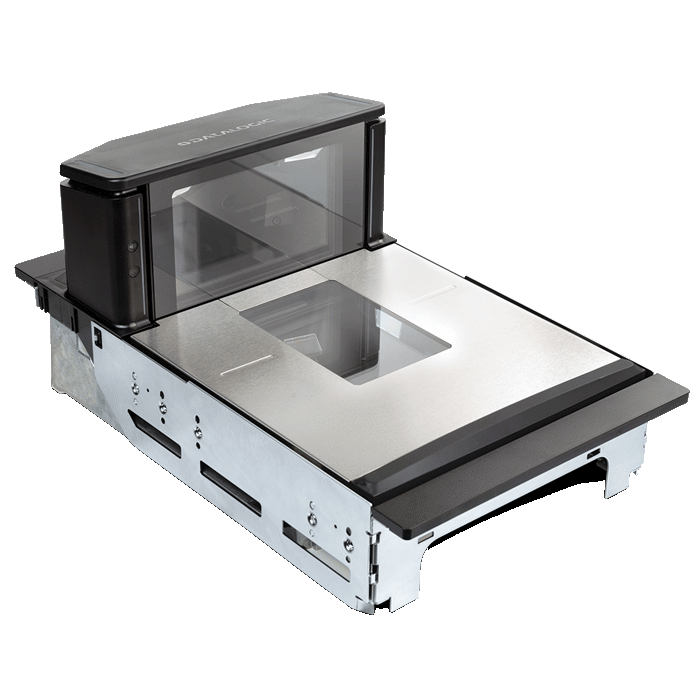

Transform your checkout experience with the Datalogic Magellan™ 9600i, the advanced imaging scanner/scale engineered for high-performance retail and future-ready POS integration. Featuring a medium-length platter, fixed produce rail, and shelf mount installation, this model is ideal for supermarkets and grocery chains that demand speed, accuracy, and scale-integrated scanning.
Powered by the QuadVision™ multi-core IMX8 processor, the Magellan 9600i utilises four cameras to capture five-sided barcode images for rapid, accurate decoding – even of damaged or low-quality barcodes. With RS-232 connectivity and USB 3.0 interface, this version is perfect for stores with legacy or hybrid POS systems.
The integrated ScaleSentry™ loss prevention system ensures produce is weighed correctly by alerting cashiers when items are misplaced. Meanwhile, the All-Weighs™ bonnet surface provides additional weighing space for longer items. Designed for seamless retail flow, the 9600i is also equipped to support AI-enhanced features, such as produce recognition and video analytics (via optional colour cameras and neural processors).
Product Features
- QuadVision™ Multi-Camera System – Four imagers deliver ultra-fast 1D/2D barcode decoding from any angle.
- RS-232 & USB 3.0 Connectivity – Compatible with modern and legacy POS systems with standard cable included.
- ScaleSentry™ Infrared Monitoring – Prevents shrinkage by detecting incorrectly placed produce.
- All-Weighs™ Platter – Weighs large items on top of the bonnet for maximum flexibility.
- AI-Ready Infrastructure – Supports optional Coral TPU neural processors and dual smart colour cameras.
- High-Speed Scanning – Optimised for GS1 Digital Link, Digimarc®, QR Code, PDF417, DataMatrix, and more.
- Durable, Cleanable Design – Capacitive touch buttons and smooth surfaces simplify cleaning in food retail.
- Custom Mounting Options – Shelf mount form factor with medium chassis length for tailored checkstand installation.
- Multi-OS Support – Compatible with Windows 10, Linux, Android, and IBM 4690 with OPOS and JavaPOS utilities.
- Optional EAS Integration – Built-in support for Checkpoint, Nedap, and Sensormatic deactivation systems.
Product Specifications
Attribute | Details |
Model | Magellan 9600i (Medium Platter, Shelf Mount) |
Processor | IMX8 Multi-Core, QuadVision™ |
Scan Engine | 2D Area Imager (4 Cameras: 2 Vertical, 2 Horizontal) |
Mount Type | Shelf Mount |
Scale Type | Single Interval |
Weighing Range | 0 – 15.0 kg (Minimum Increment: 0.005 kg) |
Form Factor | In-Counter / Fixed Produce Rail |
Bonnet Height | Tall Bonnet with All-Weighs™ Feature |
Platter Size | Medium (Length: 39.9 cm, Width: 29.2 cm) |
Above Counter Height | 13.4 cm (5.3 in) |
Power Input | 12 VDC (US Power Brick included, 100–240V AC input) |
AI Enablement (Optional) | Dual Colour Cameras, Neural Processor, Coral TPU |
Loss Prevention | ScaleSentry™, All-Weighs™, SmartSentry™ |
EAS Compatibility | Checkpoint, Nedap, Sensormatic |
Software Tools | Datalogic Aladdin™, Magellan SDK, Remote Management |
Warranty | 1-Year Standard |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- Serial/RS232
- Midrange
- Grey
- General purpose
- Mid Level
- Logistics/Warehouse
- 1 Year
- New
