Description

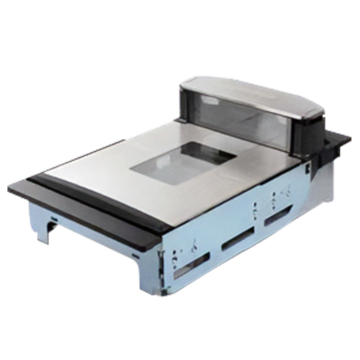

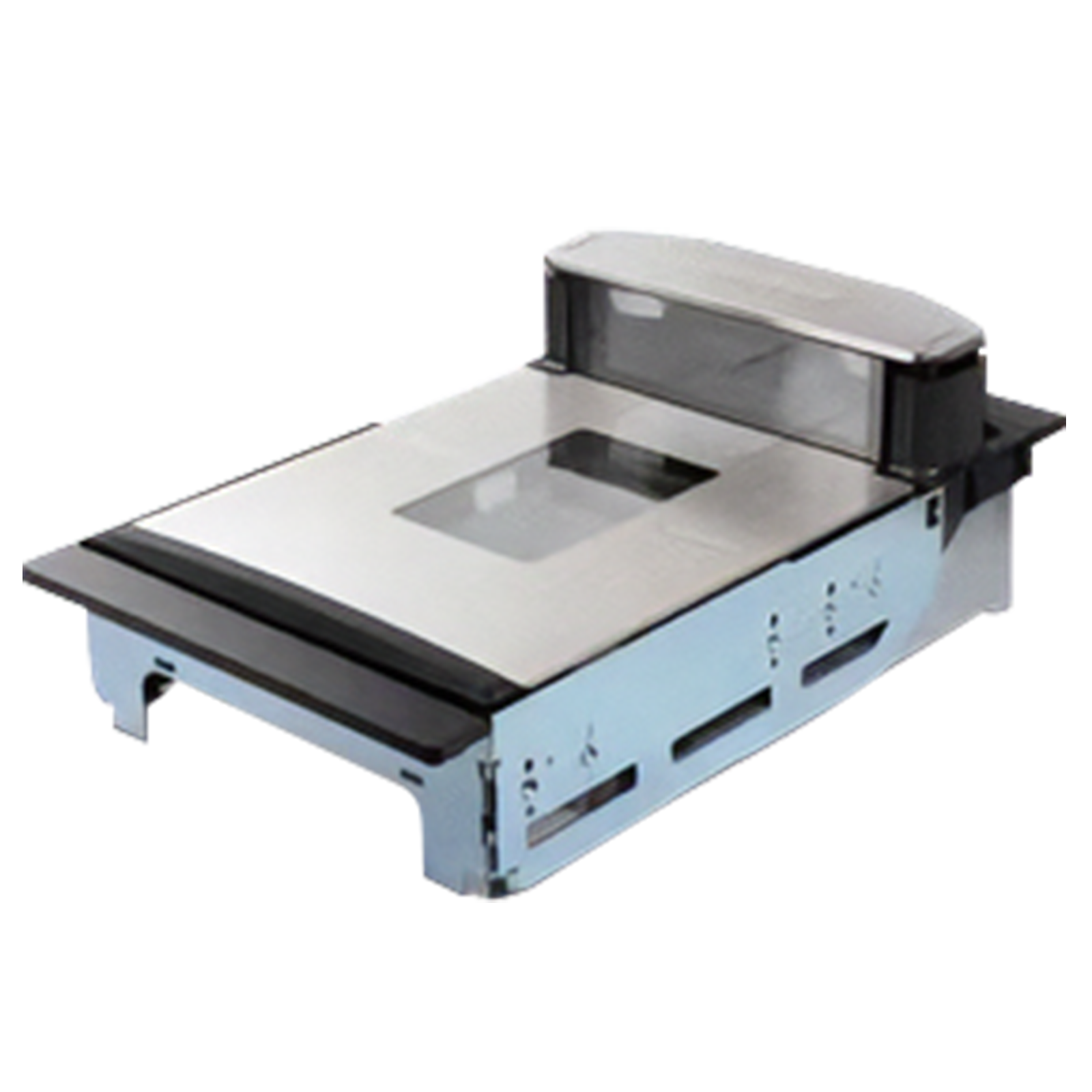

The Datalogic Magellan™ 9900i is a state-of-the-art in-counter barcode scanner engineered to meet the demands of high-throughput retail environments. This scanner-only model comes with a medium platter, fixed produce rail, and shelf mount design, offering seamless integration into traditional checkouts and self-checkout systems.
Adaptive scale-ready, it’s designed to connect with leading weighing systems such as DIGI, Mettler Toledo, Avery, and more. Powered by Datalogic’s QuadVision™ platform, the Magellan 9900i utilises four high-performance cameras and an IMX8 multi-core processor to scan 1D, 2D, and Digimarc® barcodes — even if they're damaged or poorly printed.
Featuring ScaleSentry™ loss prevention, it detects improperly placed items on the scale and alerts the cashier, preventing revenue loss. With support for GS1 Digital Link, USB, RS-232, IBM 46XX interfaces, and future-ready AI integrations, this scanner ensures unbeatable performance today and tomorrow.
Product Features
- In-counter scanner-only unit with medium platter and fixed produce rail
- Adaptive scale-ready – compatible with DIGI, Avery, Mettler Toledo & others
- Powered by QuadVision™ 4-camera system and IMX8 multi-core processor
- Supports 1D/2D/GS1/Digimarc®/QR and future barcode symbologies
- Infrared ScaleSentry™ system detects incorrect produce placement
- All-Weighs™ scale platter allows large or long produce to be accurately weighed
- Supports USB, RS-232, IBM 46XX, and optional Ethernet expansion
- Compatible with Windows 10, Linux, Android™, and IBM 4690 POS
- Designed for AI integrations like neural processors and Coral TPU
- Power supply and cables sold separately for flexible integration options
Product Specifications
Specification | Details |
Product Type | In-Counter Barcode Scanner (Scanner Only) |
Platter Size | Medium |
Produce Rail | Fixed Produce Rail |
Mount Type | Shelf Mount |
Processor | IMX8 Multi-Core (QuadVision™) |
Camera Configuration | 4 Cameras (2 Horizontal + 2 Vertical) |
Connectivity | USB, RS-232, IBM 46XX, optional Ethernet |
Power Requirement | 12 VDC (Power accessories sold separately) |
Loss Prevention Features | ScaleSentry™, All-Weighs™ Platter |
Operating Temp | 10°C to 40°C |
Storage Temp | -40°C to 70°C |
Humidity | 5 – 95% Non-Condensing |
ESD Protection | 25 kV Air Discharge |
Ambient Light Tolerance | 0 – 86,080 lux |
Environmental Compliance | EU RoHS, China RoHS, REACH Compliant |
Warranty | 1-Year Factory Warranty |
Features
- Wired
- Non-rugged
- Presentation
- 2D
- USB
- Midrange
- Grey
- General purpose
- Mid Level
- Retail
- 1 Year
- New
