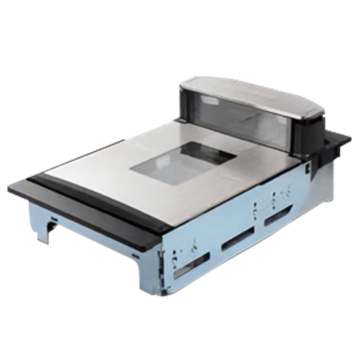

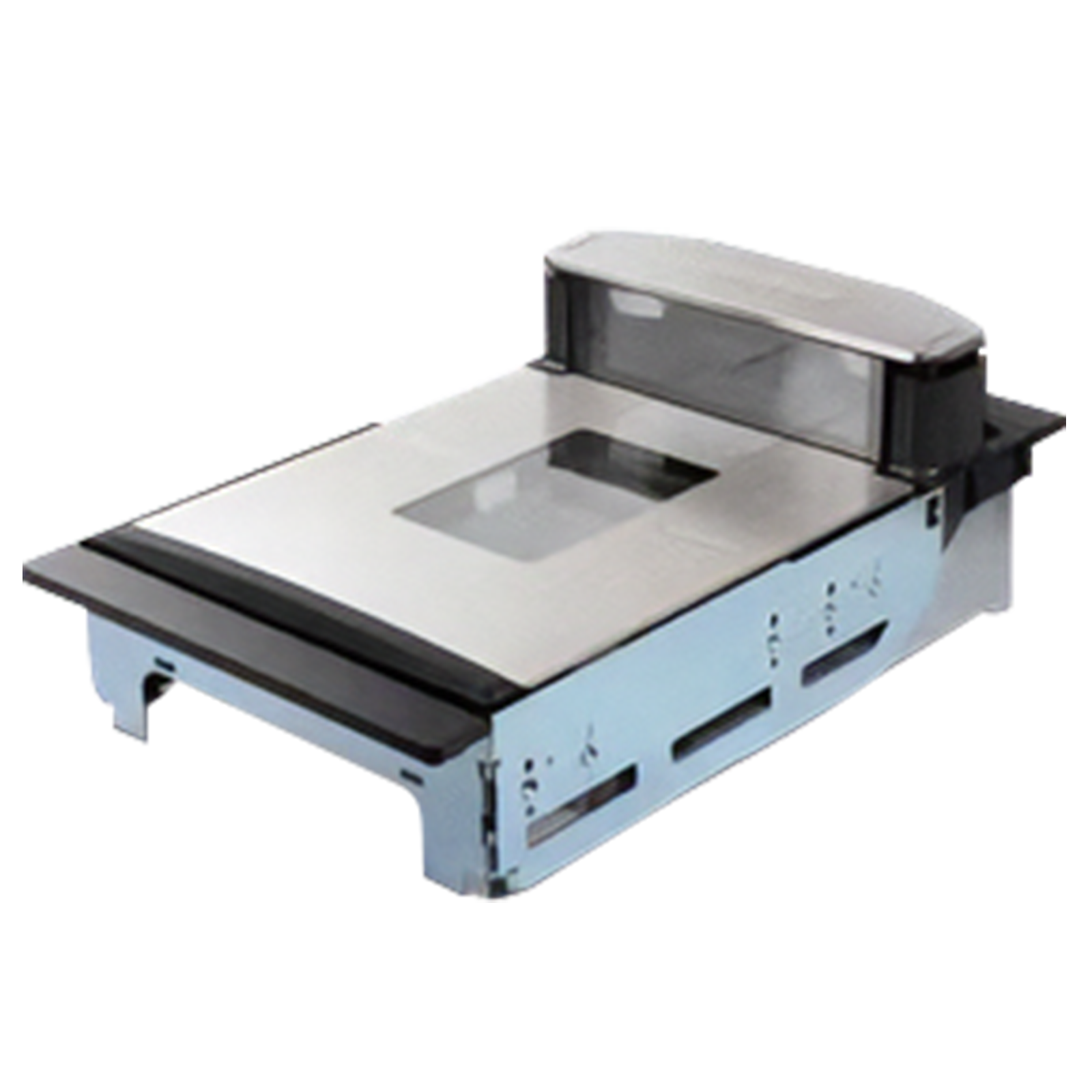

Datalogic Magellan 9900i In-Counter Scanner/Scale – Medium Platter, Shelf Mount, ScaleSentry, USB POT, Fixed Produce Rail

Non-rugged, Wired, Datalogic, Presentation, 2D, USB, Midrange, Grey, General purpose, Mid Level, Retail, 1 Year, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
99211212000-000541

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic Magellan™ 9900i Scanner/Scale sets the benchmark for retail point-of-sale performance. This advanced model features a medium-length platter, fixed produce rail, and shelf mount design, offering exceptional flexibility in both assisted and self-checkout environments.

Powered by QuadVision™ technology and a high-speed IMX8 processor, the 9900i leverages four image sensors to deliver rapid, reliable scanning—even on damaged, poorly printed, or mobile barcodes. The scanner is engineered for future-ready AI capabilities with support for colour cameras, Coral TPU, and neural processors, enabling real-time loss prevention and product recognition.

Its integrated ScaleSentry™ technology actively prevents shrink by detecting improper weighing, while the All-Weighs™ design allows bulkier items to be weighed across the bonnet. With a USB Powered-Over-Transfer (POT) interface, single interval scale, and US power configuration, this scanner is ideal for UK retail environments using international adaptors or converters.

Whether you're in grocery, convenience, DIY, or pharmacy, this solution offers faster throughput, enhanced accuracy, and long-term adaptability for high-demand checkouts.

Product Features

  • QuadVision™ 4-Camera Imaging System – Fast, omnidirectional scanning of 1D, 2D, GS1, and Digimarc® codes
  • Medium Platter with Fixed Produce Rail – Ideal for mid-sized checkout counters
  • Shelf Mount Design – Clean integration into counter setups
  • ScaleSentry™ Shrink Prevention – Alerts when items are improperly placed on the scale
  • All-Weighs™ Bonnet Scale Surface – Allows weighing of long produce items
  • USB POT Interface – Simplifies power and data through one cable
  • AI-Ready Platform – Supports Coral TPU, integrated neural processors, and dual colour cameras (optional)
  • Capacitive Touch Controls – Easy to clean, hygienic, and durable
  • Comprehensive Barcode Support – Reads all standard retail barcodes, including GS1 Digital Link (future-proof)
  • Single Interval Scale Technology – Fast and accurate weighing up to 15 kg


Product Specifications

Attribute

Details

Form Factor

In-Counter Scanner/Scale

Platter Size

Medium – 39.9 cm / 15.7 in

Mount Type

Shelf Mount

Produce Rail

Fixed Produce Rail

Bonnet Height

6.8 cm / 2.7 in

Scale Type

Single Interval, 0.005 kg increments, Max Capacity: 15 kg

Loss Prevention Features

ScaleSentry™ Infrared Beam Detection, All-Weighs™ Surface

EAS Integration

Compatible with Checkpoint/Nedap; SmartSentry™ support

Audio/Visual Indicators

Configurable LED and 85 dB speaker (volume/tone adjustable)

Environmental Ratings

ESD: 25 kV; Humidity: 5–95%; Ambient Light: Up to 86,080 lux

Operating Temperature

10°C to 40°C

Power Requirements

12 VDC, 9.3W Nominal, Sleep Mode: 7.3W

Operating Systems

Windows 10, Linux, IBM 4690, Android

Dimensions (WxLxD)

29.2 x 39.9 x 10.6 cm

Warranty

1-Year Standard Manufacturer Warranty

Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Datalogic
Form Factor:
  • Presentation
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Midrange
Colour:
  • Grey
Rugged:
  • General purpose
Usage:
  • Mid Level
Industry/Vertical:
  • Retail
Warranty:
  • 1 Year
Product Type/Condition:
  • New

Attachments

Brochure (4137-datasheet.pdf, 200 Kb) [Download]
