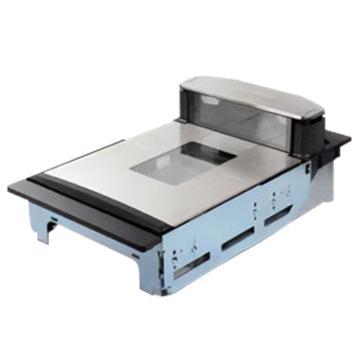

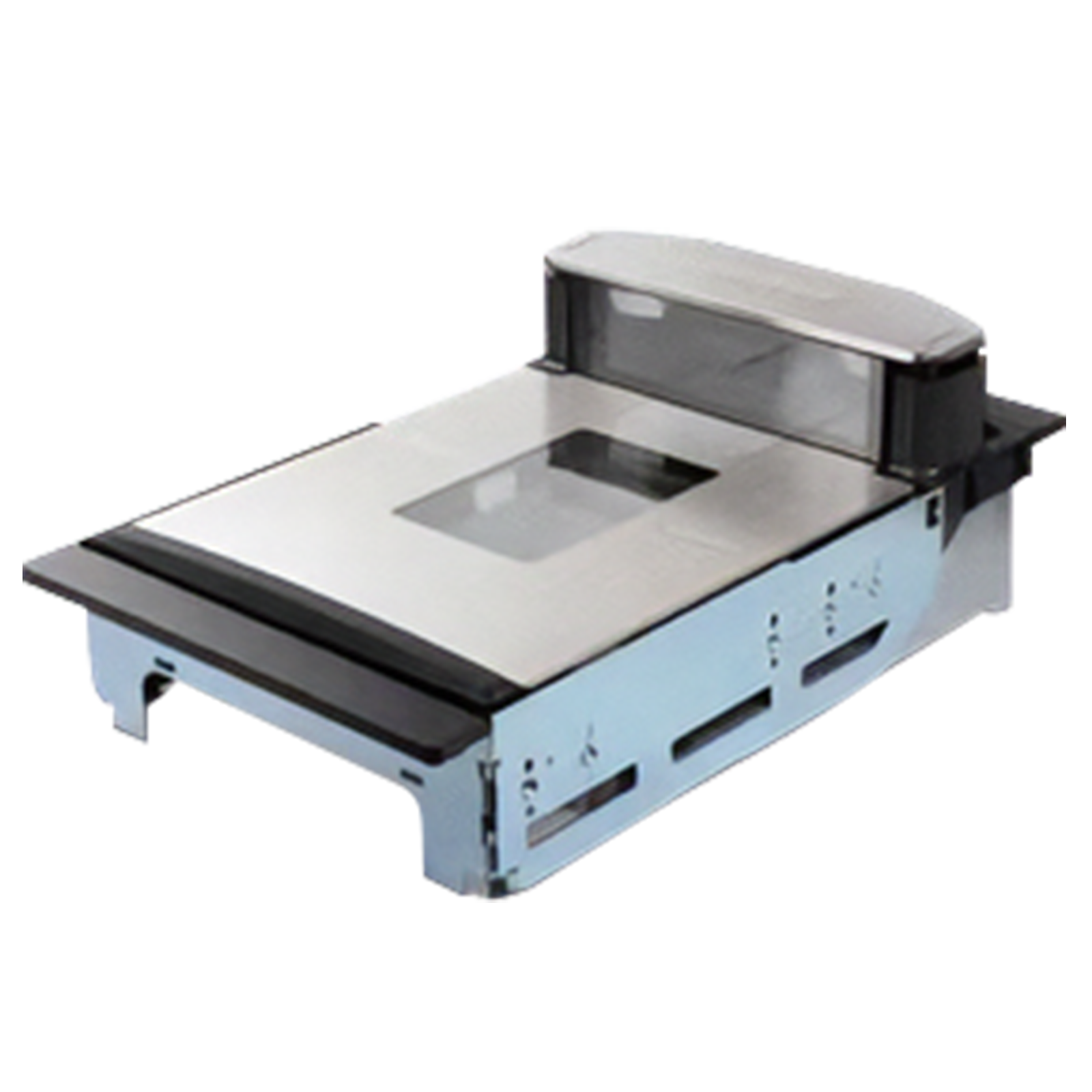

Datalogic Magellan 9900i Scanner/Scale – Medium Platter, Fixed Produce Rail, Shelf Mount, USB POT Cable, US Power, Scale Sentry

Non-rugged, Wired, Datalogic, Presentation, 2D, USB, Midrange, Grey, General purpose, Mid Level, Retail, 1 Year, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
99211212000-000540

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic Magellan™ 9900i Scanner/Scale delivers cutting-edge scanning performance with future-ready AI enablement in a compact, low-profile design. This model features a medium-scale platter, fixed produce rail, and shelf mount configuration, making it a smart choice for high-volume retail environments. With its USB POT (Power over Terminal) cable, US standard power support, and English single interval scale, this device integrates easily into your checkout system while ensuring compliance and performance.

At the core of the 9900i is QuadVision™, a powerful IMX8 multi-core processor system that powers four cameras for 5-sided high-resolution barcode reading. Combined with ScaleSentry™ infrared detection for shrink prevention and the innovative All-Weighs™ platter for oversized items, the 9900i is purpose-built to improve speed, accuracy, and loss prevention at the point of sale. Designed with embedded Linux and AI-ready infrastructure, this device is engineered to handle current retail challenges and future demands.

Product Features

  • Medium-sized 39.9 cm scale platter with shelf mount and fixed produce rail
  • USB POT cable for simplified single-cable installation and power supply
  • Single interval scale in English units with up to 30 lb capacity
  • QuadVision™ IMX8 multi-core processor with 5-sided imaging and AI-ready architecture
  • Supports GS1 Digital Link, Digimarc®, 1D/2D codes, and QR codes
  • ScaleSentry™ infrared beam detection prevents under-weighing due to item misplacement
  • All-Weighs™ scale design allows weighing of long produce across the scanner bonnet
  • Capacitive touch controls and easy-to-clean surfaces improve hygiene and operability
  • Future upgrade options include neural processors, color cameras, and USB 3.0 video streaming
  • Compatible with POS systems running Windows, Linux, Android, and IBM 4690


Product Specifications

Specification

Details

Model

Magellan 9900i Scanner/Scale

Platter Type

Medium – 39.9 cm / 15.7 in

Mounting

Shelf Mount

Produce Rail

Fixed

Display

Not included

Alternative Weighing

All-Weighs™ Bonnet Platter

Scan Engine

4-camera, 5-sided imaging

Interface

USB POT (Power over Terminal)

Power Supply

US Standard Power Support (12 VDC)

Power Consumption

Operating: 9.3 W, Sleep: 7.3 W

Dimensions (LxWxH)

39.9 cm x 29.2 cm x 6.8 cm (above counter)

Depth Below Counter

10.6 cm

Compliance

EU RoHS, China RoHS, REACH

POS OS Compatibility

Windows 10, Linux, Android, IBM 4690

Warranty

1-Year Standard Factory Warranty

Features

Connectivity:
  • Wired
Ruggedness:
  • Non-rugged
Brand:
Datalogic
Form Factor:
  • Presentation
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Midrange
Colour:
  • Grey
Rugged:
  • General purpose
Usage:
  • Mid Level
Industry/Vertical:
  • Retail
Warranty:
  • 1 Year
Product Type/Condition:
  • New

Attachments

Brochure (4137-datasheet.pdf, 200 Kb) [Download]
