Description

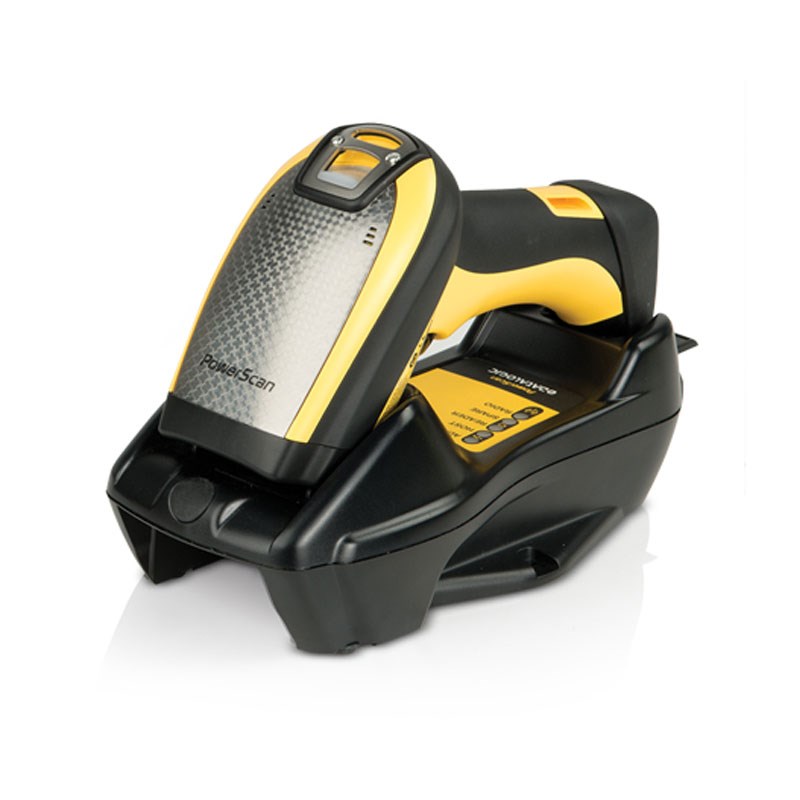

The Datalogic PowerScan D9531 DPM-EVO is a cutting-edge industrial-grade 2D barcode scanner built for Direct Part Marking (DPM) applications in high-demand sectors like automotive, aerospace, and manufacturing. This Bluetooth-enabled scanner delivers best-in-class decoding performance for laser-etched, dot-peened, and ink-jetted barcodes on reflective or irregular surfaces.
Engineered with Datalogic’s Motionix™ motion-sensing technology, 3GL™ visual indicators, and Bluetooth® 2.0 wireless capability, the D9531 ensures smooth, cordless operation with real-time data transmission up to 90 metres (Class 1). The scanner’s ergonomic design, combined with a soft-pulsed white LED illumination, delivers a highly intuitive, accurate, and comfortable scanning experience for intensive industrial use.
Rugged and reliable, the D9531 is IP65-rated, withstands multiple drops from 2.0 metres, and is purpose-built to operate in the harshest indoor or outdoor environments. This USB scanner kit is ideal for production lines, logistics, quality control, and component traceability in industrial settings.
Product Features
- Optimised for Direct Part Marking (DPM) including laser-etched, dot-peened, and low-contrast codes
- Integrated Bluetooth® 2.0 connectivity with Class 1 range up to 90 metres
- Compatible with PCs, tablets, and embedded Bluetooth systems
- Advanced Datalogic decoding algorithms for omnidirectional 1D, 2D, postal, and stacked symbologies
- Soft white illumination for enhanced readability on reflective or rough surfaces
- 3GL™ (Three Green Lights) feedback system for clear scan confirmation
- Robust design with IP65 sealing and 2.0 m drop resistance for rugged environments
- Motionix™ technology for automatic scanning when motion is detected
- Removable 2150 mAh Li-Ion battery supports 30,000+ scans per charge
- Configurable via Datalogic Aladdin™, OPOS, and JavaPOS
Product Specifications
Specification | Details |
Scanner Type | Industrial Cordless 2D Imager (DPM-EVO) with Bluetooth |
Wireless Communication | Bluetooth® 2.0 (Class 1: up to 90 m; Class 2: up to 40 m) |
Profiles Supported | HID (Human Interface Device), SPP (Serial Port Profile) |
Decoding Capability | 1D, 2D, Postal, Stacked Codes, GS1, DPM, PDF417, QR Code, Data Matrix |
Light Source | Aiming: 630–680 nm VLD; Illumination: White LEDs |
Drop Resistance | Scanner: 2.0 m; Cradle: 1.2 m on concrete |
Battery Type | Lithium-Ion, 2150 mAh, removable |
Charge Time | External: 4 hours; Host USB: 10 hours |
Reads per Charge | 30,000+ continuous reads |
Feedback Mechanism | 3GL™, Green Spot on Code, Dual LEDs, Adjustable Beeper |
Sealing Rating | IP65 (dust and water resistant) |
Image Capture Formats | BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
Interfaces | USB (HID, COM), RS-232, RS-485, Keyboard Wedge |
Ergonomics | Balanced, comfortable grip with intuitive aiming system |
Dimensions (Scanner) | 21.2 x 11.0 x 7.4 cm |
Weight (Scanner) | 380 g (approx.) |
Operating Temperature | -20°C to +50°C |
Storage Temperature | -40°C to +70°C |
Ambient Light Immunity | 0 to 100,000 lux |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP65
- Logistics/Warehouse
- 3 Years
- New
