Description

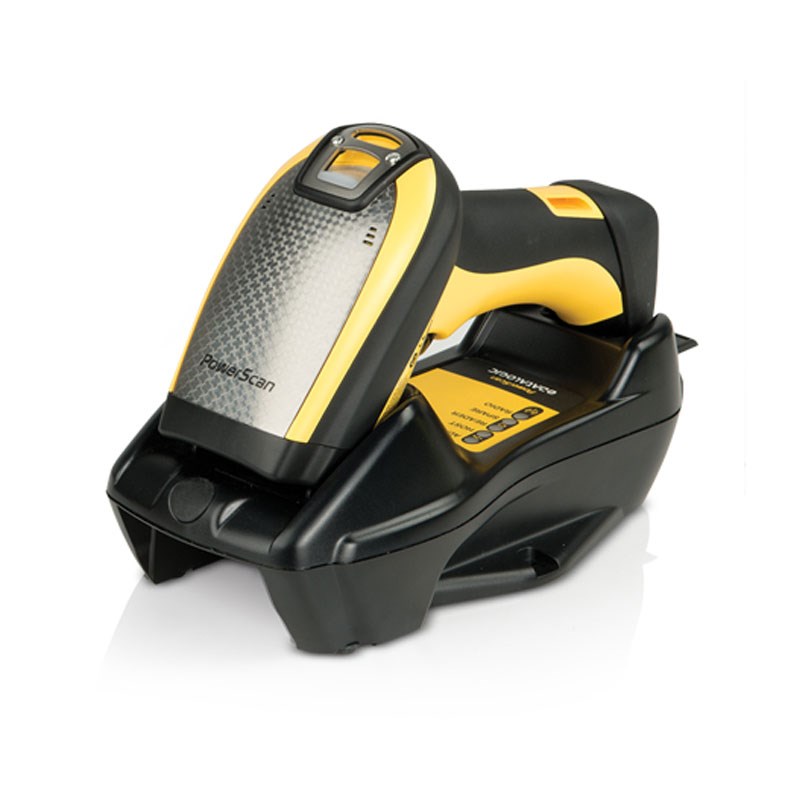

The Datalogic PowerScan D9531 DPM EVO RS-232 Kit is purpose-built for demanding industrial environments that require reliable scanning of Direct Part Marking (DPM) codes. Designed with precision and resilience in mind, this high-performance 2D imager scanner excels at decoding etched, dot peen, or laser-marked barcodes on metal, plastic, and low-contrast surfaces.
Included in the kit is the D9531 DPM EVO scanner and the CAB-434 RS-232 cable, providing a direct and stable connection to legacy or industrial systems. The PowerScan D9531 combines omnidirectional reading with Datalogic’s powerful decoding algorithms and features such as Motionix™ motion-sensing, 3GL™ (Three Green Lights) feedback, and a soft white illumination that is easy on the operator's eyes.
Its robust IP65-rated enclosure ensures durability in dusty, wet, and shock-prone environments, while its ergonomic design ensures maximum comfort during intensive scanning tasks on the shop floor, production line, or logistics centres.
Product Features
- Complete RS-232 Kit: Includes D9531 DPM EVO scanner and CAB-434 RS-232 cable
- Optimised for Direct Part Marking (DPM) on challenging surfaces
- Bluetooth-ready 2D area imager (via optional accessories or future expansion)
- Ergonomic design with soft-pulsed white illumination for operator comfort
- Datalogic Motionix™ motion-sensing technology for hands-free use
- 3GL™ technology: Green Spot on the code, Dual Good Read LEDs, and loud beeper
- Supports all major 1D, 2D, postal, and stacked barcodes including Data Matrix, QR, PDF417
- Durable build with IP65 sealing and 2.0 m drop resistance
- Ideal for manufacturing, automotive, aerospace, and logistics sectors
- Backed by 3-Year Datalogic Factory Warranty
Product Specifications
Specification | Details |
Kit Contents | PowerScan D9531 DPM EVO Scanner, RS-232 Cable CAB-434 |
Scanner Type | 2D Imager – DPM EVO Series |
Connectivity | RS-232 (via CAB-434), Optional Bluetooth capability |
Decoding Capability | 1D, 2D, Postal, Stacked (PDF417, Data Matrix, QR, GS1 DataBar, etc.) |
DPM Support | Yes – Direct Part Marking (laser, dot peen, etching) |
Feedback Mechanism | 3GL™ (Green Spot, LEDs, and Beeper) |
Illumination Type | White LEDs, Soft Pulsed |
Aiming System | 630–680 nm VLD |
Environmental Sealing | IP65 |
Drop Resistance | Withstands drops from 2.0 m to concrete |
Operating Temperature | -20°C to +50°C |
Storage Temperature | -40°C to +70°C |
Humidity (Non-condensing) | 95>#/span### |
Dimensions (Scanner) | 21.2 x 11.0 x 7.4 cm |
Weight | 380 g / 13.4 oz |
Utilities | Datalogic Aladdin™, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP65
- Logistics/Warehouse
- 3 Years
- New
