Description

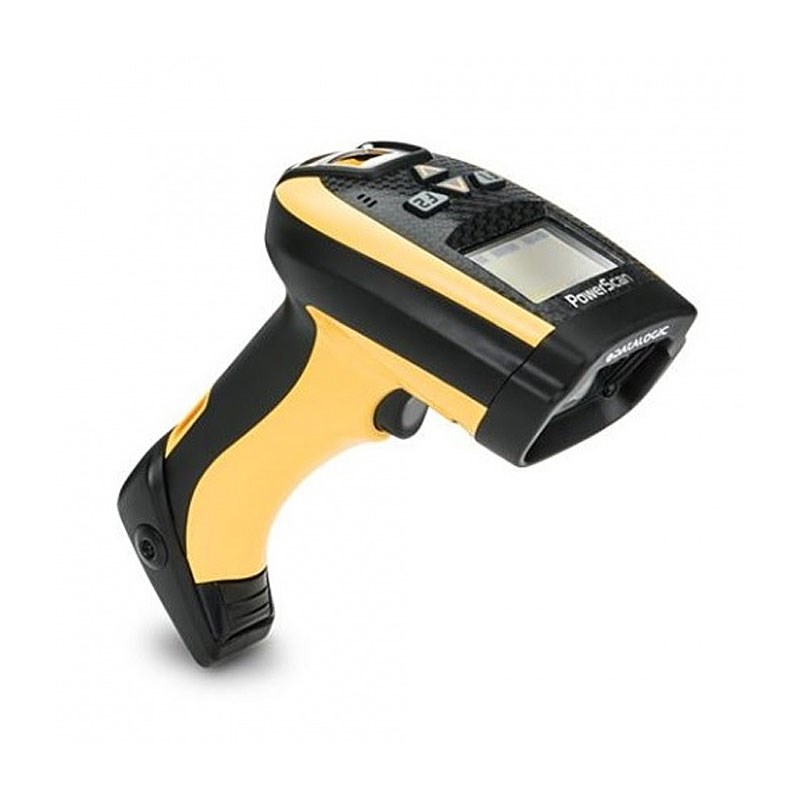

The Datalogic PowerScan PBT9100 RS-232 Kit (US Version) delivers best-in-class 1D barcode scanning in industrial applications, powered by Bluetooth® wireless connectivity and a durable removable battery (PBT9100-RB) for continuous operation. Built for productivity, the kit includes the BC9030-BT base, CAB-433 RS-232 serial cable, and all essential components to get started in high-demand environments.
Using Datalogic’s cutting-edge green LED scanning technology, the PBT9100 delivers precise, laser-like aiming and high read accuracy—even on low-contrast, damaged, or worn barcodes. Backed by Datalogic’s STAR Cordless System™, it enables flexible point-to-point and multi-point wireless communication without interference from Wi-Fi or Bluetooth networks.
Designed for tough environments, the PBT9100 is IP65-sealed, drop-tested from 2.0 m, and ideal for manufacturing, warehousing, logistics, and other heavy-duty sectors.
Product Features
- Bluetooth® Cordless Linear Imager – Wireless 1D scanning with Class 1 Bluetooth range (up to 100 m)
- Removable Lithium-Ion Battery – Field-replaceable 2150 mAh battery for reduced downtime
- Industrial-Grade Durability – IP65 sealing and 2.0 m drop resistance for rugged environments
- RS-232 Serial Support – Includes CAB-433 serial cable and BC9030-BT multi-interface base
- Datalogic Green LED Aiming – Laser-like scanning performance with 2.5 mils resolution capability
- 3GL™ Good-Read Feedback – Combines visual LEDs, audible beep, and Green Spot confirmation
- STAR Cordless System™ – Enables interference-free point-to-multipoint wireless communication
- High Read Rate – Over 50,000 scans per charge with ultra-fast charging (4 hours via external supply)
- Wide Temperature Operation – Ideal for harsh UK warehouse and industrial settings (-20°C to 50°C)
- Software Support – Fully compatible with Datalogic Aladdin™ for simplified configuration
Product Specifications
Specification | Details |
Scanner Type | Bluetooth® Cordless Linear Imager |
Decoding Capability | 1D: Code 128, Code 39, EAN/UPC, Codabar, Interleaved 2 of 5, MSI, etc. |
Battery Type | Removable Li-Ion 2150 mAh |
Reads per Charge | 50,000+ continuous reads |
Charge Time | 4 hours (external); 10 hours (host power) |
Base Station | BC9030-BT (Multi-interface) |
Communication | Bluetooth Class 1 (up to 100 m open-air) |
Cables Included | CAB-433 (RS-232 Serial Cable) |
Drop Resistance | 2.0 m / 6.6 ft |
Ingress Protection | IP65 rated |
Ambient Light Immunity | Tolerates direct sunlight |
Weight (Scanner) | 405 g / 14.2 oz |
Dimensions (Scanner) | 21.2 x 11.0 x 7.4 cm |
Resolution | Up to 2.5 mils |
Reading Range (Code 39) | 3.0 to 230.0 cm depending on barcode density |
Operating Temperature | -20°C to 50°C |
Configuration Software | Datalogic Aladdin™ |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 1D
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP65
- Logistics/Warehouse
- 3 Years
- New
