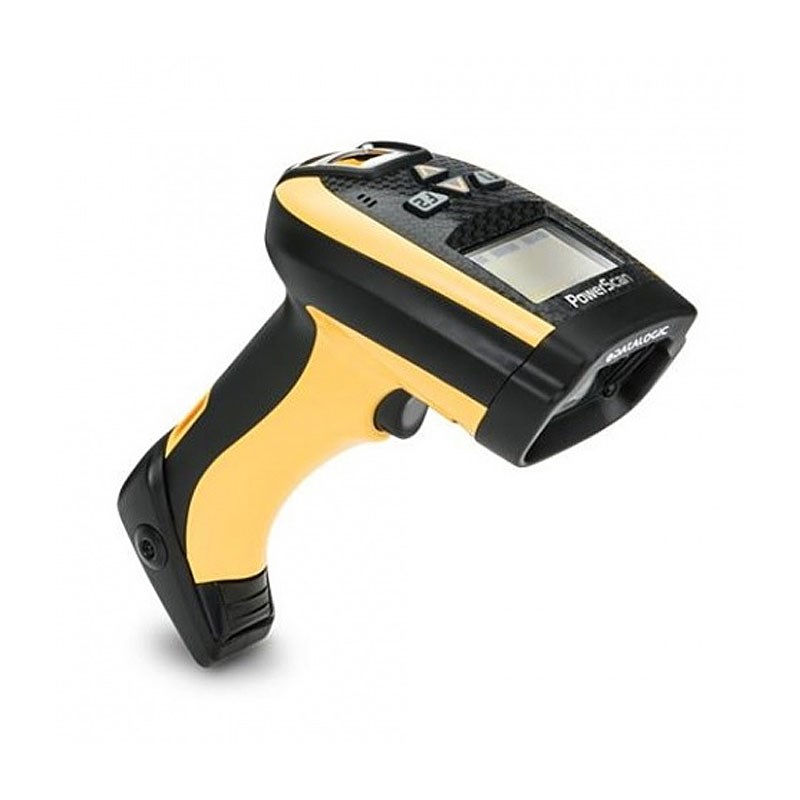

Datalogic PowerScan PBT9100 Cordless USB Barcode Scanner Kit with Removable Battery – BC9030 Base (US Kit)

Wireless, Rugged, Datalogic, Handheld, 1D, USB, Standard Range, Yellow, Rugged/Heavy Duty, Industrial, IP65, Logistics/Warehouse, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
PBT9100-RBK10US

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic PowerScan PBT9100 USB Kit (US Version) offers unmatched durability and scanning performance for UK industries requiring high-throughput 1D barcode reading. Equipped with a removable lithium-ion battery, this cordless barcode scanner ensures continuous, uninterrupted operation in fast-paced manufacturing and logistics environments.

Included in this kit is the BC9030-BT multi-interface base, a CAB-438 USB cable, and all essential accessories to begin scanning right away. The device leverages Datalogic's STAR Cordless System™, enabling seamless roaming and multi-point connectivity without interference from existing Wi-Fi or Bluetooth networks.

With IP65-rated protection, 2.0 m drop resistance, and reliable operation in extreme conditions, the PBT9100 is the go-to solution for warehouse, manufacturing, and distribution operations in the UK.

Product Features

  • Wireless 1D Scanning with USB Connectivity – Includes CAB-438 USB cable and BC9030 base
  • Removable Li-ion Battery (PBT9100-RB) – User-replaceable battery with 50,000+ scans per charge
  • Green LED Aiming Technology – Laser-like precision with 2.5 mils decoding capability
  • 3GL™ Feedback System – Beeper, Green Spot, and dual LED indicators for accurate scanning
  • Datalogic STAR Cordless System™ – Enables point-to-multipoint communication, seamless roaming
  • Heavy-Duty Industrial Design – IP65 sealed, withstands drops from 2.0 m onto concrete
  • Supports a Wide Range of 1D Symbologies – Including Code 128, UPC/EAN, Interleaved 2 of 5, Code 39
  • Easy Configuration – Compatible with Datalogic Aladdin™ setup software
  • Multi-Interface Base (BC9030-BT) – Supports RS-232, USB, Keyboard Wedge, RS-485
  • High Environmental Tolerance – Operates from -20°C to +50°C


Product Specifications

Specification

Details

Scanner Type

Cordless 1D Linear Imager

Wireless Technology

Datalogic STAR Cordless System™

Battery Type

Removable Li-ion, 2150 mAh

Reads per Charge

50,000+ continuous reads

Charging Time

4 hrs (external), 10 hrs (host power)

Interface Cable

CAB-438 USB Cable

Base Station

BC9030-BT (multi-interface)

Radio Frequency

910 MHz

Radio Range (Open Air)

Up to 400 m @ 36.8 KB/s

Supported Barcodes

1D: Code 128, Code 39, EAN/UPC, Codabar, MSI, Interleaved 2 of 5, etc.

Resolution

Up to 2.5 mils

Reading Range (Code 39)

Up to 230 cm depending on barcode density

Drop Resistance

Withstands 50 drops from 2.0 m

Sealing

IP65

Ambient Light Immunity

Works in sunlight and indoor lighting

Dimensions (Scanner)

21.2 x 11.0 x 7.4 cm

Weight (Scanner)

405 g / 14.2 oz

Operating Temperature

-20°C to +50°C

Warranty

3-Year Factory Warranty



Features

Connectivity:
  • Wireless
Ruggedness:
  • Rugged
Brand:
Datalogic
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 1D
Interface:
  • USB
Scan Range:
  • Standard Range
Colour:
  • Yellow
Rugged:
  • Rugged/Heavy Duty
Usage:
  • Industrial
IP Rating:
  • IP65
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (2989-datasheet.pdf, 332 Kb) [Download]
