Description

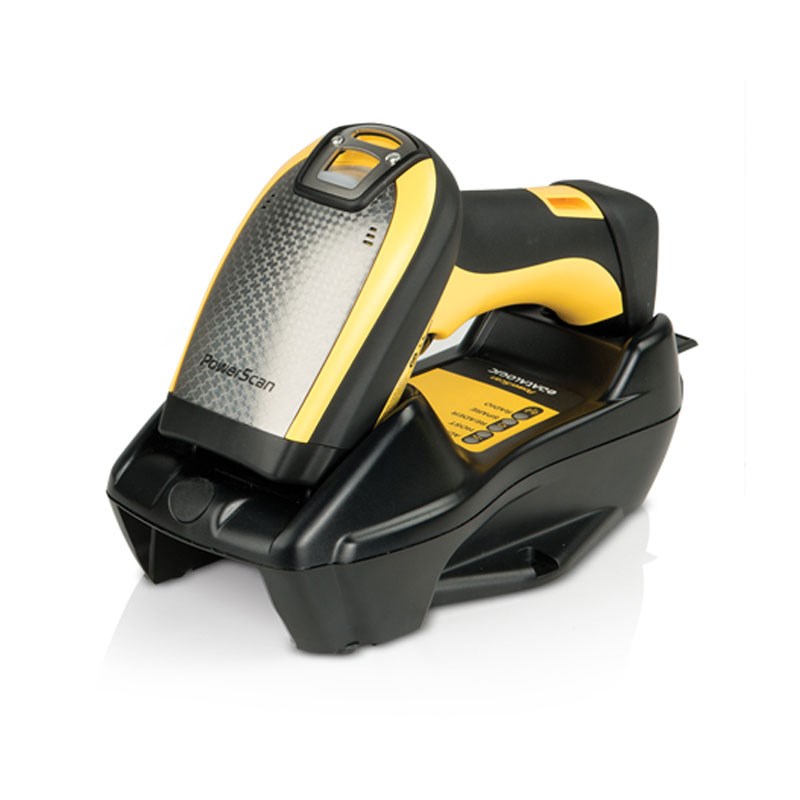

The Datalogic PowerScan PBT9501 Direct Part Marking (DPM) Evo USB Kit is a robust industrial-grade 2D imager designed for demanding applications that require precise and reliable reading of Direct Part Marking barcodes. Equipped with advanced Bluetooth® 2.0 wireless technology, this cordless scanner offers exceptional freedom of movement in manufacturing, logistics, and warehouse environments.
This USB kit includes everything needed for immediate deployment: PBT9501 DPM Evo scanner, BC9030-BT base station, CAB-438 interface cable, power brick (8-0935), and UK power cord (6003-0940). It features Motionix™ motion-sensing technology, 3GL™ visual feedback, and white soft illumination for ergonomic, high-performance scanning of laser-etched, dot-peened, and ink-jet barcodes.
Designed to withstand harsh industrial conditions, the PBT9501 DPM Evo offers IP65 sealing, 2.0 m drop resistance, and long battery life with a removable 2150 mAh lithium-ion battery. With image capture capabilities and decoding of virtually all 1D, 2D, and stacked codes including postal symbologies, it is an ideal solution for tracking, traceability, and quality control.
Product Features
- Optimised for Direct Part Marking (DPM) barcodes including laser-etched and dot-peened codes
- Bluetooth® 2.0 wireless communication – Class 1 range exceeds 90 metres (295 ft)
- Removable 2150 mAh lithium-ion battery with over 30,000 scans per charge
- Soft white illumination and intuitive aiming system for user comfort
- Supports 1D, 2D, stacked, and postal barcode symbologies
- Includes scanner, BC9030-BT base, USB cable (CAB-438), power brick, and UK power cord
- Durable build: IP65 sealing, 2.0 m drop resistance, and industrial-grade design
- Motionix™ motion-sensing and Datalogic 3GL™ technology for accurate scan feedback
- Configurable via Datalogic Aladdin™ software
- Ideal for industrial marking verification, manufacturing, and traceability
Product Specifications
Specification | Details |
Scanner Type | 2D Industrial Imager for Direct Part Marking (DPM) |
Wireless Technology | Bluetooth 2.0 Class 1 (up to 90 m range) |
Battery | Removable Li-Ion 2150 mAh; 30,000+ scans per charge |
Image Sensor | 864 x 544 pixels (PBT9530) |
Supported Codes | 1D, 2D, Postal, Stacked (PDF417, DataMatrix, QR, MaxiCode, Aztec, GS1) |
Image Capture | BMP, JPEG, TIFF – Greyscale 256/16/2 |
Drop Resistance | 2.0 m (6.6 ft) for scanner, 1.2 m for cradle |
Sealing | IP65 (dust and water resistant) |
Illumination/Aiming | White LEDs / 630–680 nm VLD |
Print Contrast Ratio | ≥15% |
Interfaces | USB (HID, COM, OEM), RS-232, RS-485, Keyboard Wedge |
Weight | 380 g (scanner only) |
Charging Time | 4 hours (external), 10 hours (via host) |
Operating Temperature | -20°C to +50°C |
Configuration Utility | Datalogic Aladdin™, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP65
- Logistics/Warehouse
- 3 Years
- New
