Description

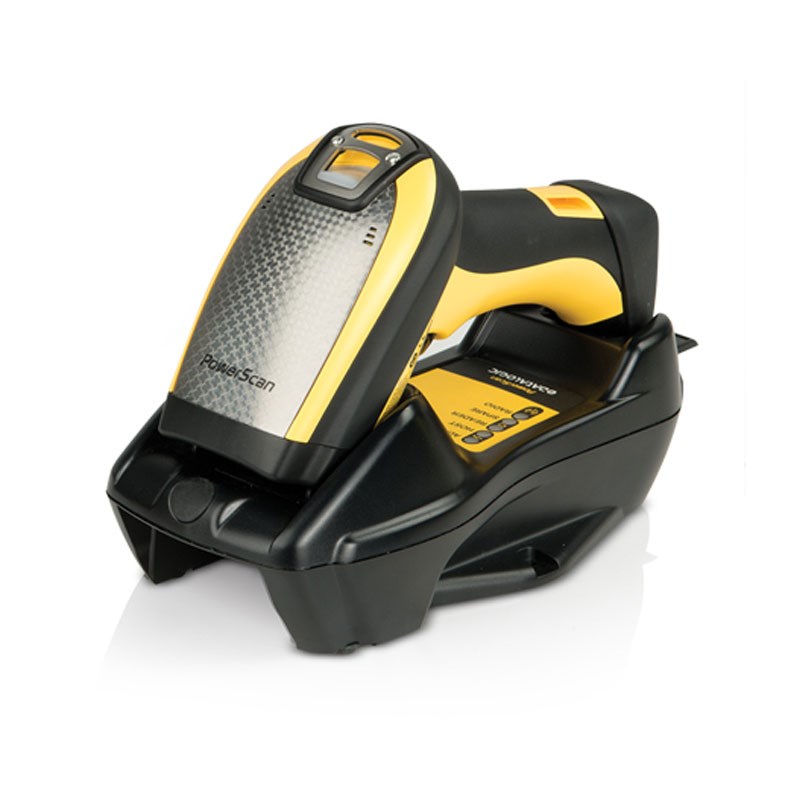

The Datalogic PowerScan PBT9501 DPM EVO is a high-performance Bluetooth® industrial barcode scanner purpose-built for Direct Part Marking (DPM) applications in challenging production and logistics environments. Its fixed optics system delivers consistent, high-resolution scanning of laser-etched, dot-peened, or low-contrast codes on metal, plastic, and curved surfaces.
Powered by Bluetooth® 2.0 Class 1/2 wireless communication, the scanner enables unrestricted mobility across the factory floor with a range of up to 90 metres. Designed for 24/7 shift operation, the removable lithium-ion battery delivers over 30,000 scans per charge, and can be hot-swapped in seconds for uninterrupted productivity.
This rugged device features IP65-rated protection, ergonomic design, Datalogic’s Motionix™ motion-sensing, and 3GL™ visual feedback system for intuitive, high-accuracy scanning. With omnidirectional decoding and superior imaging performance, the PBT9501 DPM EVO is ideal for automotive, aerospace, heavy manufacturing, and quality control applications.
Product Features
- Fixed optics DPM EVO scanner optimised for Direct Part Marking on metal, plastic & rough surfaces
- Cordless design with Bluetooth® 2.0 Class 1 & 2 – up to 90 m range
- Supports 1D/2D/Stacked/Postal symbologies including DPM, Data Matrix, QR, PDF417, GS1
- Rugged IP65 housing and 2 m drop resistance for harsh industrial environments
- Soft white illumination for superior performance on reflective & textured surfaces
- Motionix™ technology activates scanning on movement
- 3GL™ (Three Green Lights) and loud beeper for user feedback
- Removable 2150 mAh Li-Ion battery with fast 3-second replacement
- Supports USB, RS-232, RS-485, and Keyboard Wedge connections
- Includes support for Datalogic Aladdin™, OPOS, JavaPOS configuration utilities
Product Specifications
Specification | Details |
Scanner Type | Fixed Optics 2D Imager (DPM EVO) with Bluetooth® Wireless Technology |
Wireless Communication | Bluetooth® 2.0 (Class 1: 90 m, Class 2: 40 m), HID & SPP Profiles |
Battery | Removable Li-Ion 2150 mAh, 30,000+ scans per charge |
Decoding Capability | 1D, 2D, Postal, Stacked Codes, DPM, PDF417, GS1 DataBar, QR, Data Matrix |
Light Source | Aiming: 630–680 nm VLD; Illumination: White LEDs |
Drop Resistance | Scanner: 2.0 m (6.6 ft) onto concrete |
Sealing Rating | IP65 – Dust & Water Resistant |
Feedback Indicators | 3GL™, Dual LEDs, Green Spot, Loud Adjustable Beeper |
Image Capture Formats | BMP, JPEG, TIFF (256, 16, 2 greyscale levels) |
Interfaces | USB HID, USB COM, OEM USB, RS-232, RS-485, Keyboard Wedge |
Dimensions | 21.2 x 11.0 x 7.4 cm (Scanner) |
Weight | 380 g (Scanner) |
Operating Temperature | -20°C to +50°C |
Ambient Light Immunity | Up to 100,000 lux |
Supported Utilities | Datalogic Aladdin™, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- Bluetooth
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP65
- Logistics/Warehouse
- 3 Years
- New
