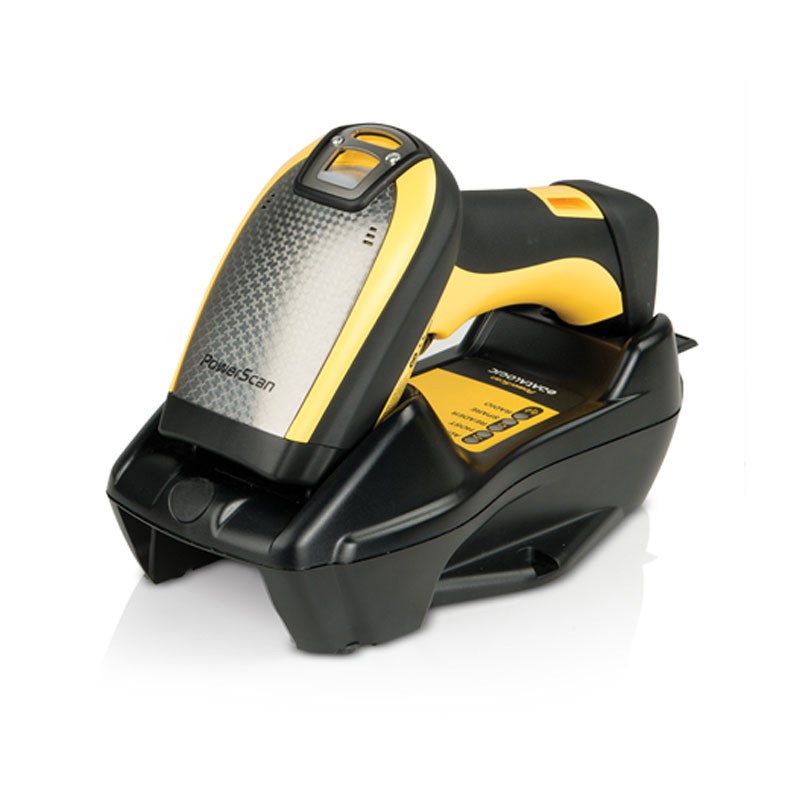

Datalogic PowerScan PBT9501 DPM EVO Bluetooth RS-232 Kit – Removable Battery, Base, Cable & Power Supply Included

The Datalogic PowerScan PBT9501 DPM EVO RS-232 Kit is an advanced Bluetooth® industrial 2D imager designed specifically for scanning Direct Part Marking (DPM) codes in harsh environments. This complete kit includes the scanner, BC9030-BT base station, RS-232 cable (CAB-433), 8-0935 power brick, and 6003-0940 UK power cord, providing a ready-to-deploy solution for manufacturing and logistics operations.

With Bluetooth® 2.0 connectivity, the PBT9501 offers wireless freedom up to 90 metres and is built to withstand extreme conditions thanks to its IP65 sealing, 2.0m drop resistance, and robust mechanical housing. The fixed-focus DPM EVO optics deliver high-performance decoding for dot-peened, laser-etched, or low-contrast codes on metal or plastic surfaces.

Its intuitive aiming system, ergonomic build, removable 2150 mAh battery, and 3GL™ visual feedback ensure operator comfort and scanning efficiency during intensive use on the shop floor, warehouse, or production line.

Product Features

• Complete RS-232 Kit: Includes scanner, BC9030-BT base, CAB-433 RS-232 cable, 8-0935 power supply, and 6003-0940 UK cord
• Optimised for Direct Part Marking (DPM) on industrial surfaces like metal and plastic
• Bluetooth® 2.0 Class 1/2 connectivity with up to 90 m range
• Removable 2150 mAh Li-Ion battery supports 30,000+ scans per charge
• Robust IP65-rated housing with 2.0 m drop resistance
• Omnidirectional 1D/2D decoding including Data Matrix, QR, PDF417, postal and stacked codes
• Soft white illumination and motion-sensing technology (Motionix™) for user comfort
• High visibility with 3GL™ good-read feedback, loud beeper, and intuitive aiming
• Multiple interface support: RS-232, USB, RS-485, and Keyboard Wedge
• Backed by 3-Year Manufacturer Warranty


Product Specifications
