Description

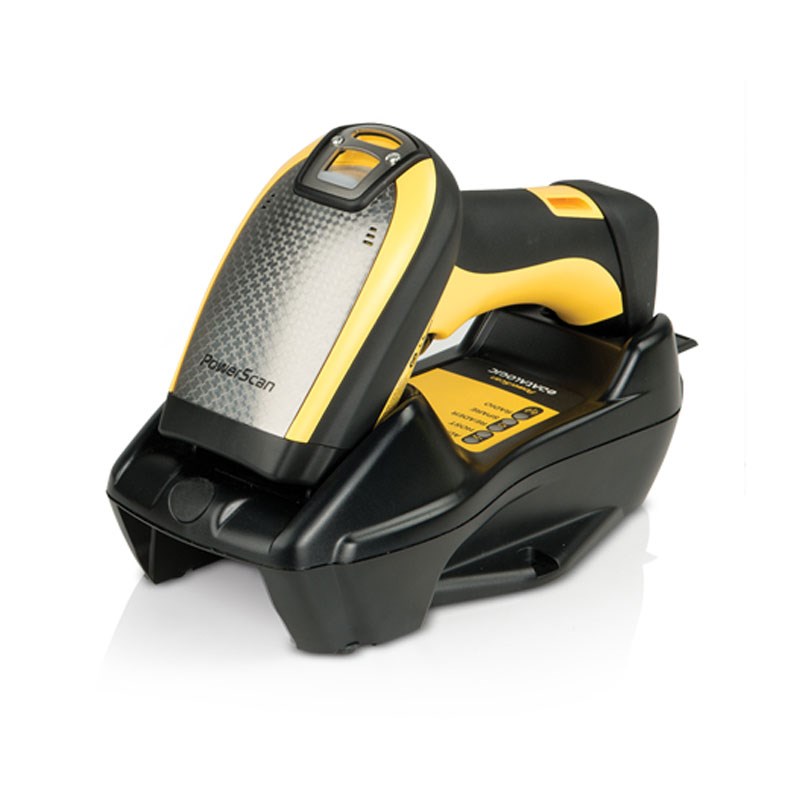

The Datalogic PowerScan PBT9501 DPM EVO USB Kit delivers exceptional performance for challenging Direct Part Marking (DPM) applications across industrial and manufacturing environments. Equipped with Bluetooth® wireless communication and a removable 2150 mAh battery, this rugged scanner ensures maximum mobility and 24/7 uptime with seamless integration via the included BC9030-BT base station.
The scanner’s fixed DPM EVO optics are optimised to read the most demanding laser-etched, dot-peened, or low-contrast codes on metal and plastic surfaces. With omnidirectional scanning, a high-speed decoding engine, and intuitive aiming, the PowerScan PBT9501 guarantees accurate results even under poor lighting or harsh conditions.
This complete USB kit includes the scanner, Bluetooth base (BC9030-BT), USB cable (CAB-438), power supply (8-0935), and UK power cord (6003-0941), offering an out-of-the-box solution for advanced industrial barcode scanning.
Product Features
- Complete USB Kit: Includes PBT9501 DPM EVO Scanner, BC9030-BT base, CAB-438 USB cable, 8-0935 power brick, and 6003-0941 UK power cord
- Optimised for Direct Part Marking (DPM) on metal, plastic, and curved surfaces
- Bluetooth® 2.0 Class 1/2 wireless communication with up to 90 m range
- Removable 2150 mAh Li-Ion battery supports 30,000+ scans per charge
- Omnidirectional 2D imaging with advanced decoding and motion-sensing (Motionix™)
- Rugged construction: IP65 rating, 2 m drop resistance
- Soft white illumination reduces strain for scan-intensive tasks
- 3GL™ (Three Green Lights) visual feedback and loud beeper for instant read confirmation
- Interfaces: USB, RS-232, RS-485, Keyboard Wedge
- Easy configuration with Datalogic Aladdin™, OPOS, and JavaPOS utilities
Product Specifications
Specification | Details |
Scanner Type | Fixed Optics 2D Imager for DPM |
Connectivity | Bluetooth® 2.0 (Class 1: 90 m, Class 2: 40 m), USB (via included cable) |
Battery | Removable Li-Ion 2150 mAh, >30,000 scans per charge |
Decoding Capability | 1D, 2D, Postal, Stacked Codes including DPM, QR, PDF417, Data Matrix |
Drop Resistance | Scanner: 2.0 m (6.6 ft), Base: 1.2 m (4 ft) |
Sealing Rating | IP65 – Dust & Water Resistant |
Image Capture | Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
Illumination & Aiming | White LEDs, 630–680 nm VLD |
Feedback System | 3GL™ technology, loud beeper, green spot, dual LEDs |
Interfaces Supported | USB HID/COM, RS-232, RS-485, Keyboard Wedge |
Dimensions (Scanner) | 21.2 x 11.0 x 7.4 cm |
Dimensions (Base) | 24.0 x 10.8 x 9.5 cm |
Weight (Scanner) | 380 g |
Operating Temperature | -20°C to +50°C |
Storage Temperature | -40°C to +70°C |
Ambient Light Immunity | Up to 100,000 lux |
ESD Protection | 20 kV (Air Discharge) |
Configuration Software | Datalogic Aladdin™, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- Bluetooth
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP65
- Logistics/Warehouse
- 3 Years
- New
