Description

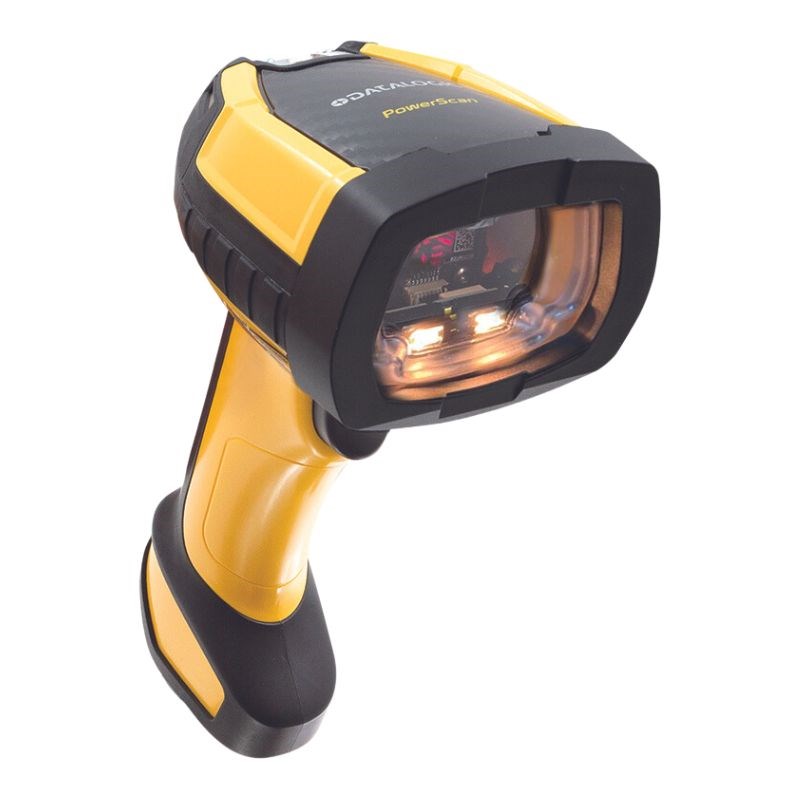

The Datalogic PowerScan PBT9600-AR USB Kit is the next generation in ultra-rugged industrial barcode scanning. Equipped with advanced Bluetooth® 5.0 wireless technology and a powerful auto-range imager, this scanner excels at reading 1D and 2D barcodes from near contact up to several metres away – even in the most demanding environments.
This USB kit includes the PBT9600-ARRB scanner, BC9630-BT cradle, USB cable, power supply, and cord – everything needed for a seamless setup in logistics, warehousing, or manufacturing operations. With modular connectivity, wireless charging, and a removable 3350 mAh battery, it’s built for continuous performance.
Engineered for tough conditions, it withstands drops from 2.5 metres, features IP65/IP67 sealing, and integrates Datalogic’s 3GL™ visual feedback, Motionix™ motion-sensing, and white LED illumination for a comfortable and intuitive scanning experience.
Product Features
- Advanced Auto Range imager reads from near contact to long distances
- Bluetooth® 5.0 Class 1 with up to 100 m range
- Wireless charging eliminates contact wear and maintenance
- IP65/IP67 industrial sealing for dust and water protection
- Ultra-rugged design withstands 2.5 m drops and 10 million trigger hits
- Datalogic 3GL™ and Green Spot technology for instant good-read feedback
- Motionix™ technology activates scanner automatically when picked up
- High-capacity 3350 mAh removable battery with up to 80,000 scans per charge
- Modular cradle supports USB, RS-232, and Industrial Ethernet interfaces
- Optimised for manufacturing, logistics, and high-throughput environments
Product Specifications
Specification | Details |
Model | PBT9600-AR |
Scan Technology | Auto Range 2D Area Imager |
Connectivity | Bluetooth® 5.0 Class 1, USB via cradle |
Radio Range | Up to 100 m (open air) |
Battery | Removable 3350 mAh Lithium-Ion |
Reads per Charge | 80,000+ |
Charging Method | Wireless inductive charging |
IP Rating | IP65/IP67 |
Drop Resistance | Up to 2.5 m onto concrete |
Interfaces (via Cradle) | USB, RS-232, Ethernet, Industrial Protocols |
Scan Capability | 1D, 2D, Postal, Stacked, Dot Code, Digimarc (HP/DC) |
Resolution | 1D: 2.5 mil (HP), 3 mil (SR); 2D: 4 mil (HP), 6 mil (SR) |
Field of View | 38° H x 24° V |
Operating Temperature | -20 °C to 50 °C |
Weight (Scanner only) | 415 g |
Dimensions (Scanner) | 19.8 x 14.0 x 7.9 cm |
Warranty | 3 Years |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Bluetooth
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
