Description

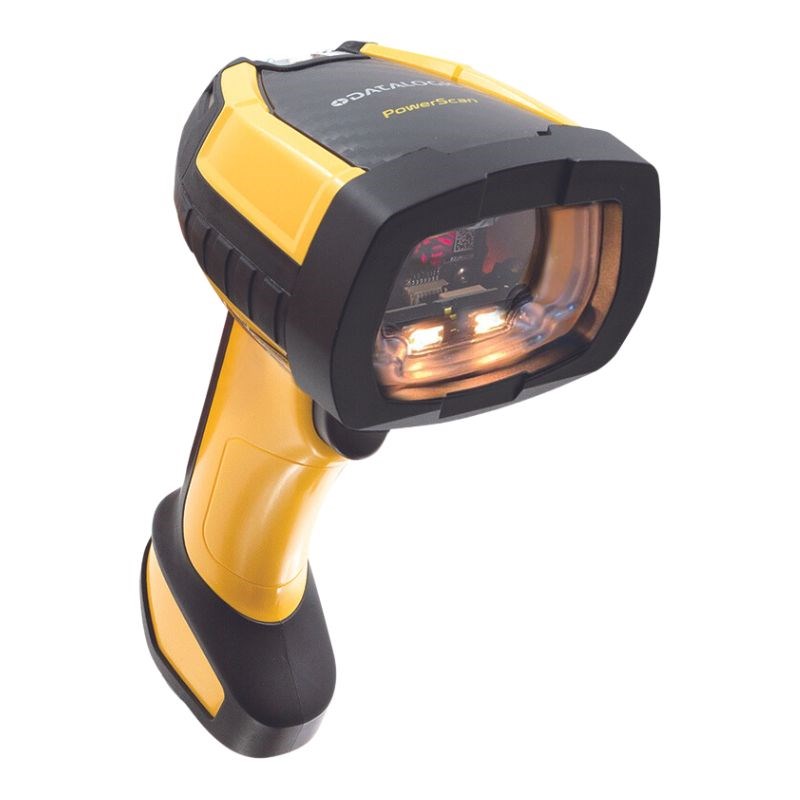

The Datalogic PowerScan PBT9600-AR Bluetooth Auto Range Barcode Scanner USB Kit is engineered for high-performance, long-distance scanning in demanding industrial environments. Powered by Bluetooth® 5.0, this rugged handheld scanner enables seamless wireless communication over a 100 m range, making it perfect for large warehouses, logistics operations, and manufacturing facilities.
The Auto Range (AR) model is designed to read barcodes at both close proximity and extreme distances with consistent precision. Built with inductive wireless charging, a removable 3350 mAh battery, and IP67/IP65 sealing, the PBT9600-AR is designed to withstand drops, dust, and water while reducing the risk of hardware failure from mechanical connectors.
This kit includes the PBT9600-ARRB scanner, BC9630-BT cradle, CAB-552 USB cable, 8-0935 power supply, and 6003-0941 UK power cord, offering a complete and reliable solution ready for deployment in tough workspaces.
Product Features
- Full kit: Scanner, Bluetooth cradle, USB cable, power supply, and UK power cord
- Auto Range (AR) optics scan barcodes from near contact to long range
- Reliable Bluetooth 5.0 wireless communication (up to 100m range)
- Wireless inductive charging eliminates exposed contacts and pins
- 3350 mAh removable battery supports up to 80,000 scans per charge
- Rugged design with IP67/IP65 sealing and 2.5m drop resistance
- Ergonomic, balanced form factor reduces user fatigue
- Compatible with USB, RS-232, and Ethernet interfaces via modular cradle
- Advanced feedback with Datalogic 3GL™, beeper, vibration, and Green Spot
- Designed for heavy-duty use in logistics, warehouse, and manufacturing
Product Specifications
Specification | Details |
Model | PowerScan PBT9600-AR (Auto Range) |
Connectivity | Bluetooth® 5.0, USB (via cradle) |
Wireless Range | Up to 100 m (open air) |
Scan Engine | Auto Range 2D Imager |
Charging Method | Wireless inductive (via cradle) |
Battery Type | Removable Lithium-Ion 3350 mAh |
Battery Life | Up to 80,000 reads per charge |
Drop Resistance | Up to 2.5 m |
IP Rating | IP65/IP67; Cradle IP65 |
Resolution (Max) | 1D: 2.5 mil; 2D: 4 mil |
Sensor Resolution | 1280 x 800 pixels |
Light Source | Red Aimer (630–680 nm), White LED illumination |
Indicators | Beeper, Vibration, 3GL™, Green Spot, Dual LEDs |
Weight (Scanner) | Approx. 415 g |
Dimensions (HxLxW) | 19.8 x 14.0 x 7.9 cm |
Operating Temperature | -20 °C to 50 °C |
Storage Temperature | -40 °C to 70 °C |
Interfaces via Cradle | USB, RS-232, Ethernet, Industrial Protocols |
Environmental Compliance | EU RoHS, China RoHS, REACH |
Warranty | 3-Year Factory Warranty |
