Description

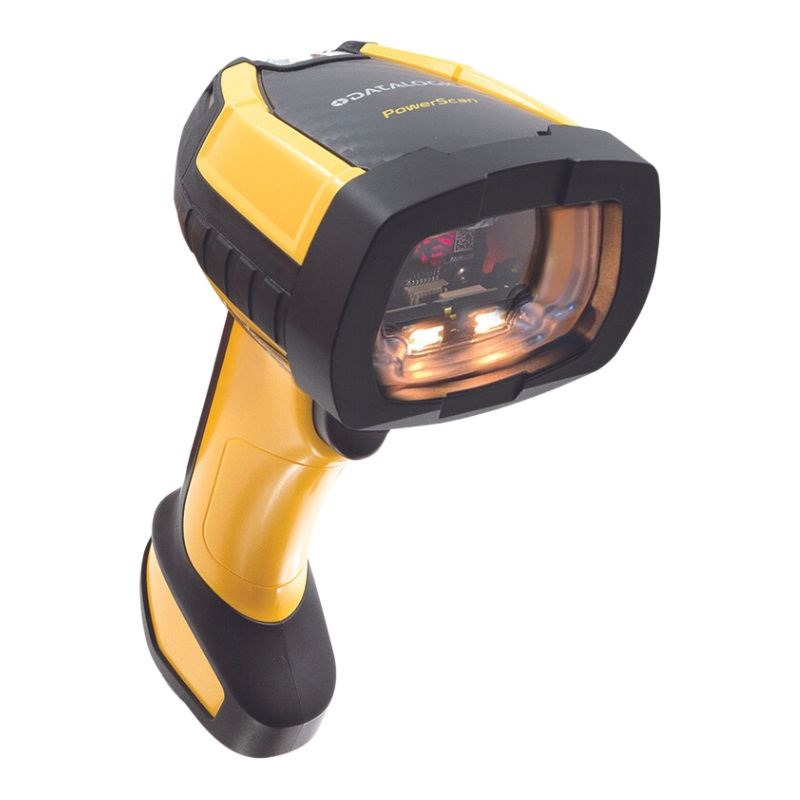

The Datalogic PowerScan PBT9600 with Document Capture is a high-performance industrial cordless barcode scanner engineered for document management, wide-angle code capture, and advanced 1D/2D barcode decoding. This Bluetooth® 5.0-enabled device provides the freedom to move wirelessly up to 100 metres, perfect for high-volume operations in warehousing, manufacturing, logistics, and parcel processing.
Equipped with a document capture optic and colour sensor, this model is ideal for applications requiring more than just barcode scanning — including document imaging, form identification, and visual verification. With Datalogic’s wireless charging, removable battery, IP67/IP65 sealing, and ultra-rugged drop resistance, this scanner ensures continuous uptime even in the most challenging environments.
The PowerScan PBT9600 combines modular connectivity, ergonomic handling, and Datalogic-exclusive technologies like 3GL™ visual indicators and Motionix™ motion sensing, making it a future-ready solution for industrial-grade scanning.
Product Features
- Advanced Document Capture optics for wide-angle and visual scanning needs
- Bluetooth® 5.0 Class 1 wireless with up to 100 m range
- Inductive wireless charging eliminates contacts and maintenance issues
- Ultra-rugged build withstands 2.5 m drops, IP65/IP67 rated
- Modular base supports USB, RS-232, and Industrial Ethernet connections
- 3350 mAh removable battery delivers up to 80,000 scans per charge
- Datalogic 3GL™, Green Spot, and loud beeper for easy read confirmation
- Colour sensor for enhanced document scanning capability
- Motionix™ technology activates scanner based on movement
- Ideal for industries like logistics, manufacturing, warehouse automation, and parcel sorting
Product Specifications
Specification | Details |
Model | PBT9600 – Document Capture |
Scan Technology | 2D Imager with Document Capture and Colour Sensor |
Connectivity | Bluetooth® 5.0 Class 1 (SPP, HID profiles) |
Radio Range | Up to 100 m (open air) |
Battery | Removable 3350 mAh Lithium-Ion |
Reads per Charge | Approx. 80,000 |
Charging Method | Wireless inductive charging |
IP Rating | IP65/IP67 |
Drop Resistance | Withstands 2.5 m drops |
Interfaces (via Base) | USB, RS-232, Ethernet, Industrial Protocols |
Scan Capability | 1D, 2D, Postal, Stacked, Dot Code, Digimarc |
Colour Sensor | Yes |
Resolution (Max) | 1D: 3 mil; 2D: 6 mil |
Imager Sensor | 1280 x 800 pixels |
Print Contrast Ratio | 15% minimum |
Visual Feedback | 3GL™ LEDs, Green Spot, Beeper, Vibration |
Dimensions | 19.8 x 14.0 x 7.9 cm |
Weight | 415 g |
Operating Temperature | -20 °C to 50 °C |
Charging Temp Range | 0 °C to 40 °C nominal / 35 °C ideal |
Storage Temperature | -40 °C to 70 °C |
Warranty | 3 Years |
Features
- Wireless
- Rugged
- Handheld
- 2D
- Bluetooth
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
