Description

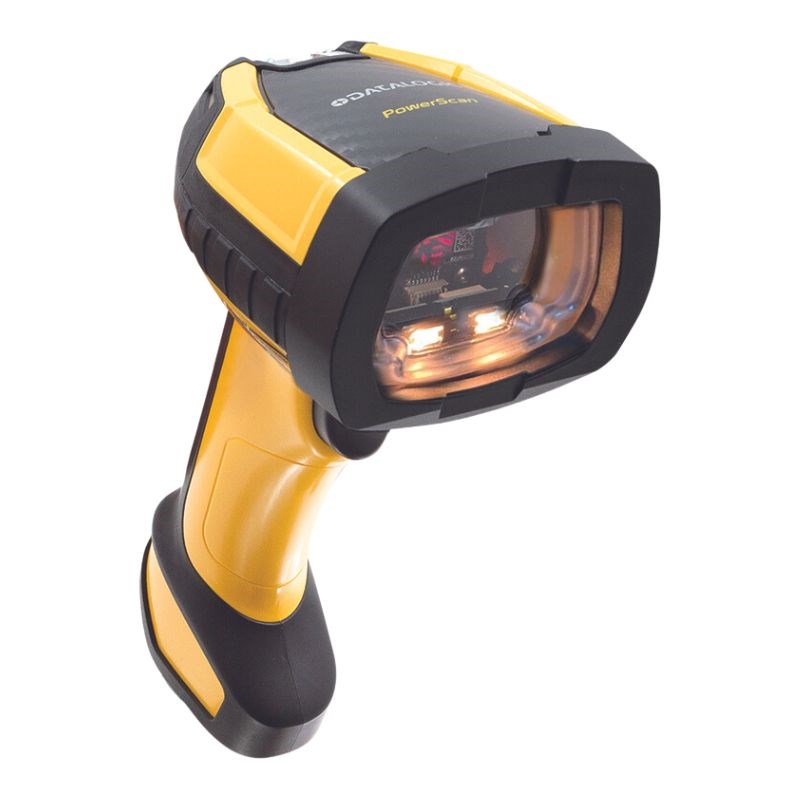

The Datalogic PowerScan PBT9600 Document Capture USB Kit is a top-tier industrial barcode scanning solution designed for high-performance operations in manufacturing, logistics, warehousing, and document tracking environments. This Bluetooth® 5.0-enabled scanner offers advanced document capture capability, perfect for scanning wide-angle barcodes and high-quality imaging of documents.
The kit includes everything required for seamless deployment: the PBT9600-DC scanner, BC9630-BT Bluetooth cradle, USB interface cable (CAB-552), power supply (8-0935), and UK power cord (6003-0940). Featuring wireless charging, removable battery, IP65/IP67 sealing, and drop resistance up to 2.5 metres, it’s built for long-term use in harsh industrial environments.
The modular base allows connection to various interface options, including USB and industrial protocols, providing flexibility across platforms. With Datalogic-exclusive features like 3GL™ (Three Green Lights), Motionix™ technology, and a colour sensor, this scanner enhances user productivity while reducing errors.
Product Features
- Includes: PBT9600-DC Scanner, BC9630-BT Cradle, USB Cable, Power Supply & UK Cord
- Document Capture optics for wide-angle and high-quality document scanning
- Wireless freedom with Bluetooth® 5.0 (100 m range)
- Wireless charging via inductive base – no contacts or pins
- Rugged design: Withstands 2.5 m drops, IP65/IP67 rated
- Modular base supports USB, RS-232, Ethernet & industrial protocols
- Removable 3350 mAh battery provides up to 80,000 scans per charge
- Bright white LED illumination and colour sensor for document clarity
- 3GL™ technology, beeper, and vibration for instant read confirmation
- Ideal for logistics, WIP tracking, document imaging, parcel sorting & more
Product Specifications
Specification | Details |
Model | PowerScan PBT9600 – Document Capture |
Connectivity | Bluetooth® 5.0, USB (via Cradle) |
Range (Bluetooth) | Up to 100 m (open space) |
Scan Technology | 2D Area Imager with Document Capture & Colour Sensor |
Charging Method | Wireless Inductive (Cradle-based) |
Battery | Removable 3350 mAh Lithium-Ion |
Reads per Charge | Up to 80,000 |
Drop Resistance | Up to 2.5 m |
IP Rating | IP65/IP67; Cradle IP65 |
Resolution | 1D: 3 mil; 2D: 6 mil |
Image Sensor | 1280 x 800 pixels |
Light Source | White LED illumination; Red VLD aiming (630–680 nm) |
Visual Feedback | 3GL™ (LEDs), Green Spot, Vibration, Beeper |
Dimensions (HxLxW) | 19.8 x 14.0 x 7.9 cm |
Weight (Scanner) | Approx. 415 g |
Operating Temperature | -20 °C to 50 °C |
Charging Temperature | 0 °C to 40 °C nominal (ideal: 0 °C to 35 °C) |
Storage Temperature | -40 °C to 70 °C |
Interfaces (via Cradle) | USB, RS-232, Ethernet, Industrial Ethernet |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- Bluetooth
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
