Description

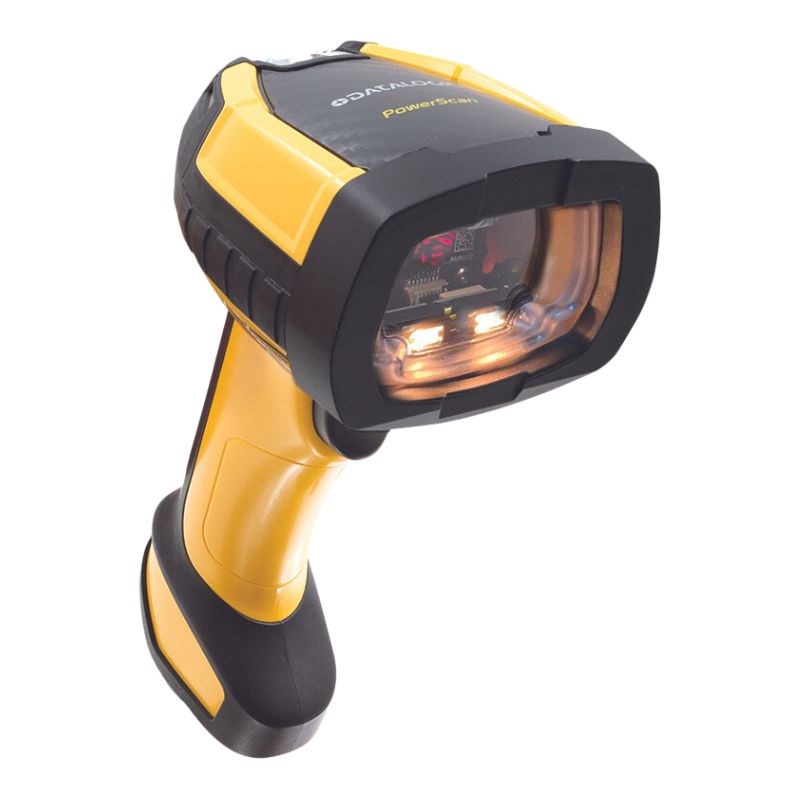

The Datalogic PowerScan PBT9600-SR Bluetooth RS-232 Kit is a powerful and ultra-rugged industrial barcode scanner solution, ideal for demanding environments in logistics, warehousing, and manufacturing. Equipped with Bluetooth® 5.0 wireless connectivity, this scanner ensures seamless communication over distances up to 100 metres.
This Standard Range (SR) model offers quick and precise 1D/2D barcode scanning at intuitive distances, while the wireless charging system reduces mechanical wear and increases device longevity. The kit includes the PBT9600-SR scanner, BC9630-BT cradle, RS-232 cable (CAB-548), 8-0935 power supply, and 6003-0940 UK power cord – all you need to deploy in industrial environments.
With IP65/IP67 sealing, a removable battery, and drop resistance up to 2.5 metres, the PBT9600-SR is purpose-built to thrive in tough conditions. Its modular cradle supports various industrial interfaces for flexible integration into your existing setup.
Product Features
- Complete kit: Scanner, Bluetooth cradle, RS-232 cable, power supply, UK cord
- Standard Range (SR) scanner for fast 1D/2D decoding at intuitive distances
- Bluetooth 5.0 communication with 100m open-air range
- Inductive wireless charging – no contacts or pins to maintain
- Removable 3350 mAh battery – up to 80,000 scans per charge
- Ergonomic, ultra-rugged design – drop-tested from 2.5 metres
- IP65/IP67 sealed against dust and water
- Compatible with RS-232, USB, and Ethernet via modular cradle
- 3GL™ feedback, Green Spot, beeper & vibration for user alerts
- Ideal for warehouse, production, shipping/receiving, and WIP tracking
Product Specifications
Specification | Details |
Model | PowerScan PBT9600-SR (Standard Range) |
Connectivity | Bluetooth® 5.0, RS-232 (via cradle) |
Wireless Range | Up to 100 m (open air) |
Scan Engine | 2D Imager (1D/2D/Stacked/Postals) |
Charging Method | Wireless inductive (via cradle) |
Battery Type | Removable Lithium-Ion 3350 mAh |
Battery Life | Up to 80,000 reads per full charge |
Drop Resistance | Up to 2.5 m |
IP Rating | IP65/IP67; Cradle IP65 |
Resolution (Max) | 1D: 3 mil; 2D: 6 mil |
Sensor Resolution | 1280 x 800 pixels |
Light Source | Red Aimer (630–680 nm), White LED illumination |
Visual Indicators | Beeper, Vibration, 3GL™ (Green LEDs), Green Spot |
Weight (Scanner) | Approx. 415 g |
Dimensions (HxLxW) | 19.8 x 14.0 x 7.9 cm |
Operating Temperature | -20 °C to 50 °C |
Storage Temperature | -40 °C to 70 °C |
Interfaces via Cradle | RS-232, USB, Ethernet, Industrial Protocols |
Certifications | EU RoHS, China RoHS, R.E.A.C.H. |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- Serial/RS232
- Bluetooth
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
