Description

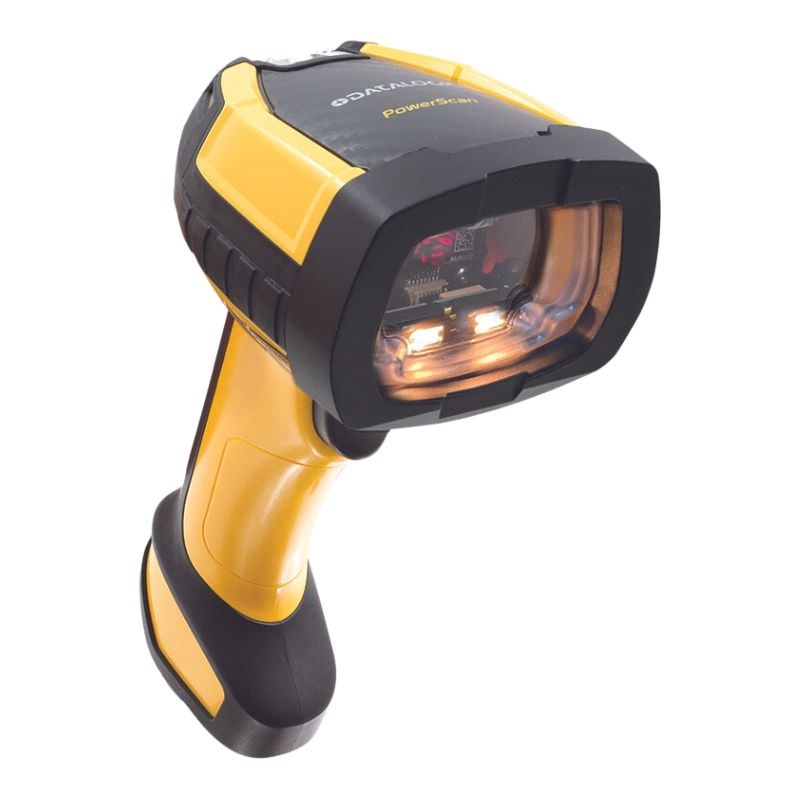

The Datalogic PowerScan PBT9600-SR USB Kit is an ultra-rugged cordless barcode scanning solution designed to withstand the harshest industrial and warehouse environments. With Bluetooth® 5.0 wireless technology and Datalogic’s modular BC9620-BT cradle, this scanner delivers seamless data capture and versatile connectivity, supporting USB, RS-232, and Ethernet interfaces.
This Standard Range (SR) variant offers fast and intuitive scanning of 1D, stacked, 2D, and postal codes at typical working distances. Built with inductive wireless charging, IP65/IP67 protection, a long-life lithium-ion battery, and ergonomic weight distribution, the PowerScan PBT9600 ensures long-term reliability and operator comfort in demanding workflows.
The kit includes everything you need to get started: the PBT9600-SR scanner, BC9620-BT cradle, CAB-438 USB cable, 8-0935 power supply, and UK power cord 6003-0941.
Product Features
- Complete kit with scanner, cradle, USB cable, power supply & UK cord
- Bluetooth 5.0 Class 1/2/3 with up to 100 m range (open air)
- Standard Range area imager for fast 1D/2D barcode capture
- Wireless inductive charging for reduced maintenance and longer device life
- IP65 and IP67 sealing for maximum protection against dust and water
- Withstands up to 50 drops from 2.5 metres on concrete
- Modular BC9600 cradle with expandable interface options
- Lithium-ion 3350 mAh battery with up to 80,000 reads per charge
- Datalogic’s 3GL™, Green Spot, beeper, and vibration feedback for intuitive use
- Compatible with industrial, warehouse, and logistics workflows
Product Specifications
Specification | Details |
Scan Engine | 2D Imager – Standard Range |
Connectivity | Bluetooth 5.0 (Class 1/2/3), USB (via cradle) |
Radio Range | Up to 100 m (open air with cradle) |
Battery | Removable 3350 mAh Li-ion; up to 80,000 reads per charge |
Charging | Inductive wireless charging via cradle |
Drop Resistance | Up to 2.5 m (50 drops) |
IP Rating | IP65/IP67; Cradle IP65 |
Decode Capability | 1D, 2D, Stacked, Postal, GS1, and Digimarc (HP/DC models only) |
Imager Sensor | 1280 x 800 pixels |
Reading Angle | Pitch: ±52°; Roll: 360°; Skew: ±52° |
Field of View | 38° H, 24° V |
Light Source | Aimer: 630–680 nm VLD; Illumination: White LED |
Resolution (Max) | 1D: 3 mil; 2D: 6 mil |
Dimensions (HxLxW) | 19.8 x 14.0 x 7.9 cm |
Weight | Approx. 415 g |
Operating Temperature | -20°C to 50°C |
Interfaces (via Cradle) | USB, RS-232, Ethernet, Industrial Protocols |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Bluetooth
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
