Description

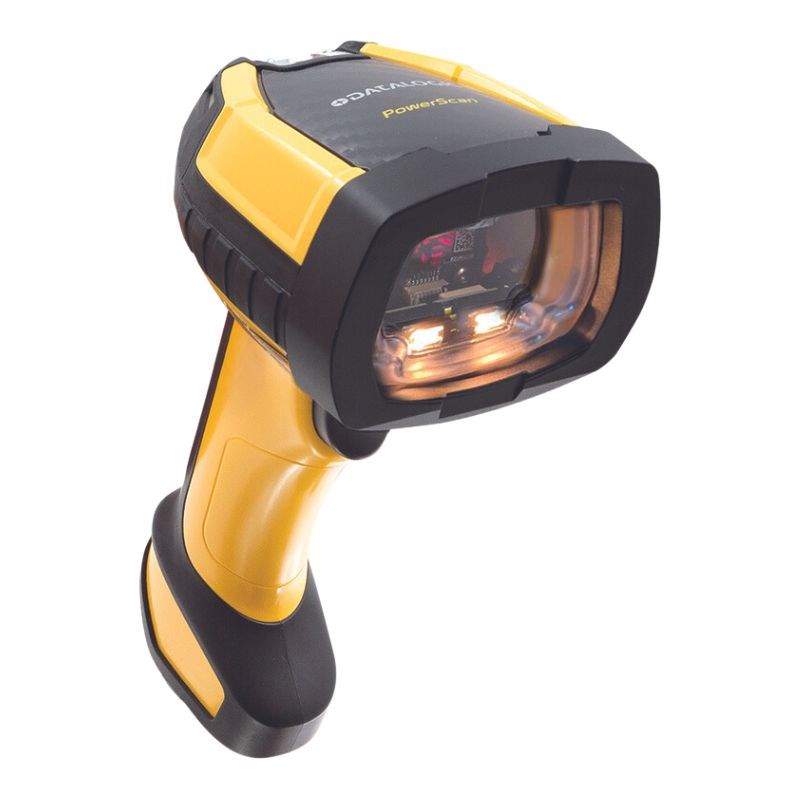

The Datalogic PowerScan PBT9600 Standard Range Bluetooth USB Kit delivers high-performance scanning in rugged industrial environments. Equipped with Bluetooth® 5.0, this ultra-durable cordless scanner offers seamless wireless connectivity up to 100 metres, allowing complete freedom of movement in manufacturing, warehouse, and logistics operations.
The Standard Range (SR) optics are ideal for intuitive barcode scanning at common working distances. Combined with inductive wireless charging, IP67/IP65 sealing, and an ergonomic, balanced design, the PBT9600 ensures maximum uptime and operator comfort in the toughest working conditions.
The included BC9620-BT cradle, CAB-438 USB cable, power supply, and UK power cord provide a complete and easy-to-deploy scanning solution tailored for demanding workflows.
Product Features
- Complete kit: Scanner, Bluetooth cradle, USB cable, power supply & UK cord
- Standard Range optics for intuitive near-to-mid-range scanning
- Bluetooth 5.0 connectivity up to 100 m (open air)
- Inductive wireless charging – no exposed pins or contacts
- 3350 mAh removable lithium-ion battery for 80,000 scans per charge
- Built to endure harsh environments with IP67/IP65 sealing
- Withstands up to 50 drops from 2.5 metres
- Datalogic 3GL™, Green Spot, beeper, and vibration for good-read feedback
- Modular cradle design supports USB, RS-232, and Ethernet communication
- Perfect for logistics, warehouse operations, and industrial manufacturing
Product Specifications
Specification | Details |
Model | PowerScan PBT9600-SR (Standard Range) |
Connectivity | Bluetooth® 5.0, USB (via cradle) |
Wireless Range | Up to 100 m (open air) |
Scan Engine | 2D Imager – Standard Range |
Charging Method | Wireless inductive (via cradle) |
Battery Type | Removable Lithium-Ion 3350 mAh |
Battery Life | Up to 80,000 reads per charge |
Drop Resistance | Up to 2.5 m |
IP Rating | IP65/IP67; Cradle IP65 |
Resolution (Max) | 1D: 3 mil; 2D: 6 mil |
Sensor Resolution | 1280 x 800 pixels |
Light Source | Red Aimer (630–680 nm), White LED illumination |
Indicators | Beeper, Vibration, 3GL™, Green Spot, Dual LEDs |
Weight (Scanner) | Approx. 415 g |
Dimensions (HxLxW) | 19.8 x 14.0 x 7.9 cm |
Operating Temperature | -20 °C to 50 °C |
Storage Temperature | -40 °C to 70 °C |
Interfaces via Cradle | USB, RS-232, Ethernet, Industrial Protocols |
Environmental Compliance | EU RoHS, China RoHS, REACH |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Bluetooth
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
