Description

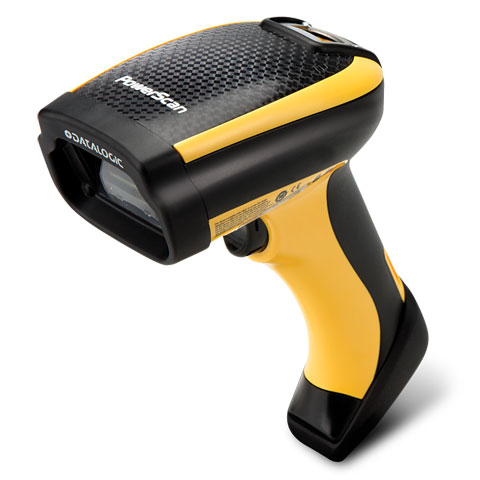

The Datalogic PowerScan PD9130 is a rugged corded industrial barcode scanner that combines the laser-like precision of a green scanning line with the powerful performance and durability of a linear imager. Designed for high-throughput environments like manufacturing floors and warehouse operations, the PD9130 delivers exceptional 1D barcode decoding, even on low-quality labels.
Equipped with multi-interface support (USB, RS-232, and Keyboard Wedge), this scanner offers maximum flexibility for seamless integration into existing systems. The ergonomic design ensures user comfort during extended use, while IP65-rated sealing and drop resistance up to 2 metres make it an ideal solution for harsh environments.
Featuring Datalogic’s 3GL™ (Three Green Lights) technology and the iconic ‘Green Spot’ feedback system, operators get clear confirmation of every successful read. It’s built to last, easy to configure via Datalogic Aladdin™ software, and is backed by a 3-year factory warranty.
Product Features
- Green laser-like scanning line with imager benefits
- Corded linear imager with multi-interface: USB, RS-232, Keyboard Wedge
- Reads 1D barcodes down to 2.5 mils resolution
- Datalogic’s 3GL™ good-read confirmation and Green Spot technology
- Ergonomic, balanced design for comfort during long scanning sessions
- IP65-rated sealing for dust and water protection
- Withstands 50 drops from 2.0 metres to concrete
- Immune to ambient light and direct sunlight
- In-field replaceable front window for reduced downtime
- Supported by Datalogic Aladdin™ for easy configuration
Product Specifications
Specification | Details |
Model | Datalogic PowerScan PD9130 |
Scan Technology | Linear Imager with green LED scanning line |
Connectivity | Corded – Multi-Interface (USB, RS-232, Keyboard Wedge) |
Supported Barcodes | 1D only – incl. Code 128, Code 39, UPC/EAN, Interleaved 2 of 5 |
Resolution (Maximum) | 2.5 mils |
Print Contrast Ratio | 15% minimum |
Reading Confirmation | 3GL™, Green Spot, Dual LEDs, Beeper |
Drop Resistance | 50 drops from 2.0 m / 6.6 ft |
Sealing Rating | IP65 |
Operating Temperature | -20°C to 50°C |
Ambient Light Immunity | Immune to sunlight and indoor light exposure |
Reading Angles | Pitch: ±75°, Skew: ±70°, Roll: ±45° |
Typical Reading Ranges | EAN-13: Up to 61 cm; Code 39 (40 mil): up to 230 cm |
Dimensions (HxLxW) | 21.2 x 11.0 x 7.4 cm |
Weight | 340 g / 11.9 oz |
Colour | Yellow/Black |
Configuration Utility | Datalogic Aladdin™ |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Rugged
- Handheld
- 1D
- USB
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP65
- Logistics/Warehouse
- 3 Years
- New
