Description

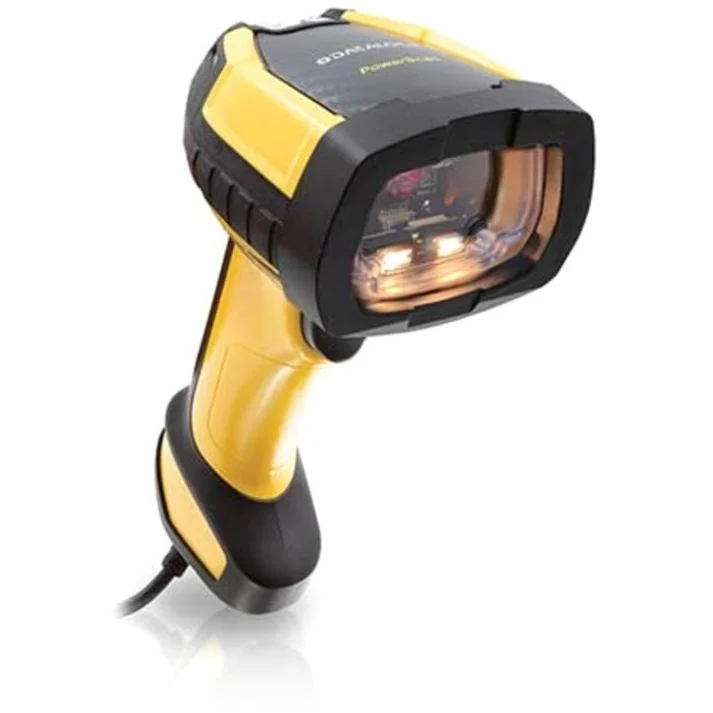

The Datalogic PowerScan PD9630-AR USB Kit offers industry-leading auto range scanning performance in the most demanding environments. Designed for flexibility and reach, the PD9630-AR features Auto Range (AR) optics, enabling it to scan 1D and 2D barcodes from contact to several metres away—ideal for logistics, warehouses, and manufacturing applications.
This USB kit includes the PowerScan PD9630-AR scanner and CAB-553 USB cable, allowing easy connection to any USB-enabled host system. The scanner is engineered with an ultra-rugged IP65/IP67 housing, withstands 50 drops from 2.5 metres, and is ergonomically designed to reduce operator fatigue during long shifts.
Equipped with Datalogic’s exclusive 3GL™ technology, a loud beeper, and vibration feedback, the PD9630-AR ensures accurate data capture in noisy or fast-paced environments. The scanner uses Motionix™ motion-sensing technology to automatically switch between handheld and presentation modes, enhancing operational speed and convenience.
Product Features
- Includes CAB-553 USB cable – plug and play with modern USB interfaces
- Auto Range scanning from close range to extended distances
- Reads 1D, 2D, postal, stacked, and Digimarc (HP/DC only) barcodes
- Rated IP65/IP67 – designed for industrial-grade dust and water resistance
- Survives 50 drops from 2.5 metres and 10 million trigger pulls
- 3GL™ visual indicators, vibration, and beeper for reliable read feedback
- Motionix™ technology for automatic switching to presentation mode
- Comfortable, ergonomic grip for reduced operator fatigue
- Aiming frame and white LED lighting for enhanced target precision
- 3-year factory warranty for peace of mind
Product Specifications
Specification | Details |
Model | PowerScan PD9630-AR |
Kit Contents | Scanner + CAB-553 USB Cable |
Scan Engine | Area Imager with Auto Range optics |
Supported Barcodes | 1D, 2D, postal, stacked, Digimarc (HP/DC only) |
Interface | USB |
Connectivity | Corded |
Scan Range | Contact to extended distances (>2.0 m depending on barcode) |
Feedback Mechanism | 3GL™, Green Spot, Vibration, Beeper, Dual LEDs |
Motion Sensing | Datalogic Motionix™ |
Sealing | IP65 / IP67 |
Drop Resistance | 2.5 m / 8.2 ft (50 drops at 20°C) |
Trigger Life | 10 million activations |
Ambient Light Tolerance | 0 – 100,000 lux |
Operating Temperature | -20°C to 50°C |
Storage Temperature | -40°C to 70°C |
Print Contrast | Minimum 15>#/span### |
Field of View | 38° H x 24° V (AR shares same optics profile as HP) |
Resolution | 1D: 2.5 mil; 2D: 4 mil (Auto Range assumed HP performance) |
Dimensions (H x L x W) | 19.0 x 14.0 x 7.9 cm |
Weight | 318 g / 11.2 oz |
Colour | Yellow/Black |
Warranty | 3-Year Factory Warranty |
