Description

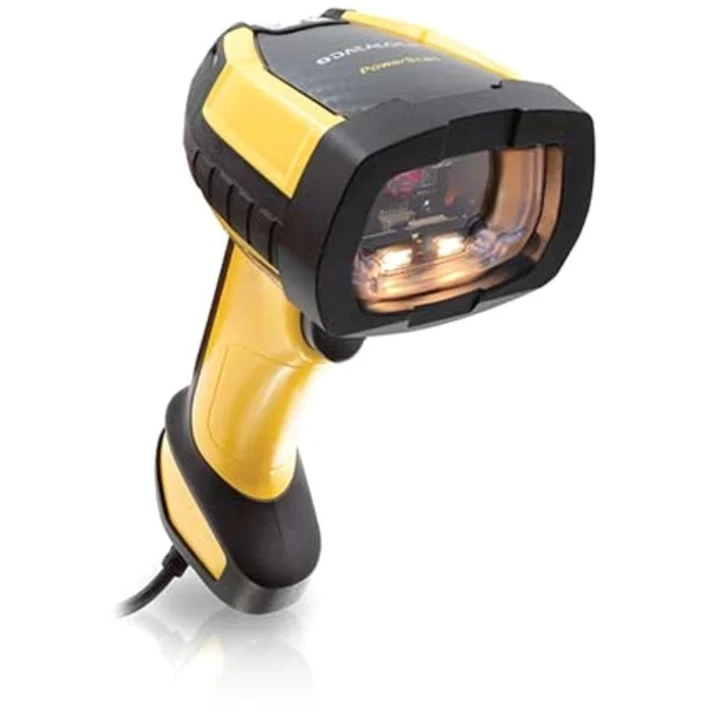

The Datalogic PowerScan PD9630-DC is a high-performance industrial barcode scanner designed for document capture and wide-angle barcode scanning in the most demanding environments. With a colour sensor and wide field of view, this scanner is ideal for document management, image capture, and large-format code reading in manufacturing, logistics, and warehouse applications.
Built with IP65/IP67 sealing, this ultra-rugged device can endure harsh conditions including extreme temperatures, heavy dust, and water exposure. Featuring USB and RS-232 multi-interface compatibility, the PD9630-DC provides seamless integration with various system setups.
Operators benefit from Motionix™ auto-sensing technology, intuitive targeting with Datalogic’s frame aimer, and multiple feedback mechanisms including the 3GL™ (Three Green Lights), beeper, vibration, and green spot – ensuring consistent first-pass reads and reduced errors.
Product Features
- Document Capture (DC) model with wide-angle lens and colour imager
- Multi-interface support: USB & RS-232
- Reads 1D, 2D, postal codes, stacked, and Digimarc® symbologies
- Optimised for image capture and large document barcodes
- Rated IP65/IP67 for maximum protection against dust and water
- Designed to withstand 50 drops from 2.5 metres and 10 million trigger activations
- Datalogic Motionix™: auto-detects handheld or hands-free mode
- Intuitive 'frame' aimer with white LED illumination
- Green Spot, beeper, vibration, and dual good-read LEDs for feedback
- Backed by a 3-year factory warranty
Product Specifications
Specification | Details |
Model | PowerScan PD9630-DC |
Interface | Multi-interface: USB & RS-232 |
Sensor Type | 1280 x 800 Colour Area Imager |
Field of View | 50° Horizontal, 33° Vertical |
Supported Symbologies | 1D, 2D, Postal, Stacked, Digimarc |
Feedback | 3GL™ (Three Green Lights), Green Spot, Beeper, Vibration |
Scan Range | From contact up to over 2.0 m (dependent on code type) |
Motion Sensing | Datalogic Motionix™ |
Illumination | White LED with 630–680 nm VLD aimer |
Print Contrast | Minimum 15% |
Durability | 50 drops from 2.5 m; 10 million trigger actuations |
IP Rating | IP65 / IP67 |
Ambient Light Tolerance | 0 – 100,000 lux |
Operating Temperature | -20°C to 50°C |
Storage Temperature | -40°C to 70°C |
Dimensions (H x L x W) | 19.0 x 14.0 x 7.9 cm |
Weight | 318 g / 11.2 oz |
Colour | Yellow/Black |
Regulatory Compliance | China RoHS, EU RoHS, REACH, CDRH Class II, IEC 60825 Class 2 |
Utilities | Datalogic Aladdin™, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Rugged
- Handheld
- 2D
- USB
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
