Description

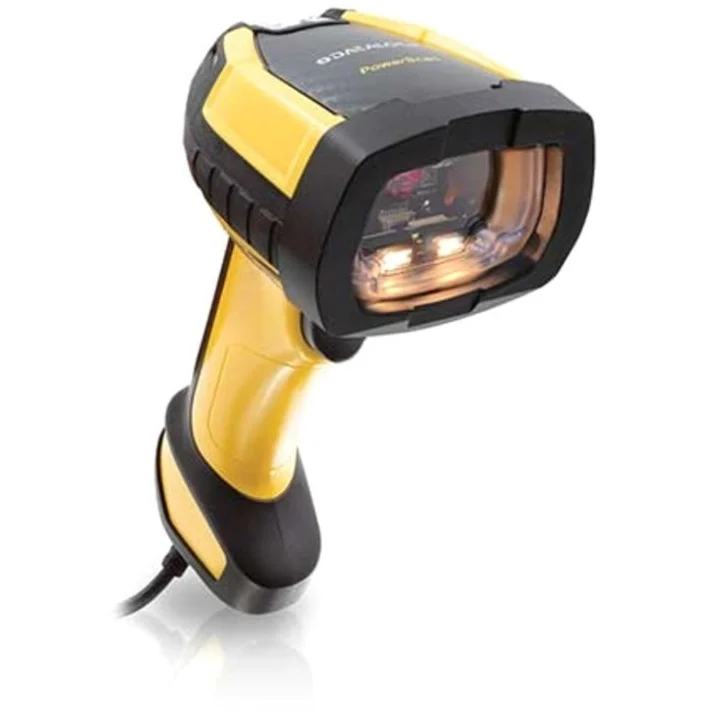

The Datalogic PowerScan PD9630-HP is a high-performance industrial barcode scanner engineered for superior accuracy and extended range in challenging environments. Featuring multi-interface support (USB and RS-232), this corded 1D/2D area imager is ideal for users needing to scan both high-density barcodes and codes from greater distances.
Equipped with High Performance optics, it delivers enhanced decoding of low-contrast and small barcodes, while its IP65/IP67-rated enclosure, 10 million trigger life, and ability to withstand 2.5m drops make it the ultimate scanning tool for manufacturing, warehousing, and logistics applications.
With Motionix™ motion-sensing, intuitive frame aimer, and 3GL™ feedback (Three Green Lights) including Datalogic’s iconic Green Spot, the PD9630-HP ensures fast, accurate, and effortless scanning, reducing operator fatigue in high-volume environments.
Product Features
- High Performance (HP) optics for reading high-density and long-range barcodes
- Supports USB and RS-232 interfaces with plug-and-play versatility
- Omnidirectional scanning of 1D, 2D, stacked, postal, and Digimarc barcodes
- IP65/IP67 sealing for protection against dust and water
- Drop-tested up to 2.5 metres, built for extreme industrial use
- Ergonomic, balanced design reduces strain during extended use
- Instant scan feedback via 3GL™, Green Spot, vibration, and adjustable beeper
- Datalogic Motionix™ enables automatic mode switching (handheld/presentation)
- Reads barcodes from contact to over 2.4 metres (depending on symbol type)
- Backed by a robust 3-year factory warranty
Product Specifications
Specification | Details |
Model | PowerScan PD9630-HP |
Scan Engine | 1280 x 800 Area Imager – High Performance |
Barcodes Supported | 1D, 2D, postal, stacked, Digimarc |
Interfaces | USB, RS-232 (Multi-Interface) |
Connectivity | Corded |
Scan Range | Extended range (up to 2.4 m) |
Feedback Indicators | 3GL™, Green Spot, Beeper, Dual LEDs, Vibration |
Motion Sensing | Datalogic Motionix™ |
Drop Resistance | 50 drops from 2.5 m (at 20 °C) |
Tumble Test | 5,000 cycles @ 1 m |
Trigger Life | 10 million activations |
Sealing | IP65 / IP67 |
Ambient Light | Tolerates up to 100,000 lux |
Temperature Range | Operating: -20°C to 50°C; Storage: -40°C to 70°C |
Light Source | Aiming: 630–680 nm VLD; Illumination: White LED |
Resolution (Max) | 1D: 2.5 mil; 2D: 4 mil |
Print Contrast | Minimum 15>#/span### |
Field of View | 38° H x 24° V |
Dimensions (HxLxW) | 19.0 x 14.0 x 7.9 cm |
Weight | 318 g / 11.2 oz |
Colour | Yellow/Black |
Configuration Utility | Datalogic Aladdin™ |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Rugged
- Handheld
- 2D
- USB
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
