Description

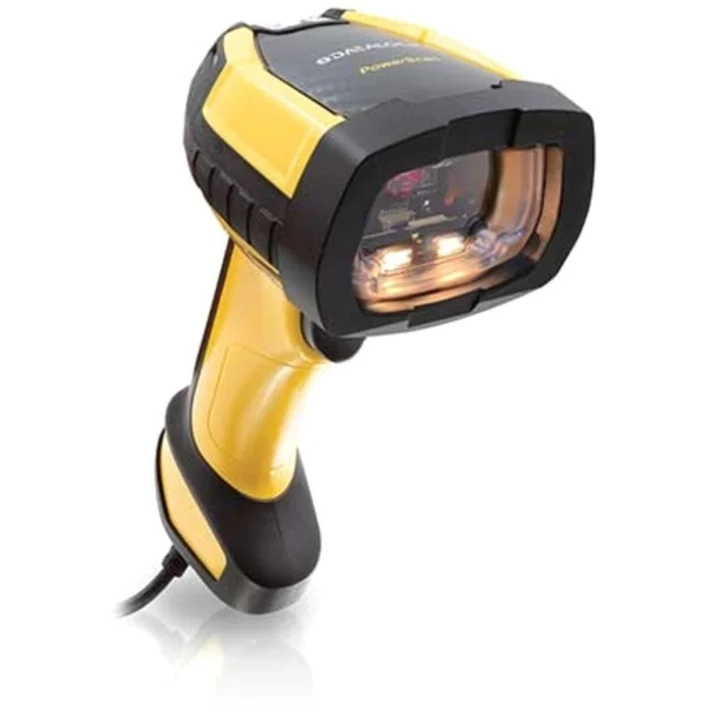

The Datalogic PowerScan PD9630-HP USB Kit offers high performance scanning in a rugged and ergonomic design, purpose-built for the harshest industrial environments. Featuring advanced area imaging technology, the PD9630-HP excels at decoding high-density 1D and 2D barcodes at an extended depth of field, making it ideal for precision-driven applications in manufacturing, logistics, and warehouse operations.
This USB kit includes the PD9630-HP scanner and a USB cable (CAB-553) for quick plug-and-play connectivity. Designed with Datalogic’s Motionix™ motion-sensing technology, it adapts seamlessly between handheld and presentation modes. Its intuitive ‘frame’ aimer and enhanced 3GL™ feedback system—including Green Spot, dual LEDs, and vibration—ensure fast, accurate, and visible reads in any setting.
Engineered to survive the most punishing conditions, the PD9630-HP withstands 50 drops from 2.5m, has IP67 and IP65 sealing, and offers 10 million trigger activations for maximum return on investment.
Product Features
- High performance area imager with extended range and support for high-density barcodes
- Reads 1D, 2D, stacked, postal, and Digimarc barcodes
- Robust and ergonomic design with IP67/IP65 sealing and 2.5m drop resistance
- Advanced 3GL™ system: Green Spot, dual LEDs, vibration, and beeper
- Motionix™ technology auto-switches between handheld and presentation modes
- Illuminated by white LED light with 1280 x 800 imager sensor
- Reads low contrast codes with as little as 15% print contrast
- Includes USB cable (CAB-553) for simple, reliable connectivity
- Ideal for demanding applications in manufacturing, logistics, and shipping
- Backed by a 3-year factory warranty for long-term confidence
Product Specifications
Specification | Details |
Model | PowerScan PD9630-HP |
Scan Engine | 1280 x 800 Area Imager – High Performance |
Barcodes Supported | 1D, 2D, stacked, postal, Digimarc |
Interface | USB (includes CAB-553 USB cable) |
Connectivity | Corded |
Motion Detection | Datalogic Motionix™ |
Typical Depth of Field | Up to 2.42 m depending on code (e.g., Code 128, EAN-13) |
Feedback Indicators | Beeper, Green Spot, 3GL™, Dual LEDs, Vibration |
Drop Resistance | 50 drops from 2.5 m (at 20°C); 2.0 m (at -20°C) |
Tumble Test | 5,000 tumbles @ 1 m |
Trigger Life | 10 million activations |
Sealing | IP65 / IP67 |
Temperature Range | Operating: -20°C to 50°C; Storage: -40°C to 70°C |
Ambient Light Tolerance | 0 to 100,000 lux |
Dimensions (HxLxW) | 19.0 x 14.0 x 7.9 cm |
Weight | 318 g / 11.2 oz |
Light Source | Aiming: 630–680 nm VLD; Illumination: White LED |
Resolution (Maximum) | 1D: 2.5 mil; 2D: 4 mil |
Print Contrast Ratio | Minimum 15% |
Configuration Utility | Datalogic Aladdin™ |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Rugged
- Handheld
- 2D
- USB
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
