Description

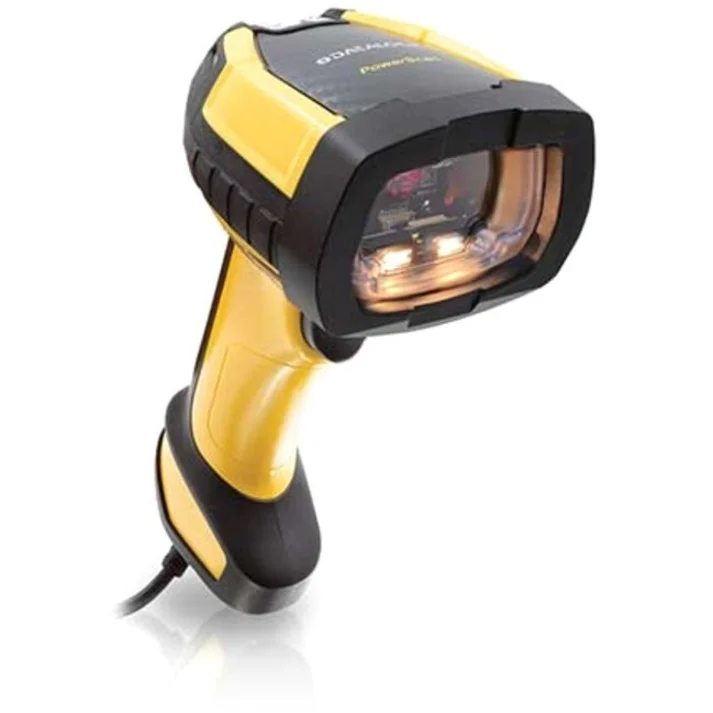

The Datalogic PowerScan PD9630-SR RS-232 Kit is a robust, corded barcode scanner tailored for industrial-grade applications requiring reliable performance under the harshest conditions. This model offers standard range scanning for 1D and 2D barcodes using an advanced area imager, perfect for manufacturing, warehousing, logistics, and shop floor environments.
The kit includes the PD9630-SR scanner and an RS-232 communication cable (CAB-549), enabling seamless integration into legacy systems that still depend on serial connectivity. The scanner features IP65/IP67 sealing, 10 million trigger activations, and drop resistance up to 2.5m, ensuring long-term durability in rugged operations.
Equipped with Datalogic’s 3GL™ (Three Green Lights) technology, Green Spot feedback, loud beeper, and vibration, the PD9630-SR provides exceptional feedback in any lighting or noise condition. Its ergonomic shape with balanced weight helps reduce operator fatigue during continuous use, while Motionix™ technology intelligently detects movement to switch between handheld and presentation modes.
Product Features
- Industrial-grade corded 2D barcode scanner with RS-232 interface
- Fast and precise omnidirectional scanning up to 2.0 m
- Decodes all major 1D, 2D, stacked, and postal barcodes
- Equipped with Datalogic’s 3GL™, Green Spot, dual LEDs, and beeper
- Built to withstand 50 drops from 2.5 metres and 10 million trigger pulls
- IP65 and IP67 rated for dust, water, and impact resistance
- Motionix™ technology enables automatic mode switching
- Features white LED illumination and an intuitive 'frame' aimer
- Kit includes RS-232 Cable (CAB-549) for legacy system support
- Optimised for warehouse, logistics, shipping, and shop floor use
Product Specifications
Specification | Details |
Model | PowerScan PD9630-SR |
Scan Engine | 1280 x 800 Area Imager – Standard Range |
Barcodes Supported | 1D, 2D, stacked, postal codes |
Interface | RS-232 (includes CAB-549 serial cable) |
Connectivity | Corded |
Motion Detection | Datalogic Motionix™ |
Depth of Field | Up to 2.0 m (based on code type and resolution) |
Feedback Indicators | Beeper, Green Spot, 3GL™, Dual LEDs, Vibration |
Drop Resistance | 50 drops from 2.5 m (at 20°C); 2.0 m (at -20°C) |
Tumble Test | 5,000 tumbles @ 1 m |
Trigger Life | 10 million activations |
Sealing | IP65 / IP67 |
Temperature Range | Operating: -20°C to 50°C; Storage: -40°C to 70°C |
Ambient Light Tolerance | 0 to 100,000 lux |
Dimensions (HxLxW) | 19.0 x 14.0 x 7.9 cm |
Weight | 318 g / 11.2 oz |
Light Source | Aiming: 630–680 nm VLD; Illumination: White LED |
Resolution | 1D: 3 mil; 2D: 6 mil |
Print Contrast Ratio | Minimum 15>#/span### |
Configuration Utility | Datalogic Aladdin™ |
Warranty | 3-Year Factory Warranty |
