Description

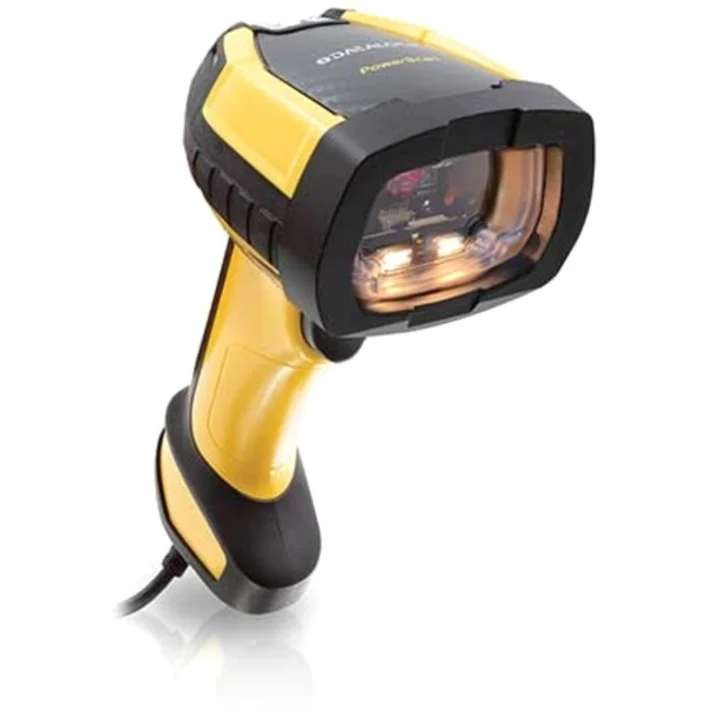

The Datalogic PowerScan PD9630-SR is a high-performance standard range barcode scanner engineered for demanding industrial environments. Built with multi-interface capabilities (USB and RS-232), it delivers superior scanning performance on 1D, 2D, postal, and stacked barcodes, even in harsh manufacturing or warehouse conditions.
Designed for intuitive point-and-shoot scanning, the PD9630-SR incorporates Datalogic’s exclusive 3GL™ (Three Green Lights) technology, Green Spot, and Motionix™ motion sensing to enhance usability, improve scan efficiency, and reduce operator fatigue. With IP65/IP67 sealing, 2.5m drop resistance, and the ability to endure 10 million trigger pulls, this scanner offers the durability and reliability needed in fast-paced industrial settings.
Its ergonomic shape and balanced weight make it ideal for prolonged use in assembly lines, logistics, and work-in-progress tracking. With a standard range optical engine, it is perfect for reading barcodes at typical working distances with speed and accuracy.
Product Features
- Multi-interface support (USB & RS-232) for versatile connectivity
- Standard Range (SR) optics for intuitive near-to-mid range barcode reading
- Reads 1D, 2D, stacked, and postal barcodes with high accuracy
- Rugged design with IP65/IP67 sealing and 2.5m drop resistance
- Enhanced user feedback with 3GL™, Green Spot, dual LEDs, beeper, and vibration
- Motionix™ technology enables automatic mode switching between handheld and presentation
- Withstands 10 million trigger activations for long operational life
- Ergonomic form factor for fatigue-free usage in industrial applications
- Compatible with Datalogic Aladdin™ for easy configuration and management
- Covered by a 3-year factory warranty
Product Specifications
Specification | Details |
Model | PowerScan PD9630-SR |
Scan Engine | 1280 x 800 Area Imager – Standard Range |
Barcodes Supported | 1D, 2D, postal, stacked |
Interfaces | USB, RS-232 (Multi-Interface) |
Connectivity | Corded |
Scan Range | Standard Range (up to 175 cm on 1D codes) |
Feedback Indicators | 3GL™, Green Spot, Dual LEDs, Vibration, Beeper |
Motion Sensing | Datalogic Motionix™ |
Drop Resistance | 50 drops from 2.5 m (20°C) |
Tumble Test | 5,000 cycles @ 1 m |
Trigger Life | 10 million hits |
Sealing | IP65 / IP67 |
Ambient Light Tolerance | 0 to 100,000 lux |
Temperature Range | Operating: -20°C to 50°C; Storage: -40°C to 70°C |
Light Source | Aiming: 630–680 nm VLD; Illumination: White LED |
Resolution (Max) | 1D: 3 mil; 2D: 6 mil |
Print Contrast | Minimum 15% |
Dimensions (HxLxW) | 19.0 x 14.0 x 7.9 cm |
Weight | 318 g / 11.2 oz |
Colour | Yellow/Black |
Configuration Utility | Datalogic Aladdin™ |
Warranty | 3-Year Factory Warranty |
