Description

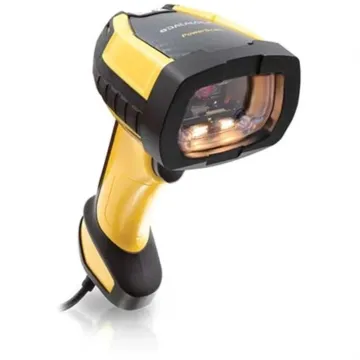

The Datalogic PowerScan PD9630-SR is a rugged, corded industrial-grade barcode scanner designed for long-lasting performance in the most demanding environments. Engineered for reliability and efficiency, this scanner supports 1D, stacked, and 2D barcodes, offering high-speed omnidirectional reading from contact to over 2 metres.
With Datalogic's advanced 3GL™ (Three Green Lights) feedback, loud beeper, and vibration alert, users receive clear confirmation of every successful scan. The ergonomic design and balanced weight distribution significantly reduce wrist strain during continuous operation, making it ideal for high-volume scanning on manufacturing lines, in warehouses, or for logistics applications.
The PD9630-SR’s IP65 and IP67 sealing ratings ensure resistance against dust, water, and harsh impacts. This USB kit includes the scanner and a USB cable (CAB-553), ensuring easy plug-and-play deployment in virtually any industrial system.
Product Features
- Corded standard range area imager with USB interface
- Reads all major 1D and 2D barcodes, including postal codes
- Snappy omnidirectional scanning from contact to over 2.0 metres
- Ergonomic, rugged design for intensive industrial applications
- 3GL™ technology: Green Spot, Dual LEDs, and loud beeper feedback
- IP65 and IP67 rated for water and dust protection
- Withstands 50 drops from 2.5 metres and 10 million trigger hits
- Datalogic Motionix™ for automatic switching between handheld and presentation modes
- White LED illumination for comfortable aiming and fast capture
- Includes USB cable (CAB-553) for quick and easy setup
Product Specifications
Specification | Details |
Model | PowerScan PD9630-SR |
Scan Engine | 1280 x 800 pixel Area Imager – Standard Range |
Barcodes Supported | 1D, 2D, stacked, postal codes, Digimarc (on HP/DC models) |
Connectivity | Corded – USB (includes CAB-553 cable) |
Interfaces Supported | USB, RS-232 (multi-interface capable) |
Motion Detection | Datalogic Motionix™ technology |
Reading Range (SR) | Up to 2.0 m / 6.5 ft (varies by barcode type and size) |
Sealing Rating | IP65 and IP67 |
Drop Resistance | 50 drops from 2.5 m (at 20°C) |
Tumble Test | 5,000 tumbles @ 1 m |
Trigger Life | 10 million activations |
Temperature Range | Operating: -20°C to 50°C; Storage: -40°C to 70°C |
Ambient Light Immunity | 0 to 100,000 lux |
Dimensions (HxLxW) | 19.0 x 14.0 x 7.9 cm |
Weight | 318 g / 11.2 oz |
Feedback Indicators | 3GL™, Green Spot, Dual LEDs, Vibration, Beeper |
Resolution | 1D: 3 mil; 2D: 6 mil |
Light Source | Aiming: 630–680 nm VLD; Illumination: White LED |
Configuration Software | Datalogic Aladdin™ |
Warranty | 3-Year Factory Warranty |
Features
- Wired
- Rugged
- Handheld
- 2D
- USB
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
