Description

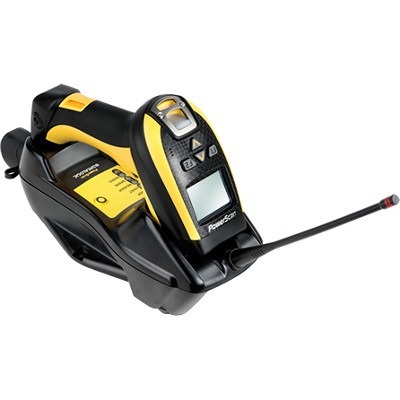

The Datalogic PowerScan PM9100 433RB USB Kit offers an all-in-one industrial-grade scanning solution designed for warehouse, logistics, and manufacturing environments. This kit includes the PM9100 cordless linear imager with removable battery, the BC9030-433 multi-interface base station, USB interface cable, power supply, and UK power cord—ensuring seamless integration right out of the box.
Equipped with Datalogic’s STAR Cordless System™ 2.0, the PM9100 scanner operates on the robust 433 MHz frequency for interference-free communication across extended distances. Its unique green LED-based linear imaging engine provides exceptional 1D barcode scanning performance, even in low-contrast or high-speed applications. With advanced user feedback via 3GL™ (Three Green Lights), long-lasting battery life (50,000+ reads per charge), and IP65 sealing, the PM9100 is engineered for maximum uptime in tough environments.
Product Features
- Complete Kit Included – PM9100-433RB Scanner, BC9030-433 Base Station, CAB-438 USB Cable, Power Supply, UK Power Cord
- STAR Cordless System™ – Operates on 433 MHz frequency for secure, long-range, interference-free communication
- Green LED Linear Imaging – Delivers accurate and fast 1D barcode scanning performance
- 3GL™ Visual Feedback – Dual LEDs and green spot indicator for reliable good-read confirmation
- Cordless Mobility – Radio range up to 100m, ideal for dynamic workflows
- Removable 2150 mAh Li-ion Battery – Supports over 50,000 scans per charge and quick swap for uninterrupted operation
- IP65 Rating – Withstands harsh industrial environments including dust and water
- Drop Resistance – Durable design tested to withstand 2.0m drops to concrete
- Supports Multi-Point Configurations – Connect up to 16 scanners to a single base station
- Compatible Interfaces – USB, RS-232, Keyboard Wedge, and more
- Intuitive Setup – Datalogic Aladdin™ software and plug-and-play USB connectivity
Product Specifications
Specification | Details |
Scan Technology | Green LED-based linear imager |
Radio Frequency | 433 MHz (STAR Cordless System™) |
Radio Range (Open Air) | Up to 100m @ 19.2 KB/s |
Battery | 2150 mAh Removable Li-ion |
Scans per Charge | 50,000+ continuous reads |
Charge Time | 4 hrs (external), 10 hrs (via host) |
Drop Resistance | 2.0m to concrete |
Sealing Rating | IP65 |
Operating Temperature | -20°C to 50°C |
Interfaces Supported | USB (OEM, HID Keyboard, COM), RS-232, RS-485, Keyboard Wedge |
Dimensions (Scanner) | 212 x 110 x 74 mm |
Weight | 405 g |
Good Read Feedback | 3GL™ (Three Green Lights), Beeper, Green Spot |
Resolution | 2.5 mils |
Supported Barcodes | All standard 1D symbologies incl. Code 39, EAN, UPC, Code 128 |
Kit Contents | PM9100-433RB Scanner, BC9030-433 Base, CAB-438 USB Cable, 8-0935 PSU, 6003-0940 UK Cord |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 1D
- USB
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP65
- Logistics/Warehouse
- 3 Years
- New
