Description

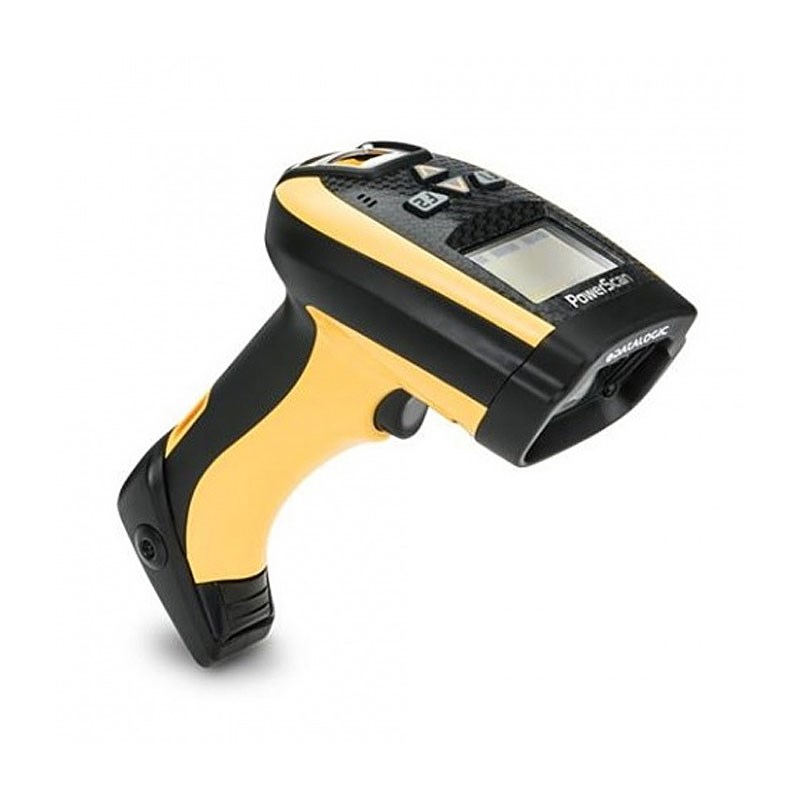

The Datalogic PowerScan PM9100 (910 MHz) cordless linear imager is engineered for rugged, high-performance barcode scanning in demanding industrial environments. Utilising Datalogic’s STAR Cordless System™ 2.0, this scanner delivers interference-free wireless communication at 910 MHz, completely bypassing Bluetooth or Wi-Fi congestion.
The non-EU version of the PM9100 comes equipped with a removable 2150 mAh Li-Ion battery, supporting over 50,000 scans per charge, making it ideal for multi-shift operations. It features 3GL™ (Three Green Lights) visual feedback and loud beeper confirmation for accurate reads in noisy or fast-paced settings.
This model offers superior 1D decoding performance, even on damaged or low-contrast barcodes, and is built with industrial-grade durability to withstand drops, dust, and water—IP65 rated and drop-tested to 2.0 metres.
Product Features
- 910 MHz STAR Cordless System™ 2.0 for long-range, interference-free radio communication
- High-performance 1D linear imaging with green LED scan line
- 3GL™ technology with Green Spot, beeper, and dual LEDs for good-read confirmation
- Removable 2150 mAh battery pack – easy to swap for continuous uptime
- IP65-rated sealing and withstands 50 drops from 2.0 m to concrete
- Reads barcodes down to 2.5 mils resolution
- Supports multiple 1D symbologies, including GS1, Code 128, EAN/UPC, Code 39, and more
- Seamless roaming & multi-point configuration with support for up to 16 scanners per base
- Compatible with Datalogic Aladdin™ software for simple setup and configuration
- Non-EU frequency compliance – ideal for international markets requiring 910 MHz operation
Product Specifications
Specification | Details |
Scanner Type | Cordless 1D Linear Imager |
Wireless Frequency | 910 MHz (STAR Cordless System™ 2.0) |
Battery Type | Removable Li-Ion 2150 mAh |
Scans Per Charge | 50,000+ continuous scans |
Drop Resistance | 2.0 m / 6.6 ft |
Sealing | IP65-rated (dust & water resistant) |
Reading Technology | Green LED “laser-like” linear imaging |
Decoding Capability | All major 1D codes incl. Code 128, EAN, UPC, Code 39, Codabar, MSI, etc. |
Max Resolution | 2.5 mils |
Connectivity Support | Compatible with STAR bases via USB, RS-232, RS-485, and Ethernet |
Radio Range | Up to 400 m @ 36.8 KB/s (open air, frequency hopping) |
Weight | 405 g / 14.2 oz |
Operating Temperature | -20 to +50 °C |
User Interface | Beeper, Green Spot on code, dual LED indicators |
Configuration Tools | Datalogic Aladdin™, OPOS, JavaPOS |
Regulations | Non-EU version, Complies with China RoHS, IEC 62471 |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 1D
- USB
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP65
- Logistics/Warehouse
- 3 Years
- New
