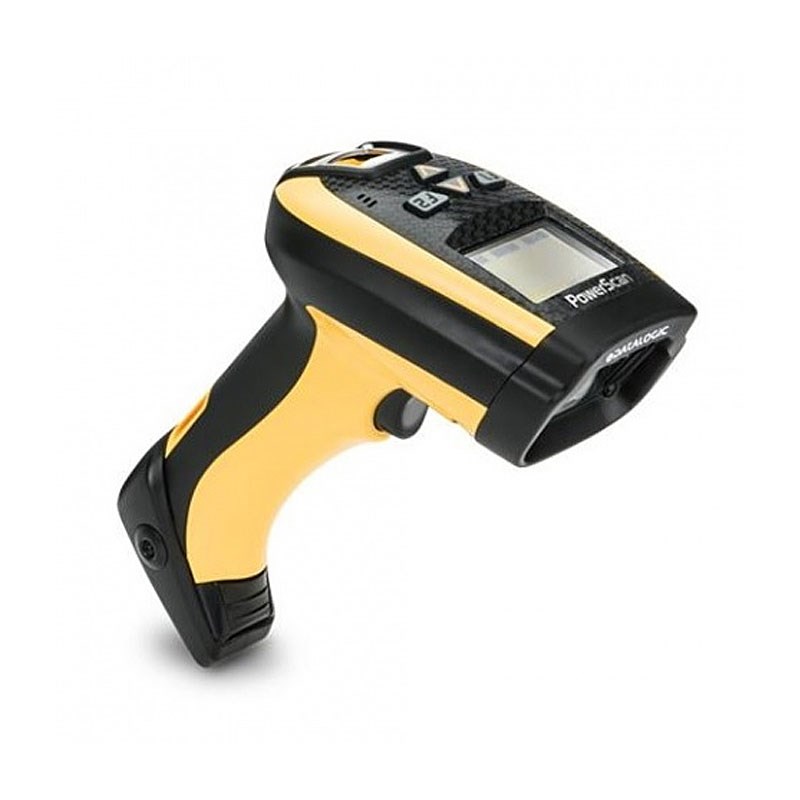

Datalogic PowerScan PM9100 Barcode Scanner Kit – 910 MHz, USB, Cordless Industrial Scanner

Wireless, Rugged, Datalogic, Handheld, 1D, USB, Standard Range, Yellow, Rugged/Heavy Duty, Industrial, IP65, Logistics/Warehouse, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +44 174 960 8334
PM9100-910RBK10

Need Help

Choosing a Product
+44 174 960 8334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic PowerScan PM9100 910RB USB Kit (US Version) is an advanced cordless linear imager scanner designed for demanding industrial environments. Powered by Datalogic’s STAR Cordless System™ 2.0 at 910 MHz, it ensures reliable, long-range communication with zero Wi-Fi or Bluetooth interference, ideal for busy warehouses and manufacturing setups.

This complete kit includes the PM9100-910RB scanner, BC9030-910 multi-interface base station, CAB-438 USB cable, and US power accessories, enabling a seamless plug-and-play connection to USB-based systems. Built with rugged durability, the PM9100 is IP65-rated, drop-resistant to 2.0 metres, and capable of 50,000+ scans per charge.

Product Features

  • 910 MHz STAR Cordless System™ radio for extended-range wireless operation
  • USB kit includes base station (BC9030-910) and USB cable (CAB-438)
  • Cordless 1D linear imager with high decoding performance on poor-quality barcodes
  • 3GL™ (Three Green Lights) technology with audible beeper and Green Spot for good-read feedback
  • User-replaceable 2150 mAh Lithium-Ion battery with fast charging support
  • Industrial-grade durability with IP65 sealing and 2.0 m drop resistance
  • Multi-interface cradle supports USB, RS-232, and keyboard wedge
  • Ideal for warehouses, logistics, retail, and manufacturing operations
  • Compatible with Datalogic Aladdin™ software for configuration and deployment


Product Specifications

Specification

Details

Scanner Type

Cordless 1D Linear Imager

Wireless Frequency

910 MHz STAR Cordless System™

Battery

2150 mAh Removable Lithium-Ion

Battery Life

50,000+ scans per charge

Charging Time

4 hours (external), 10 hours (host-powered)

Base Station

BC9030-910 Multi-Interface USB Cradle

Cable Included

CAB-438 USB Cable

Drop Resistance

2.0 m / 6.6 ft

Sealing Rating

IP65

Operating Temperature

-20°C to +50°C

Weight (Scanner)

405 g / 14.2 oz

Interfaces Supported

USB (COM, HID, OEM), RS-232, RS-485, Keyboard Wedge

Decoding Capability

All major 1D codes incl. GS1, UPC, Code 128, Code 39, EAN, Codabar, etc.

Resolution

Up to 2.5 mils

Radio Range (Open Air)

Up to 400 m @ 36.8 KB/s (frequency hopping)

Read Feedback

3GL™, Green Spot, Dual LEDs, Beeper

Software Tools

Datalogic Aladdin™, OPOS, JavaPOS

Compliance

China RoHS, IEC 62471 LED Safety, US plug/power compatibility

Warranty

3-Year Factory Warranty



Features

Connectivity:
  • Wireless
Ruggedness:
  • Rugged
Brand:
Datalogic
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 1D
Interface:
  • USB
Scan Range:
  • Standard Range
Colour:
  • Yellow
Rugged:
  • Rugged/Heavy Duty
Usage:
  • Industrial
IP Rating:
  • IP65
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (2989-datasheet.pdf, 332 Kb) [Download]
