Description

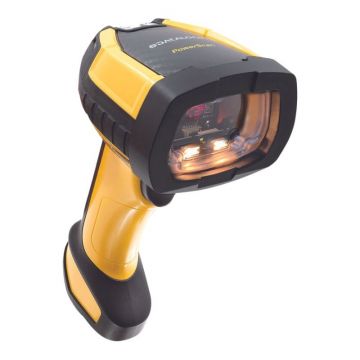

The Datalogic PowerScan PM9501 DPM EVO Kit is purpose-built for demanding industrial environments requiring reliable Direct Part Marking (DPM) barcode reading. Equipped with Bluetooth® wireless technology, this industrial 2D imager delivers untethered performance with robust scanning capabilities and ergonomic comfort. This comprehensive Ethernet kit includes the scanner, base station (BC9180-910), power brick, and power cord – everything you need for high-volume applications across logistics, manufacturing, and distribution.
With advanced omnidirectional reading, soft white illumination, and Datalogic’s patented 3GL™ feedback system, the PM9501 ensures an intuitive and accurate scanning experience. The rugged design is IP65-rated and withstands drops from up to 2 metres, making it ideal for harsh working environments. Its removable battery and quick swap capability support 24/7 operations without downtime.
Product Features
- Omnidirectional reading for effortless scanning from any angle
- Supports 1D, 2D, Postal, and Stacked codes including DPM marks
- Bluetooth® 2.0 Class 1/2 with up to 90 m open-air range
- Ergonomic design with Motionix™ motion-sensing technology
- Soft-pulsed white illumination reduces operator eye strain
- 3GL™ (Three Green Lights) and audible beep for good-read feedback
- IP65-rated enclosure for dust and water protection
- Removable 2150 mAh battery supports extended use
- Quick 3-second battery replacement for continuous workflows
- Includes BC9180-910 Ethernet base station and power components
Product Specifications
Specification | Details |
Model | PM9501 DPM EVO (910 MHz Non-EU) |
Scan Technology | 2D Area Imager, Omnidirectional |
Connectivity | Bluetooth® 2.0 (Class 1/2, configurable) |
Range | Up to 90 m (open air) |
Battery | Lithium-Ion, 2150 mAh, removable |
Reads per Charge | 30,000+ |
Charging Time | 4 hours (external), 10 hours (host power) |
IP Rating | IP65 |
Drop Resistance | Up to 2 m onto concrete |
Decoding Capability | 1D, 2D, DPM, Postal, Stacked, GS1 codes |
Interfaces Supported | USB, RS-232, RS-485, Keyboard Wedge |
OS Compatibility | Windows, Android, iOS (via Bluetooth HID/SPP) |
Weight | 380 g |
Dimensions (Scanner) | 21.2 x 11.0 x 7.4 cm |
Operating Temperature | -20 °C to 50 °C |
Kit Includes | Scanner, Base Station (BC9180-910), Power Brick, Cord |
Warranty | 3 Years |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Bluetooth
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
