Description

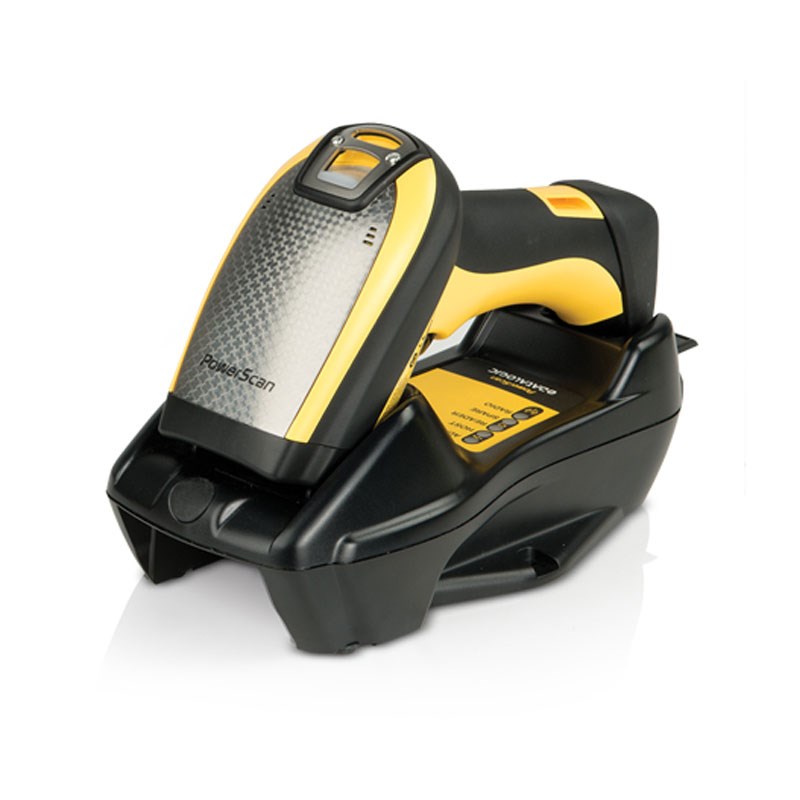

The Datalogic PowerScan PM9501 DPM Evo is a top-tier rugged industrial 2D barcode scanner built for Direct Part Marking (DPM) applications in challenging environments. Featuring 433 MHz narrowband STAR Cordless System™ radio communication, this device ensures reliable and interference-free data transmission without relying on Wi-Fi or Bluetooth.
Optimised for the automotive, aerospace, and manufacturing industries, the PM9501 effortlessly reads laser-etched, dot-peened, and ink-marked codes directly from metal, plastic, or other textured surfaces. Its robust build quality includes IP65 sealing, resistance to multiple 2.0m drops, and functionality in extreme temperatures.
A removable lithium-ion battery powers over 30,000 scans per charge, with rapid 3-second replacements to maintain uninterrupted productivity. The PM9501 also integrates Datalogic’s 3GL™ feedback system, Motionix™ motion detection, and soft white LED illumination for comfort and performance.
Product Features
- 433 MHz STAR Cordless System™ for secure, long-range wireless communication
- Designed for Direct Part Marking (DPM) – ideal for industrial component tracking
- Reads laser-etched, dot-peened, and ink-printed codes on metal, plastic, and curved surfaces
- Removable 2150 mAh lithium-ion battery supports 24/7 operation with quick swaps
- Omnidirectional scanning with intuitive aiming and white illumination
- IP65-rated industrial housing; withstands drops from up to 2.0 m (6.6 ft)
- Ergonomic design with reduced wrist strain and high first-pass read accuracy
- Datalogic 3GL™ (Three Green Lights) for instant visual scan confirmation
- Compatible with USB, RS-232, RS-485, and keyboard wedge interfaces
- Configurable via Datalogic Aladdin™ software and supports OPOS/JavaPOS
Product Specifications
Specification | Details |
Scanner Type | 2D Imager for Direct Part Marking (DPM) |
Wireless Communication | 433 MHz Narrowband STAR Cordless System™ |
Battery Type | Removable Lithium-Ion 2150 mAh |
Battery Life | Over 30,000 scans per charge |
Charging Time | 4 hours (external), 10 hours (via host) |
Drop Resistance | 2.0 m (Scanner), 1.2 m (Cradle) |
Sealing Rating | IP65 – Dust and Water Resistant |
Ambient Light Tolerance | Up to 100,000 lux |
Print Contrast Ratio | Minimum 15% |
Supported Symbologies | 1D, 2D, Postal, Stacked, GS1, DPM codes |
Reading Resolution | Down to 2.5 mil (high-performance models) |
Interfaces | USB (HID, COM, OEM), RS-232, RS-485, Keyboard Wedge |
Dimensions (Scanner) | 21.2 x 11.0 x 7.4 cm |
Weight (Scanner) | 380 g |
Temperature Range | -20°C to 50°C (operation), -40°C to 70°C (storage) |
Certifications | CE, RoHS, China RoHS, R.E.A.C.H., IEC 62471 Class 1 LED |
Software Tools | Datalogic Aladdin™, JavaPOS, OPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP65
- Logistics/Warehouse
- 3 Years
- New
