Description

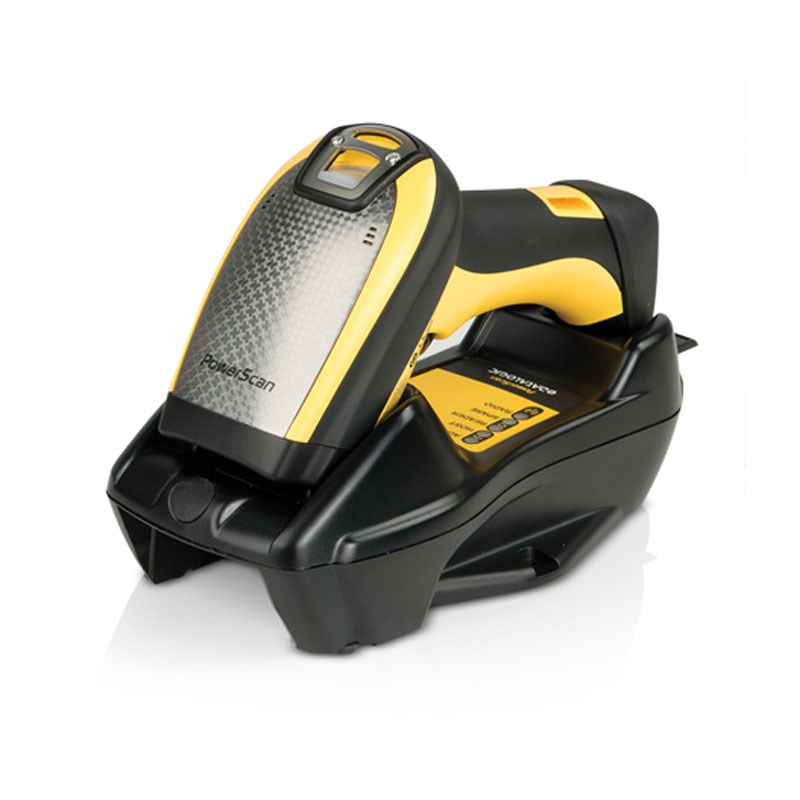

The Datalogic PowerScan PM9501 DPM EVO 433 MHz Ethernet Kit is a top-tier industrial-grade barcode scanner optimised for Direct Part Marking (DPM) applications. Built to perform in rugged environments, this cordless scanner uses 433 MHz narrowband radio frequency for reliable wireless communication with minimal interference.
Equipped with advanced decoding software, the PM9501 effortlessly reads low-contrast, laser-etched, or dot-peen barcodes on metal, plastic, or rubber. The included BC9180-433 Ethernet base station, power brick (8-0935), and power cord (6003-0940) provide seamless integration into industrial Ethernet-based systems for real-time data transfer.
With its removable lithium-ion battery, operators benefit from continuous 24/7 uptime. Combined with Datalogic’s 3GL™ visual indicators, Motionix™ sensing, and Bluetooth® 2.0 support, the scanner delivers an intuitive, reliable, and comfortable scanning experience.
Product Features
- 433 MHz Narrowband Radio Communication – Robust and interference-resistant
- Designed for DPM Applications – Reads etched, peened, and laser-marked codes
- Complete Ethernet Kit – Includes scanner, BC9180-433 base, power brick & cord
- Removable 2150 mAh Battery – Enables quick swaps for uninterrupted scanning
- 3GL™ Technology – Visual and audio confirmation with Green Spot and dual LEDs
- IP65 Protection Rating – Withstands dust, water, and harsh industrial conditions
- Bluetooth® 2.0 Compliance – Supports HID and SPP profiles for device flexibility
- Comfortable Ergonomics – Balanced design for prolonged usage
- Motionix™ Technology – Automatically detects movement for seamless transitions
- Compatible with Datalogic Aladdin™, OPOS™, JavaPOS™, remote management tools
Product Specifications
Specification | Details |
Model | PowerScan PM9501 DPM EVO, 433 MHz Ethernet Kit |
Radio Communication | 433 MHz Narrowband |
Scanner Type | Industrial 2D Area Imager |
Battery | 2150 mAh Lithium-Ion, Removable |
Reads per Charge | Over 30,000 scans |
Drop Resistance | 2.0 m (6.6 ft) to concrete |
Sealing | IP65 – Dust and Water Resistant |
User Feedback | 3GL™ – Green Spot, Dual LEDs, Loud Beeper |
Supported Barcodes | 1D, 2D, Postal, Stacked, DPM, GS1, PDF417, QR, Data Matrix |
Light Source | White LEDs with 630–680 nm VLD aiming |
Interfaces | Ethernet via BC9180-433, USB, RS-232, Keyboard Wedge |
Motion Sensing | Yes – Motionix™ Technology |
Print Contrast Ratio | Minimum 15>#/span### |
Dimensions (Scanner) | 21.2 x 11.0 x 7.4 cm |
Weight (Scanner) | 380 g (13.4 oz) |
Temperature Range | Operating: -20°C to 50°C; Storage: -40°C to 70°C |
Humidity | 95% Non-condensing |
Environmental Tolerance | ESD: 20kV; Drop: 50 drops from 2.0 m |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- Bluetooth
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP65
- Logistics/Warehouse
- 3 Years
- New
