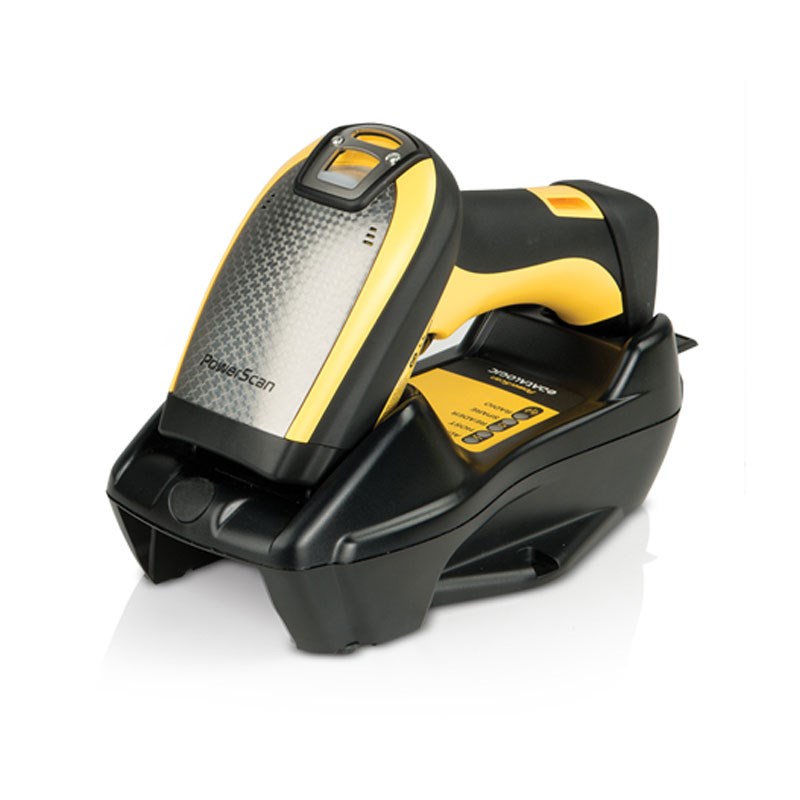

Datalogic PowerScan PM9501 DPM EVO Industrial Barcode Scanner – 910 MHz, Removable Battery, Non-EU Version

Wireless, Rugged, Datalogic, Handheld, 2D, Serial/RS232, Bluetooth, Standard Range, Yellow, Rugged/Heavy Duty, Industrial, IP65, Logistics/Warehouse, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +44 174 960 8334
PM9501-DPM910RB

Need Help

Choosing a Product
+44 174 960 8334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic PowerScan PM9501 DPM EVO 910 MHz (Non-EU Version) is a high-performance cordless industrial scanner designed for Direct Part Marking (DPM) applications in harsh environments. Featuring narrowband 910 MHz radio communication, this non-EU model is ideal for markets using alternative frequency bands outside of Europe.

Built with Datalogic’s advanced area imaging technology, it enables omnidirectional decoding of even the most challenging etched, peened, or laser-marked barcodes on metal, plastic, and other rugged surfaces. With its removable lithium-ion battery, operators can enjoy continuous scanning across shifts with minimal downtime.

This model incorporates Bluetooth® 2.0, Motionix™ movement detection, and 3GL™ feedback technology, enhancing user comfort and boosting productivity. The robust IP65-rated construction ensures long-lasting performance in industrial and warehouse environments.

Product Features

  • 910 MHz Radio Frequency – Optimised for non-EU regions with strong signal stability
  • Built for DPM Applications – Scans challenging barcodes etched or marked on tough surfaces
  • Removable 2150 mAh Battery – Fast replacement enables uninterrupted scanning cycles
  • Bluetooth® 2.0 Certified – Easily connects to other Bluetooth-enabled devices
  • Rugged Design with IP65 Rating – Resistant to dust, water, and 2 m drops onto concrete
  • 3GL™ Technology – Three Green Lights and loud beeper for instant good-read feedback
  • Motionix™ Sensing Technology – Automatically switches between hands-free and handheld modes
  • Comfort-Focused Build – Ergonomically shaped for reduced fatigue during long operations
  • Powerful Datalogic Decoding – Supports all standard 1D, 2D, stacked, and postal barcodes
  • Software Ready – Compatible with Datalogic Aladdin™, OPOS™, JavaPOS™, and remote management tools


Product Specifications

Specification

Details

Model

PowerScan PM9501 DPM EVO 910 MHz (Non-EU Version)

Radio Communication

910 MHz Narrowband

Scanner Type

Industrial 2D Area Imager

Battery

Removable 2150 mAh Lithium-Ion

Reads per Charge

30,000+ scans

Bluetooth

Bluetooth 2.0, Class 1 or Class 2 Configurable

Drop Resistance

Withstands 50 drops from 2.0 m to concrete

Sealing

IP65 (dust & water resistant)

User Feedback

3GL™ (Green Spot, Dual LEDs), Loud Adjustable Beeper

Supported Barcodes

1D, 2D, GS1, DPM, PDF417, QR, Data Matrix, Postal, Stacked

Motion Detection

Yes – Motionix™ Technology

Light Source

White LED Illumination with Red Aiming VLD

Image Capture

Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2

Interfaces

RS-232, RS-485, USB COM, USB HID Keyboard, Keyboard Wedge

Print Contrast Ratio

Minimum 15%

Temperature Range

Operating: -20°C to 50°C; Storage: -40°C to 70°C

Humidity

95% Non-condensing

Dimensions

Scanner: 21.2 x 11.0 x 7.4 cm

Weight

380 g

Warranty

3-Year Factory Warranty



Features

Connectivity:
  • Wireless
Ruggedness:
  • Rugged
Brand:
Datalogic
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • Serial/RS232
  • Bluetooth
Scan Range:
  • Standard Range
Colour:
  • Yellow
Rugged:
  • Rugged/Heavy Duty
Usage:
  • Industrial
IP Rating:
  • IP65
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (3973-datasheet.pdf, 480 Kb) [Download]
