Description

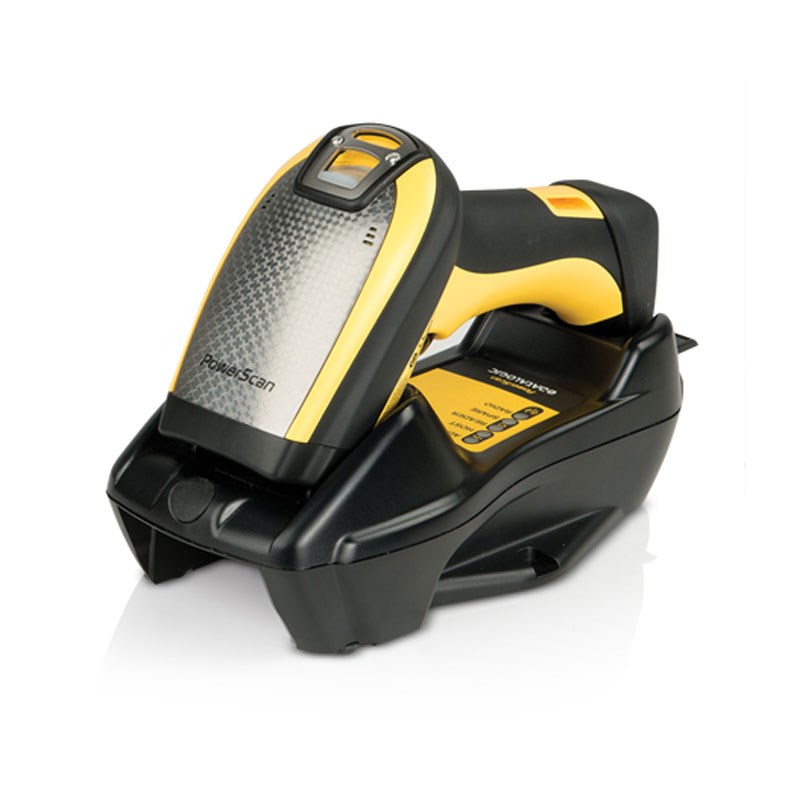

The Datalogic PowerScan PM9501 DPM Evo USB Kit is a powerful industrial cordless 2D barcode scanner designed specifically for Direct Part Marking (DPM) applications in demanding environments such as automotive, aerospace, and heavy manufacturing. This kit includes the PM9501 scanner, 433 MHz base station (BC9030-433), CAB-438 cable, 8-0935 power brick, and 6003-0940 UK power cord, delivering a comprehensive, ready-to-use scanning solution.
Equipped with Datalogic's state-of-the-art area imaging technology, the PM9501 delivers snappy omnidirectional reading, even on low-contrast and curved surfaces. The 433 MHz narrowband radio communication ensures secure, interference-free wireless connectivity with long-range performance.
Built for continuous use, the scanner features a removable battery, quick-swap capability, and IP65 sealing for resistance to dust and water. With Datalogic’s 3GL™ technology, operators receive clear visual feedback on every successful scan, enhancing productivity in mission-critical workflows.
Product Features
- Optimised for Direct Part Marking (DPM): reads laser-etched, dot-peened, and inkjet-marked codes
- 433 MHz narrowband wireless connectivity via base station (BC9030-433)
- Removable Li-Ion battery allows fast hot-swapping for 24/7 operations
- Includes CAB-438 interface cable, power brick, and UK power cord
- Omnidirectional 1D/2D barcode scanning with quick, accurate decoding
- Datalogic 3GL™ (Three Green Lights) visual feedback and loud beeper
- Rugged IP65-rated housing withstands dust, water, and repeated 2m drops
- Ergonomic design for comfort in high-volume scan environments
- Compatible with Datalogic Aladdin™, OPOS, and JavaPOS software
- Backed by 3-Year Datalogic Factory Warranty
Product Specifications
Specification | Details |
Scanner Type | Industrial Cordless 2D Imager (DPM Evo) |
Radio Frequency | 433 MHz Narrowband |
Radio Range (Open Air) | Up to 100 m (depending on environment and antenna setup) |
Decoding Capability | 1D, 2D, Postal, Stacked, GS1, DPM Codes |
Image Capture | Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
Illumination | Soft White LEDs; Aiming: 630–680 nm VLD |
Drop Resistance | 2.0 m onto concrete (Scanner), 1.2 m (Cradle) |
Sealing Rating | IP65 – Dust and Water Resistant |
Battery | Lithium-Ion 2150 mAh (Removable) |
Reads per Charge | 30,000+ scans per full charge |
Charging Time | 4 Hours (External), 10 Hours (Host Power) |
Dimensions (Scanner) | 21.2 x 11.0 x 7.4 cm |
Weight (Scanner) | 380 g |
Interfaces via Base Station | USB (OEM, HID, COM), RS-232, RS-485, Keyboard Wedge |
Temperature Range | -20°C to +50°C (Operating), -40°C to +70°C (Storage) |
Humidity | 95% (non-condensing) |
Ambient Light | Tolerates up to 100,000 lux |
Certifications | RoHS, REACH, China RoHS, CDRH Class II, IEC 60825 Class 2, IEC 62471 |
Software Tools | Datalogic Aladdin™, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP65
- Logistics/Warehouse
- 3 Years
- New
