Description

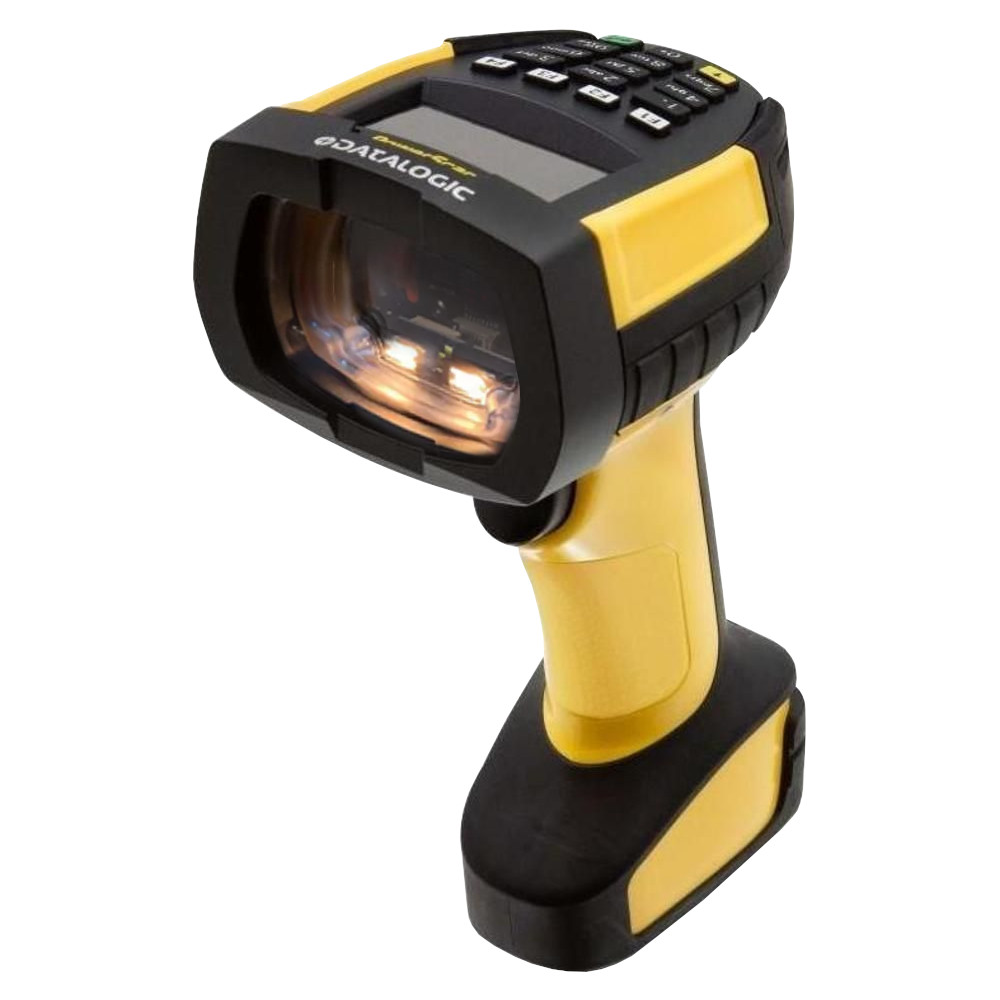

The Datalogic PowerScan PM9600-AR is a cutting-edge, auto-range industrial barcode scanner built to endure the most demanding environments. Powered by the 433 MHz STAR Cordless System™, this model offers extended-range scanning, a bright OLED display, and a 16-key keypad for interactive user input.
Designed for maximum flexibility and ruggedness, the PM9600-AR scans 1D, 2D, postal, and stacked codes over both short and long distances—making it ideal for manufacturing, logistics, and warehouse applications. Its removable 3350 mAh battery delivers up to 80,000 scans per charge, while inductive wireless charging ensures minimal maintenance and fewer downtime issues caused by damaged contacts or pins.
With IP67 sealing, a 2.5-metre drop rating, and ergonomic build, this scanner is made to boost productivity and operator comfort on the factory floor or in fast-paced warehouse workflows.
Product Features
- Auto Range (AR) scanning engine for long-distance barcode capture
- Operates on 433 MHz STAR Cordless System™ for robust wireless connectivity
- Equipped with OLED display and 16-key keypad for interactive operation
- Wireless inductive charging eliminates pins and contact wear
- IP67-rated for dust and water resistance; drop-tested up to 2.5 m
- Reads all common 1D, 2D, postal, stacked, and Digimarc® codes
- Up to 80,000 reads per charge with a high-capacity 3350 mAh Li-ion battery
- Advanced motion-sensing with Datalogic Motionix™ for intuitive operation
- Datalogic 3GL™ and Green Spot technology provides visual good-read feedback
- Modular cradle system supports USB, RS-232, and Ethernet interface expansion
Product Specifications
Specification | Details |
Model | PM9600-AR (Auto Range) |
Wireless Technology | Datalogic STAR Cordless System™, 433 MHz |
Radio Range (Open Air) | Up to 150 m (low speed), 100 m (high speed) |
Display | 1.8" OLED graphic display |
Keypad | 16-Key user-configurable keypad |
Battery Type | Removable Lithium-Ion, 3350 mAh |
Reads per Charge | Up to 80,000 |
Charging Method | Wireless inductive charging |
Scan Engine | Auto Range 1D/2D Imager |
Resolution | 1D: 2.5 mil, 2D: 4 mil |
Environmental Rating | Scanner IP67 / Cradle IP65 |
Drop Resistance | 2.5 m @ 20°C, 2.0 m @ -20°C |
Ambient Light Tolerance | 0 – 100,000 lux |
Interfaces via Cradle | USB, RS-232, Ethernet (modular plug-in options) |
Feedback Indicators | Beeper, Vibration, Green Spot, 3GL™ LEDs |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Weight | 455 g |
Operating Temperature | -20°C to 50°C |
Software Utilities | Datalogic Aladdin™, JavaPOS, OPOS (free download) |
Warranty | 3-Year Factory Warranty |
