Description

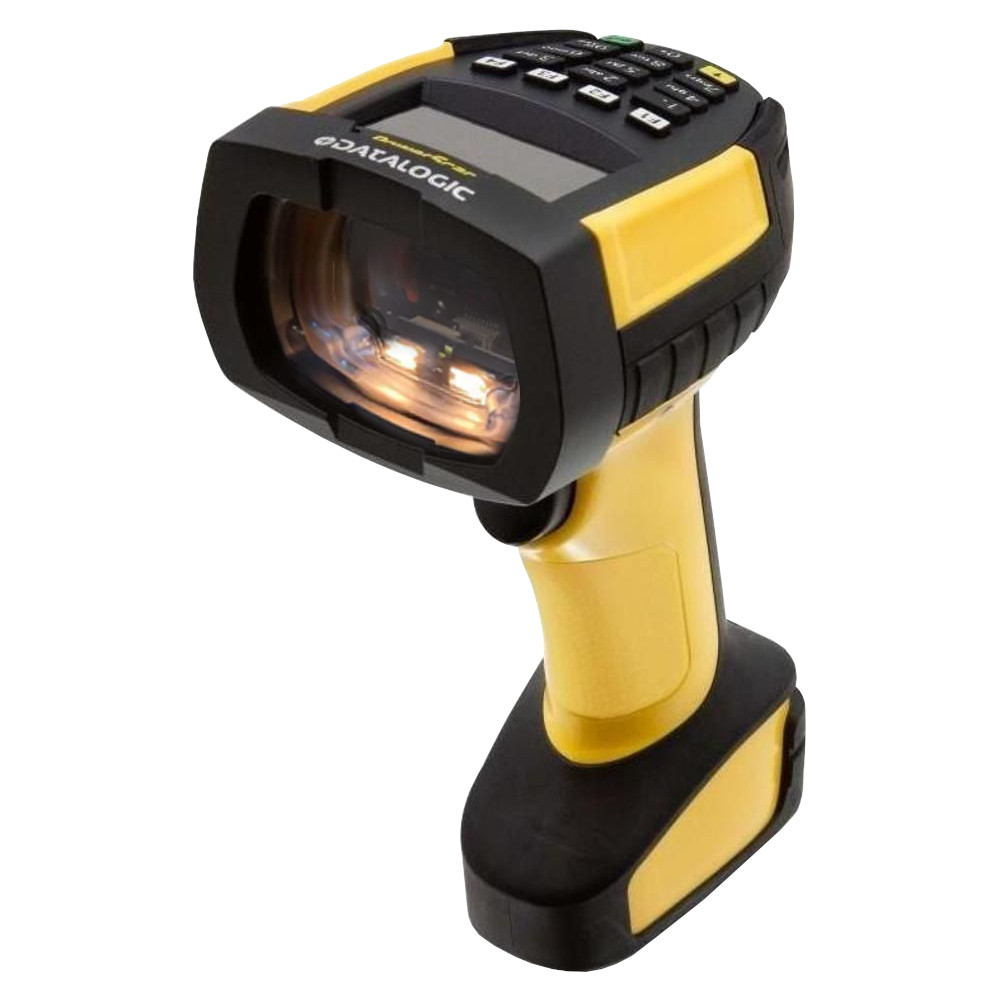

The Datalogic PowerScan PM9600-AR is a cutting-edge Auto Range industrial barcode scanner, built for exceptional performance in high-demand environments such as warehouses, distribution centres, and manufacturing facilities. Equipped with 433 MHz STAR Cordless System™ and a rugged IP67-rated housing, this cordless scanner provides unparalleled range, reliability, and durability for extended scanning applications.
Designed with ultra-rugged construction and ergonomic balance, the PM9600-AR delivers effortless point-and-scan operation—even in extreme environments. With support for 1D, 2D, stacked, and postal codes, and a modular cradle system with USB interface, it’s ideal for organisations requiring accurate long-distance scanning, minimal maintenance, and streamlined wireless workflows.
Product Features
- Auto Range scanning for reading barcodes from extremely close to several metres away
- 433 MHz STAR Cordless radio with up to 150 m open-air range
- Rugged IP67/IP65-rated design withstands drops, dust, water, and industrial conditions
- Removable 3350 mAh battery with up to 80,000 scans per charge
- Wireless inductive charging eliminates contact wear and reduces downtime
- Supports 1D, 2D, postal, stacked, and Digimarc codes
- Motionix™ technology activates scanner based on movement
- Feedback via 3GL™ (Three Green Lights), beeper, LED and vibration
- Modular BC9630 cradle with USB interface and multi-connection support
- Ideal for shipping, pallet tracking, large-scale inventory, and end-of-line applications
Product Specifications
Specification | Details |
Model | PowerScan PM9600-AR |
Radio Frequency | 433 MHz STAR Cordless System™ |
Wireless Range (Open Air) | 150 m (low speed) / 100 m (high speed) |
Battery Type | Removable Lithium-Ion 3350 mAh |
Battery Life | Approx. 80,000 scans per charge |
Charging | Inductive wireless via cradle |
Scan Engine | Auto Range (AR) Imager – 1D/2D/Stacked/Postal/Digimarc |
Resolution | 1D: 2.5 mil, 2D: 4 mil |
Interfaces (via cradle) | USB, RS-232, Ethernet, Industrial Ethernet (modular) |
IP Rating | IP67 (Scanner), IP65 (Cradle) |
Drop Resistance | 2.5 m @ 20°C; 2.0 m @ -20°C |
Ambient Light Tolerance | Up to 100,000 lux |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Weight | 425 g |
Operating Temperature | -20°C to 50°C |
Storage Temperature | -40°C to 70°C |
Feedback Mechanisms | 3GL™, Beeper, Green Spot, LEDs, Vibration |
Compliance | RoHS, REACH, IEC 62471, IEC 60825, China RoHS |
