Description

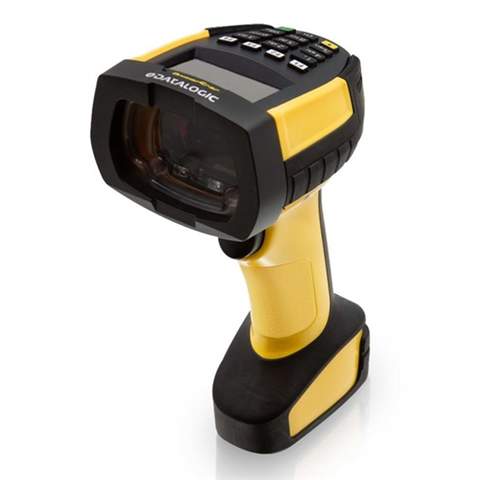

The Datalogic PowerScan PM9600-AR USB Kit delivers premium industrial-grade scanning with extended Auto Range capability for long-distance barcode reading. Designed for challenging environments, this cordless 433 MHz scanner features Datalogic’s STAR Cordless System™, a 1.8" OLED display, and a 16-key keypad, offering unmatched versatility for dynamic workflows in manufacturing, warehousing, and logistics operations across the UK.
Thanks to its ultra-rugged IP67 housing, inductive wireless charging, and removable high-capacity 3350 mAh battery, the PM9600-AR is built for maximum uptime and long shifts. This kit includes the PM9600-DKAR433RB scanner, BC9630-433 USB cradle, USB cable (CAB-552), and UK power accessories, offering a complete out-of-the-box solution for scanning at both near and far ranges.
Product Features
- Auto Range imager reads barcodes from close-up to over 2 metres away
- Cordless 433 MHz operation with STAR Cordless System™ for extended radio range
- Equipped with 1.8” OLED display and 16-key keypad for real-time interaction
- Rugged IP67-rated design withstands harsh industrial conditions
- Advanced wireless inductive charging for zero-contact reliability
- Reads 1D, 2D, postal, stacked, and Digimarc® barcodes
- Long-lasting 3350 mAh removable battery – up to 80,000 reads per charge
- Features Motionix™ motion sensing, 3GL™ feedback, and tactile beeper/vibration
- USB interface via BC9630-433 base and CAB-552 USB cable included
- Ideal for warehouse picking, dock doors, sub-assembly, and quality control
Product Specifications
Specification | Details |
Model | PowerScan PM9600-DKAR433RB |
Scan Engine | Auto Range 1D/2D Imager |
Wireless Frequency | 433 MHz (Datalogic STAR Cordless System™) |
Display | 1.8" OLED graphic display |
Keypad | 16-key configurable |
Battery | 3350 mAh Lithium-Ion, removable |
Reads per Charge | Up to 80,000 |
Charging Method | Wireless inductive via BC9630-433 cradle |
Kit Interface | USB (CAB-552 included) |
IP Rating | Scanner: IP67 |
Drop Resistance | 2.5 m @ 20°C |
Weight | 455 g |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Imager Sensor | 1280 x 800 pixels |
Light Source | Aiming: 630–680 nm VLD |
Print Contrast | Minimum 15% |
Reading Indicators | 3GL™, Green Spot, beeper, vibration, dual good-read LEDs |
Resolution (Max) | 1D: 2.5 mil |
Interfaces Supported | USB (included), RS-232, Ethernet, Keyboard Wedge |
Environment | Temp: -20°C to 50°C |
Warranty | 3-Year Factory Warranty |
