Description

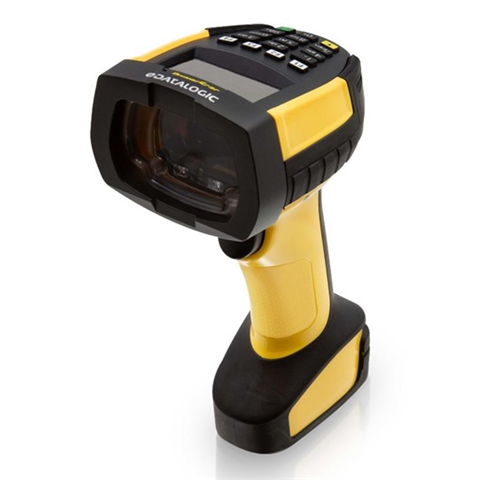

The Datalogic PowerScan PM9600-D sets a new benchmark in rugged wireless data collection, delivering powerful scanning capability in the harshest industrial environments. Equipped with 910 MHz STAR Cordless System™, a vivid 1.8" OLED display, and a 4-key configurable keypad, this high-performance scanner provides unmatched flexibility, productivity, and ergonomic comfort.
Designed for use in warehouses, manufacturing floors, and logistics centres, the PM9600-D features inductive wireless charging for maximum durability, IP67/IP65 sealing, and an ultra-rugged build capable of withstanding repeated drops. The cordless design allows long-range communication and seamless mobility in demanding workflows. With support for 1D, 2D, stacked, and postal barcodes, this scanner is ideal for mission-critical barcode applications.
Product Features
- High-performance cordless scanner with STAR Cordless System™ (910 MHz)
- Integrated 1.8" OLED display and 4-key keypad for real-time feedback and user control
- Ultra-rugged IP67-rated housing with drop resistance up to 2.5 m
- Inductive wireless charging eliminates contact pins and enhances durability
- Reads 1D/2D barcodes, postal codes, stacked symbologies, and Digimarc
- Ergonomic centre-of-gravity design reduces operator fatigue
- Removable 3350 mAh battery supports up to 80,000 reads per charge
- Datalogic’s 3GL™ (Three Green Lights), Green Spot, vibration, and loud beeper for visual/audio feedback
- Suitable for use in manufacturing, warehousing, logistics, and shipping/receiving environments
- Compatible with RS-232, USB, Keyboard Wedge, and Ethernet interfaces (via optional cradle)
Product Specifications
Specification | Details |
Model | PowerScan PM9600-D |
Wireless Frequency | 910 MHz (STAR Cordless System™) |
Display | 1.8" OLED graphic display |
Keypad | 4 configurable keys |
Scan Engine | High Performance Imager (1D/2D) |
Battery | Removable Lithium-Ion 3350 mAh (up to 80,000 scans/charge) |
Charging Method | Inductive wireless charging via cradle (not included) |
IP Rating | Scanner: IP67 |
Drop Resistance | 2.5 m (at 20°C) |
Weight | 445 g |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Reading Technology | White LED illumination, VLD aiming light |
Resolution (Max) | 1D: 2.5 mil |
Indicators | 3GL™, Green Spot, beeper, dual LEDs, vibration |
Interfaces | RS-232, USB, Keyboard Wedge, Industrial Ethernet (via cradle) |
Operating Temp | -20°C to 50°C |
Storage Temp | -40°C to 70°C |
Light Immunity | 0 – 100,000 lux |
Certifications | China RoHS, EU RoHS, REACH, IEC 62471 (LED exempt) |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
