Description

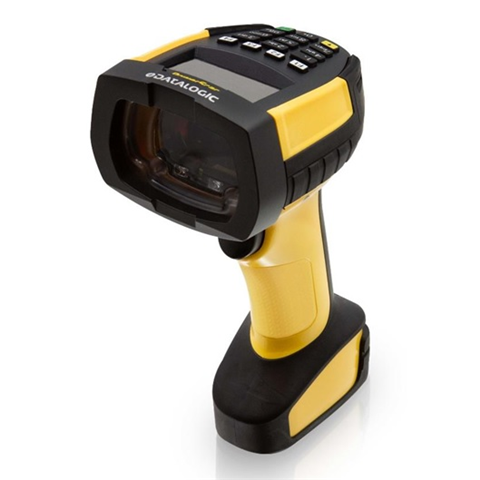

The Datalogic PowerScan PM9600-D RS-232 Kit delivers exceptional cordless barcode scanning performance built for high-demand industrial environments. Operating on 910 MHz Datalogic STAR Cordless System™, this kit includes the PM9600 High Performance scanner with a bright OLED display, 4-key keypad, BC9630-910 cradle, RS-232 cable (CAB-548), power supply (8-0935), and UK power cord (6003-0941) – offering a complete, ready-to-deploy solution.
Designed with wireless inductive charging, rugged durability (IP67/IP65), and advanced reading capabilities, this scanner enables efficient and error-free data capture across a variety of industries. It supports all major 1D/2D barcodes and operates effectively in extreme environments including cold storage, warehouses, and manufacturing floors.
Product Features
- Complete RS-232 industrial barcode scanner kit (scanner, cradle, cable, PSU & UK plug)
- Operates over 910 MHz with Datalogic STAR Cordless System™ for long-range communication
- High-performance 1D/2D scanner with fast omnidirectional reading
- 1.8" OLED display and intuitive 4-key keypad interface
- Inductive wireless charging eliminates contact points for improved durability
- 3350 mAh removable lithium-ion battery – up to 80,000 reads per charge
- Rugged construction: withstands 2.5 m drops, rated IP67 (scanner) and IP65 (cradle)
- Datalogic 3GL™ good-read feedback with LED, beeper, vibration, and Green Spot
- Perfect for shipping, sub-assembly, line inventory, and quality control
Product Specifications
Specification | Details |
Wireless Frequency | 910 MHz STAR Cordless System™ |
Radio Range (Open Air) | Up to 230 m (low speed), 180 m (high speed) |
Display | 1.8” OLED graphic display |
Keypad | 4 Configurable Keys |
Scanner Engine | High Performance 1D/2D Imager |
Battery | 3350 mAh lithium-ion, removable – ~80,000 reads per charge |
Charging | Inductive wireless charging via cradle |
Cradle Interface | RS-232 (via included cable) |
IP Rating | IP67 (scanner), IP65 (cradle) |
Drop Resistance | 2.5 m @ 20°C; 2.0 m @ -20°C |
Resolution (Max) | 1D: 2.5 mil; 2D: 4 mil |
Light Source | Aiming: 630–680 nm VLD; Illumination: White LED |
Feedback Indicators | 3GL™ LEDs, Green Spot, beeper, vibration |
Weight | 445 g |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Operating Temp. | -20°C to 50°C |
Software | Datalogic Aladdin™, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
