Description

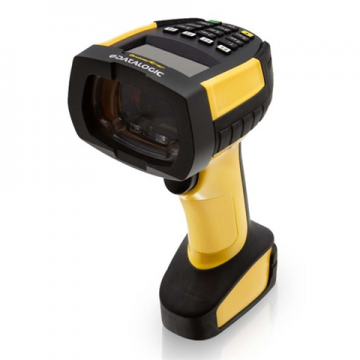

The Datalogic PowerScan PM9600-DK RS-232 Kit offers a complete industrial-grade wireless scanning solution built for maximum productivity and durability. Operating on the 433 MHz STAR Cordless System™, this cordless scanner kit includes the PM9600 High Performance scanner with OLED display and 16-key keypad, BC9630-433 cradle, RS-232 cable, and power supply kit.
Engineered for rugged industrial environments, this device combines high-performance scanning, long-range radio communication, ergonomic design, and an innovative wireless charging system. The inductive charging eliminates exposed contacts, extending scanner life even in dusty or dirty environments. Ideal for manufacturing, warehousing, and logistics operations, it supports accurate barcode capture from short to long distances, ensuring excellent first-pass read rates.
Product Features
- Complete RS-232 kit with scanner, cradle, power supply, and data cable
- Powerful omnidirectional scanning on 1D/2D, postal, and stacked codes
- Wireless communication over 433 MHz STAR Cordless System™
- OLED 1.8" graphic display with a user-configurable 16-key keypad
- Wireless inductive charging system – no exposed charging contacts
- Long-lasting removable 3350 mAh battery – up to 80,000 reads per charge
- Industrial-grade durability with IP67/IP65 sealing and 2.5 m drop resistance
- Supports RS-232 interface (via included CAB-548 cable)
- Datalogic 3GL™ feedback with LEDs, beeper, vibration, and Green Spot
- Ideal for shop floor, shipping, inventory control, and quality assurance tasks
Product Specifications
Specification | Details |
Wireless Frequency | 433 MHz STAR Cordless System™ |
Radio Range (Open Air) | Up to 150 m (low speed), 100 m (high speed) |
Display | 1.8” OLED graphic display |
Keypad | 16 configurable keys |
Scanner Engine | High Performance 1D/2D Imager |
Battery | 3350 mAh removable lithium-ion – up to 80,000 reads per charge |
Charging | Inductive wireless charging via cradle |
Cradle Interface | RS-232 (CAB-548 cable included) |
IP Rating | IP67 (scanner), IP65 (cradle) |
Drop Resistance | 2.5 m @ 20°C; 2.0 m @ -20°C |
Resolution (Max) | 1D: 2.5 mil; 2D: 4 mil |
Print Contrast | Minimum 15% |
Light Source | Aiming: 630–680 nm VLD; Illumination: White LED |
Feedback Indicators | 3GL™ LEDs, Green Spot, beeper, vibration |
Weight | 455 g |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Operating Temp. | -20°C to 50°C |
Software | Datalogic Aladdin™, OPOS, JavaPOS |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
