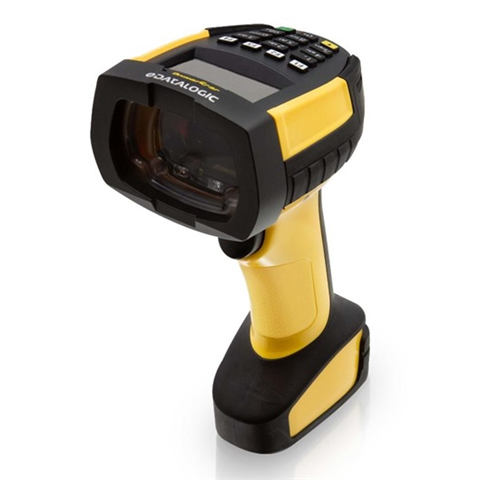

Datalogic PowerScan PM9600-DK 910 MHz Wireless Industrial Barcode Scanner Kit – 16-Key Keypad, USB, Removable Battery

Wireless, Rugged, Datalogic, Handheld, 2D, USB, Standard Range, Yellow, Rugged/Heavy Duty, Industrial, IP67, Logistics/Warehouse, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
PM9600-DKHP910RK10

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic PowerScan PM9600-DK is a next-generation ultra-rugged cordless barcode scanner designed for the toughest industrial environments. Featuring 910 MHz STAR Cordless System™ radio communication, a 1.8" OLED display, and a 16-key configurable keypad, this high-performance handheld device provides operators with real-time data entry and feedback.

Ideal for manufacturing, warehousing, and logistics applications, the PM9600-DK combines superior scanning accuracy with robust wireless communication. This USB kit includes the scanner, BC9630-910 cradle, CAB-552 USB cable, power supply, and UK power cord—offering a complete out-of-the-box solution. Enhanced with inductive wireless charging and an IP67-rated body, it withstands heavy use and harsh conditions with ease.

Product Features

  • High-performance 910 MHz cordless scanner with STAR Cordless System™
  • Integrated OLED display and 16-key keypad for enhanced data entry
  • Ultra-rugged IP67-rated housing with up to 2.5m drop resistance
  • Inductive wireless charging eliminates fragile contact pins
  • Reads all standard 1D/2D barcodes, postal and stacked codes, including Digimarc
  • Removable 3350 mAh battery supports up to 80,000 reads per charge
  • Includes cradle (BC9630-910), USB cable, power supply, and UK power cord
  • Loud beeper, vibration, and Datalogic 3GL™ indicators for visual/audio feedback
  • Modular cradle supports RS-232, USB, and Industrial Ethernet interface expansion
  • Perfect for manufacturing shop floors, warehouses, and distribution centres


Product Specifications

Specification

Details

Model

PowerScan PM9600-DK

Wireless Frequency

910 MHz (Datalogic STAR Cordless System™)

Display

1.8" OLED graphic display

Keypad

16 configurable keys

Scan Engine

High Performance Imager (1D/2D)

Battery

Lithium-Ion 3350 mAh, removable

Reads per Charge

Up to 80,000

Charging Method

Inductive wireless (via BC9630-910 cradle)

Cradle Interface

USB (CAB-552), RS-232, Ethernet (modular)

IP Rating

Scanner: IP67

Drop Resistance

2.5 m @ 20°C

Weight

455 g

Dimensions (H x L x W)

19.8 x 14.0 x 7.9 cm

Imager Sensor

1280 x 800 pixels

Light Source

Aiming: 630–680 nm VLD

Print Contrast

Minimum 15%

Reading Indicators

Beeper, 3GL™, Green Spot, vibration, dual LEDs

Resolution (Max)

1D: 2.5 mil

Interfaces Supported

USB, RS-232, Keyboard Wedge, Industrial Ethernet

Environmental

Temp: -20°C to 50°C

Certifications

China RoHS, EU RoHS, REACH, CDRH Class II, IEC 62471

Warranty

3-Year Factory Warranty



Features

Connectivity:
  • Wireless
Ruggedness:
  • Rugged
Brand:
Datalogic
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Standard Range
Colour:
  • Yellow
Rugged:
  • Rugged/Heavy Duty
Usage:
  • Industrial
IP Rating:
  • IP67
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (4000-datasheet.pdf, 280 Kb) [Download]
