Description

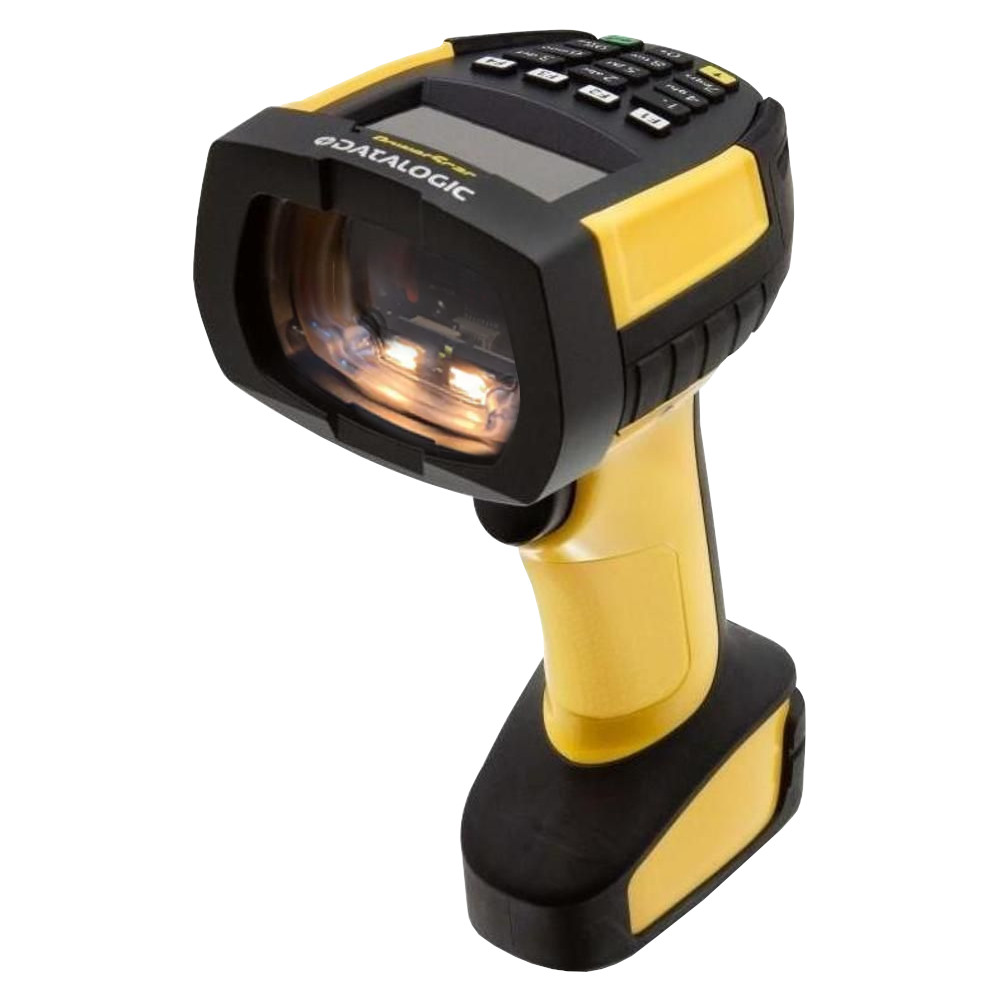

The Datalogic PowerScan PM9600-HP 433 MHz USB Kit is the ultimate cordless scanning solution for demanding industrial environments. Equipped with High Performance (HP) optics, an integrated OLED display, and a 4-key keypad, this ultra-rugged barcode scanner is built for productivity, flexibility, and durability.
Operating on Datalogic’s STAR Cordless System™ at 433 MHz, the scanner ensures reliable wireless communication, even in environments with heavy Wi-Fi interference. The included BC9630-433 base station supports USB connectivity and wireless inductive charging, which eliminates contact failures and reduces maintenance.
Its ergonomic, impact-resistant design features IP65/IP67 sealing, resistance to multiple 2.5 m drops, and up to 10 million trigger hits, making it ideal for high-volume scanning in manufacturing, logistics, and warehousing. The scanner also incorporates Motionix™ technology for automatic activation, and 3GL™ good-read indicators for seamless operation.
Product Features
- High Performance scanner reads low-contrast, damaged, or tiny barcodes
- Integrated 1.8" OLED display with 4-key keypad for feedback and operator interaction
- Reliable 433 MHz wireless communication via Datalogic STAR Cordless System™
- Includes USB cradle (BC9630-433), CAB-552 cable, power supply and cord
- Inductive wireless charging eliminates fragile connectors and reduces downtime
- Ultra-rugged with IP67-rated scanner, IP65-rated cradle, and withstands 2.5 m drops
- Rapid omnidirectional decoding of 1D, 2D, postal, and stacked barcodes
- Visual (LED), audible (beeper), and tactile (vibration) feedback with 3GL™ technology
- Motionix™ motion sensing for automatic wake-up when picked up
- Long-lasting removable battery supports up to 80,000 scans per charge
Product Specifications
Specification | Details |
Model | PowerScan PM9600-HP with Display & 4-Key Keypad |
Radio Frequency | 433 MHz STAR Cordless System™ |
Wireless Range (Open Air) | 150 m (low speed), 100 m (high speed) |
Scan Engine | High Performance 1D/2D Imager |
Display | 1.8” OLED Display |
Keypad | 4-Key Configurable Keypad |
Resolution | 1D: 2.5 mil, 2D: 4 mil |
Battery Type | Removable Lithium-Ion 3350 mAh |
Reads per Charge | Up to 80,000 |
Charging | Inductive wireless via cradle |
Interfaces (via cradle) | USB (included), RS-232, Ethernet, Industrial Protocols |
IP Rating | IP67 (Scanner), IP65 (Cradle) |
Drop Resistance | 2.5 m @ 20°C; 2.0 m @ -20°C |
Ambient Light Tolerance | Up to 100,000 lux |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Weight | 445 g (with display and keypad) |
Operating Temperature | -20°C to 50°C |
Feedback | 3GL™, Green Spot, Vibration, Beeper, Dual LEDs |
Field of View | 38° H, 24° V |
Typical Scan Range | Code 128 (2.5 mils): 6.3–11.5 cm; (40 mils): up to 242.9 cm |
Compliance | RoHS, REACH, China RoHS, CDRH Class II, IEC 62471 Exempt LED |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
