Description

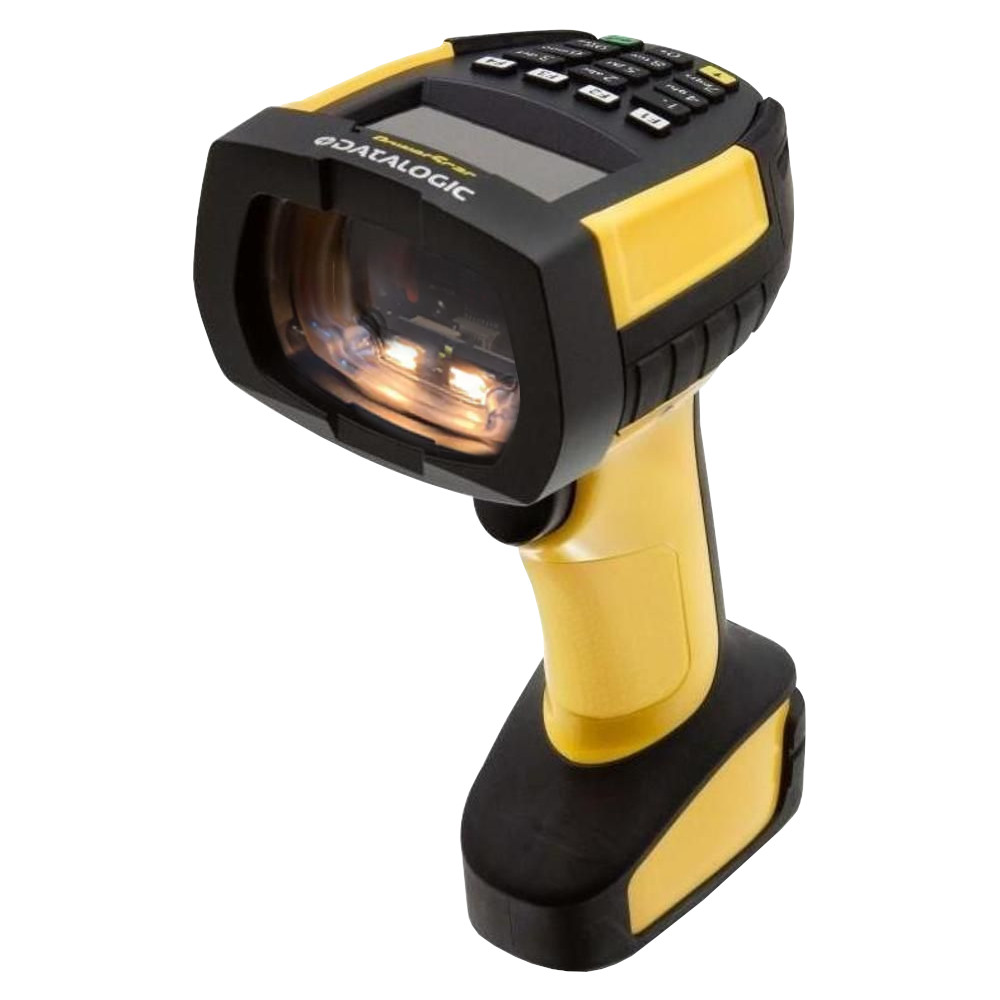

Built for high-demand industrial environments, the Datalogic PowerScan PM9600-HP 433 MHz RS-232 Kit combines cordless reliability, rugged durability, and advanced scanning performance. This High Performance (HP) model includes a 1.8" OLED display and 4-key keypad, offering real-time interaction and data confirmation during operations.
Utilising Datalogic’s STAR Cordless System™ at 433 MHz, this scanner offers reliable point-to-point communication and is perfect for environments where Wi-Fi interference is an issue. The included RS-232 cradle (BC9630-433) and CAB-548 cable enable seamless integration with industrial systems.
Designed with IP65/IP67 sealing, inductive wireless charging, and resistance to multiple 2.5 m drops, this PowerScan model ensures years of uninterrupted use, especially in manufacturing, logistics, and warehouse applications.
Product Features
- 433 MHz cordless operation via Datalogic STAR Cordless System™ for interference-free connectivity
- Includes RS-232 cradle, CAB-548 RS-232 cable, power supply (8-0935), and UK power cord (6003-0940)
- OLED display and 4-key keypad enable direct feedback and simple user interface
- Reads 1D, 2D, postal, and stacked codes, including Digimarc barcodes
- Advanced High Performance optics for small, damaged, and high-density codes
- Ultra-rugged with IP67-rated scanner, IP65-rated cradle, and 2.5 m drop resistance
- Supports 80,000 reads per charge using long-life 3350 mAh Li-Ion battery
- Wireless inductive charging ensures low maintenance and eliminates contact wear
- Feedback via Datalogic 3GL™, Green Spot, loud beeper, and vibration
- Seamlessly integrates with industrial systems using RS-232 interface
Product Specifications
Specification | Details |
Model | PowerScan PM9600-HP with Display & 4-Key Keypad |
Radio Frequency | 433 MHz STAR Cordless System™ |
Wireless Range (Open Air) | 150 m (low speed), 100 m (high speed) |
Scan Engine | High Performance 1D/2D Imager |
Display | 1.8” OLED Display |
Keypad | 4-Key Configurable Keypad |
Resolution | 1D: 2.5 mil, 2D: 4 mil |
Battery Type | Removable Lithium-Ion 3350 mAh |
Reads per Charge | Up to 80,000 |
Charging | Inductive wireless via cradle |
Interfaces (via cradle) | RS-232 (included), USB, Ethernet (optional) |
IP Rating | IP67 (Scanner), IP65 (Cradle) |
Drop Resistance | 2.5 m @ 20°C; 2.0 m @ -20°C |
Ambient Light Tolerance | Up to 100,000 lux |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Weight | 445 g (with display and keypad) |
Operating Temperature | -20°C to 50°C |
Feedback | 3GL™, Green Spot, Vibration, Beeper, Dual LEDs |
Field of View | 38° H, 24° V |
Typical Scan Range | Code 128 (2.5 mils): 6.3–11.5 cm; (40 mils): up to 242.9 cm |
Compliance | RoHS, REACH, China RoHS, CDRH Class II, IEC 62471 Exempt LED |
Warranty | 3-Year Factory Warranty |
