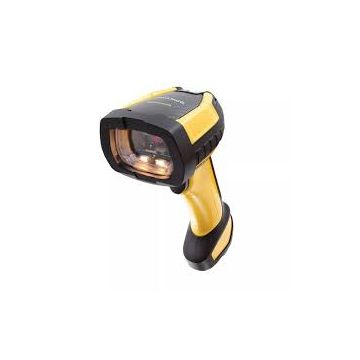

Datalogic PowerScan PM9600-HP High Performance Barcode Scanner – 910 MHz, Wireless, Removable Battery

Wireless, Rugged, Datalogic, Handheld, 2D, USB, Midrange, Yellow, Rugged/Heavy Duty, Industrial, IP67, Logistics/Warehouse, 3 Years, New
[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +441749608334
PM9600-HP910RB

Need Help

Choosing a Product
+441749608334 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Datalogic PowerScan PM9600-HP barcode scanner is a premium high-performance model built for demanding industrial and warehouse environments across the UK. Featuring advanced 910 MHz STAR Cordless System™ wireless technology and a high-performance 2D imager, this cordless scanner delivers superior long-range barcode reading in even the harshest work conditions.

With a rugged IP67/IP65-rated body, wireless inductive charging, and an ergonomic balanced design, the PM9600-HP ensures reliable operation and reduced downtime. Its removable 3350 mAh battery supports up to 80,000 reads per charge, making it ideal for extended shifts in manufacturing, logistics, and distribution.

Product Features

  • High-performance 1D/2D scanning with extended read range
  • STAR Cordless System™ (910 MHz) – robust wireless communication
  • Industrial rugged housing: IP67-rated scanner, IP65-rated cradle
  • Inductive wireless charging system eliminates wear-prone contacts
  • 3350 mAh removable battery supports long shifts (80,000 reads/charge)
  • Ergonomic and balanced for all-day use
  • Advanced feedback: beeper, vibration, 3GL™, and Green Spot
  • Durable trigger with 10 million hit life
  • Modular cradle for interface flexibility – USB, RS-232, Ethernet
  • Ideal for work-in-progress tracking, logistics, warehouse operations


Product Specifications

Specification

Details

Model

PowerScan PM9600-HP High Performance

Wireless Frequency

910 MHz STAR Cordless System™

Radio Range (Open Air)

Up to 230 m (low speed); 180 m (high speed)

Scan Engine

High Performance 1D/2D Imager

Battery

3350 mAh Lithium-Ion Removable – Up to 80,000 reads

Charging Method

Wireless (Inductive) Charging

Print Contrast

Minimum 15%

Interfaces (via base)

RS-232, USB, Ethernet, Keyboard Wedge

Protection Rating

IP67 (scanner), IP65 (cradle)

Drop Resistance

2.5 m @ 20 °C, 2.0 m @ -20 °C

Resolution

1D: 2.5 mil, 2D: 4 mil

Field of View

38° H, 24° V

Light Source

Aiming: 630–680 nm VLD; Illumination: White LED

User Feedback

3GL™, Beeper, Green Spot, Dual LEDs, Vibration

Operating Temperature

-20 to 50 °C

Dimensions (H x L x W)

19.8 x 14.0 x 7.9 cm

Weight

425 g

Software

Datalogic Aladdin™, OPOS, JavaPOS

Warranty

3-Year Factory Warranty



Features

Connectivity:
  • Wireless
Ruggedness:
  • Rugged
Brand:
Datalogic
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D
Interface:
  • USB
Scan Range:
  • Midrange
Colour:
  • Yellow
Rugged:
  • Rugged/Heavy Duty
Usage:
  • Industrial
IP Rating:
  • IP67
Industry/Vertical:
  • Logistics/Warehouse
Warranty:
  • 3 Years
Product Type/Condition:
  • New

Attachments

Brochure (4000-datasheet.pdf, 280 Kb) [Download]
