Description

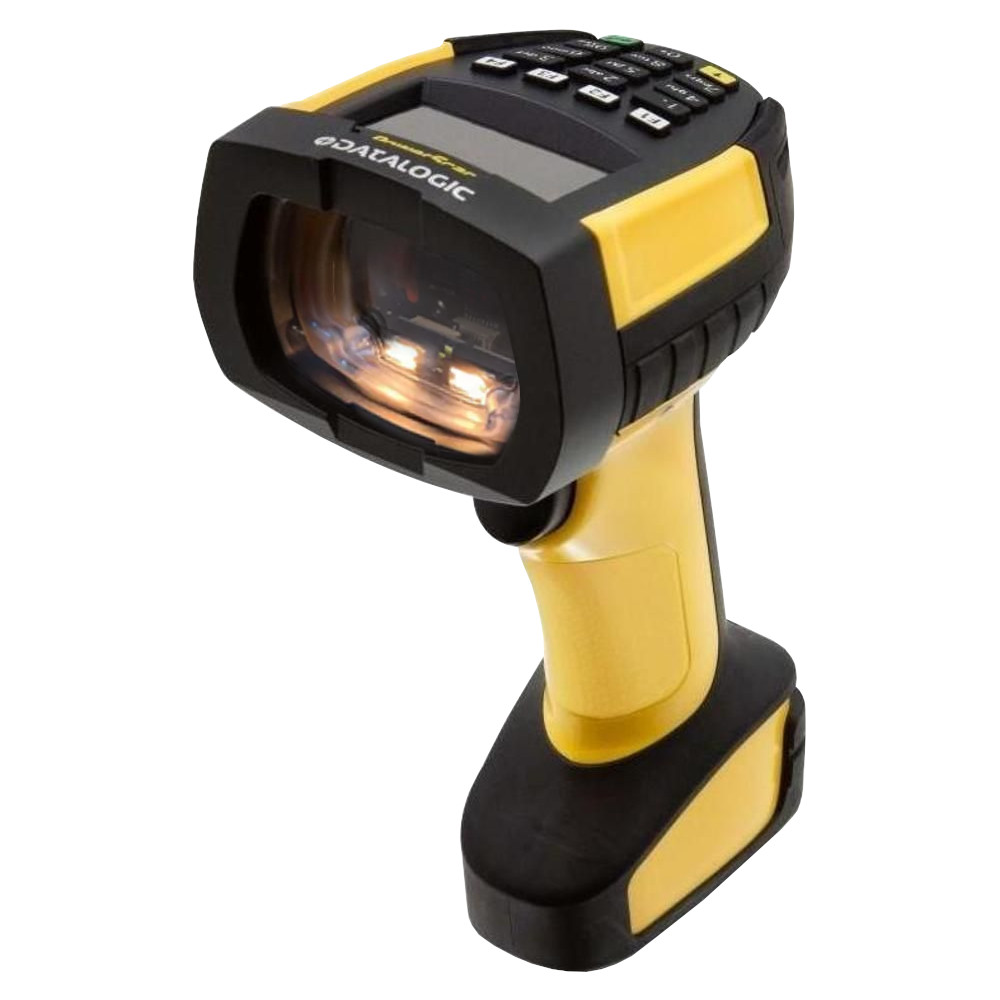

Engineered for the harshest industrial environments, the Datalogic PowerScan PM9600-HP scanner brings next-generation performance and reliability to your warehouse, factory floor, or logistics operation. Featuring a 433 MHz STAR Cordless System™ and removable long-life battery, it offers unmatched mobility and scanning accuracy for demanding applications.
This high-performance model is designed to read dense, long-range 1D and 2D barcodes even in low-contrast conditions. With Datalogic’s wireless charging system, this scanner eliminates fragile contact points, reducing downtime and maintenance costs. Its IP67 ultra-rugged design withstands extreme conditions, making it the ultimate scanning solution for continuous, heavy-duty use.
Product Features
- 433 MHz STAR Cordless communication for reliable wireless data transfer
- High performance (HP) imager for reading dense and distant 1D/2D barcodes
- Rugged IP67/IP65 housing withstands dust, water, and 2.5 m drops
- Removable 3350 mAh battery delivers up to 80,000 reads per charge
- Supports wireless inductive charging, eliminating contact wear and failures
- Equipped with Motionix™ for automatic activation based on movement
- Provides visual and haptic feedback using 3GL™ Green Spot, LEDs, and beeper
- Ideal for manufacturing, warehousing, and logistics operations
- Compatible with modular BC9600 cradle for multiple interface options
- Backed by a 3-year factory warranty for long-term peace of mind
Product Specifications
Specification | Details |
Model | PowerScan PM9600-HP |
Radio Frequency | 433 MHz (STAR Cordless System™) |
Wireless Range (Open Air) | 150 m (492 ft) low speed / 100 m (328 ft) high speed |
Battery Type | Lithium-Ion 3350 mAh (Removable) |
Battery Life | Approx. 80,000 reads per charge |
Charging Method | Wireless inductive charging |
Charge Time | 2.5 hrs (95%), 3.2 hrs (100%) |
Scan Engine | High Performance 1D/2D Imager |
Interfaces (via cradle) | USB, RS-232, Ethernet, Industrial Protocols |
Protection Ratings | IP67, IP65; Drop resistant from 2.5 m |
Feedback System | 3GL™, beeper, green spot, dual LEDs, vibration |
Display / Keypad | Not included in this model |
Decoding | 1D, 2D, postal, stacked, Digimarc (HP support) |
Resolution | 1D: 2.5 mil, 2D: 4 mil |
Operating Temperature | -20°C to 50°C |
Storage Temperature | -40°C to 70°C |
Weight | 425 g |
Dimensions (H x L x W) | 19.8 x 14.0 x 7.9 cm |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- Serial/RS232
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
