Description

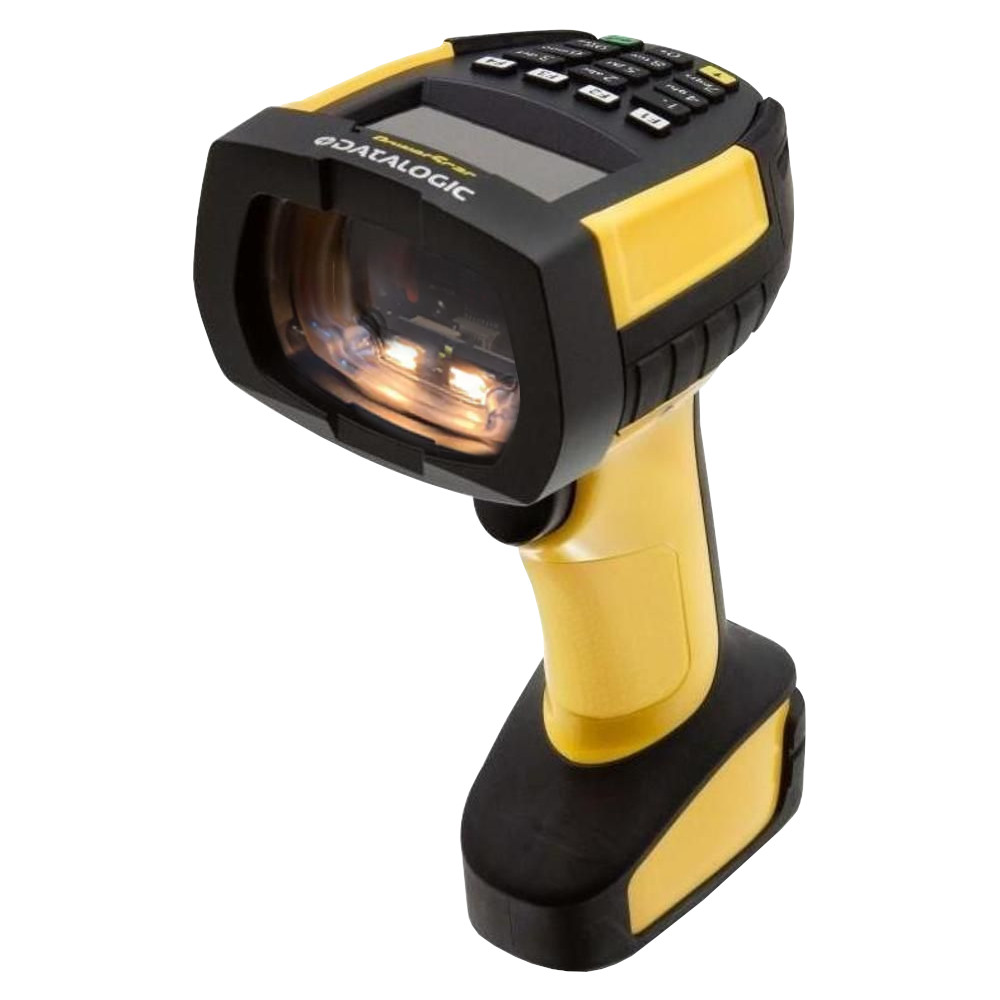

The Datalogic PowerScan PM9600-HP USB Kit delivers industry-leading performance, rugged durability, and modern cordless convenience for high-volume, high-precision barcode scanning. This industrial-grade scanner kit includes the PM9600-HP high-performance scanner, a 433 MHz STAR Cordless System™ cradle, shielded USB cable, and power accessories—ready to integrate into demanding logistics, warehousing, and manufacturing workflows.
With its wireless charging system, the PM9600-HP eliminates mechanical connectors, reducing downtime and extending product life. The high-performance (HP) imager scans tiny, dense, and long-range 1D/2D codes with exceptional accuracy. Ergonomically engineered and IP67-rated, this scanner withstands drops, dust, and water, ensuring long-term reliability in any environment.
Product Features
- Complete kit with scanner, 433 MHz cradle (BC9630-433), USB cable, PSU, and power cord
- High Performance 1D/2D scanning engine for dense and long-range barcodes
- Datalogic STAR Cordless System™ enables interference-free wireless communication
- Wireless charging system—no contacts or exposed pins
- Reads up to 80,000 barcodes per charge with fast 3.2-hour recharge
- Withstands 50 drops from 2.5 m, with rugged IP65/IP67-rated housing
- Supports Datalogic’s 3GL™ technology for visible good-read confirmation
- Modular cradle supports USB, RS-232, and industrial interfaces
- Ideal for logistics, warehousing, manufacturing, and shop floor automation
- 3-year factory warranty with EASEOFCARE support options available
Product Specifications
Specification | Details |
Model | PowerScan PM9600-HP Kit |
Radio Frequency | 433 MHz STAR Cordless System™ |
Radio Range (Open Air) | Up to 150 m (492 ft) |
Scan Engine | High Performance 1D/2D Imager |
Included Cradle | BC9630-433 Multi-Interface Cradle |
Interfaces Supported | USB, RS-232, Industrial Ethernet, Keyboard Wedge |
Charging Method | Inductive Wireless Charging |
Reads per Charge | Approx. 80,000 scans |
Charging Time | 2.5 hrs (95%), 3.2 hrs (100%) |
Battery Type | Lithium-Ion, 3350 mAh (Removable) |
Sealing Rating | IP65 and IP67; Cradle IP65 |
Drop Resistance | 50 drops from 2.5 m |
Display / Keypad | Not included in this model |
Motion Technology | Datalogic Motionix™ |
User Feedback | 3GL™, Beeper, Vibration, Green Spot |
Environmental Tolerance | -20 to 50 °C Operating; 0–95% RH; 20 kV ESD |
Decoding Capabilities | 1D/2D/Stacked/Postals/Digimarc |
Resolution | 1D: 2.5 mil; 2D: 4 mil |
Colour | Yellow/Black |
Dimensions | 19.8 x 14.0 x 7.9 cm |
Weight | 425 g |
Warranty | 3-Year Factory Warranty |
Features
- Wireless
- Rugged
- Handheld
- 2D
- USB
- Standard Range
- Yellow
- Rugged/Heavy Duty
- Industrial
- IP67
- Logistics/Warehouse
- 3 Years
- New
